ENGINE
2.9

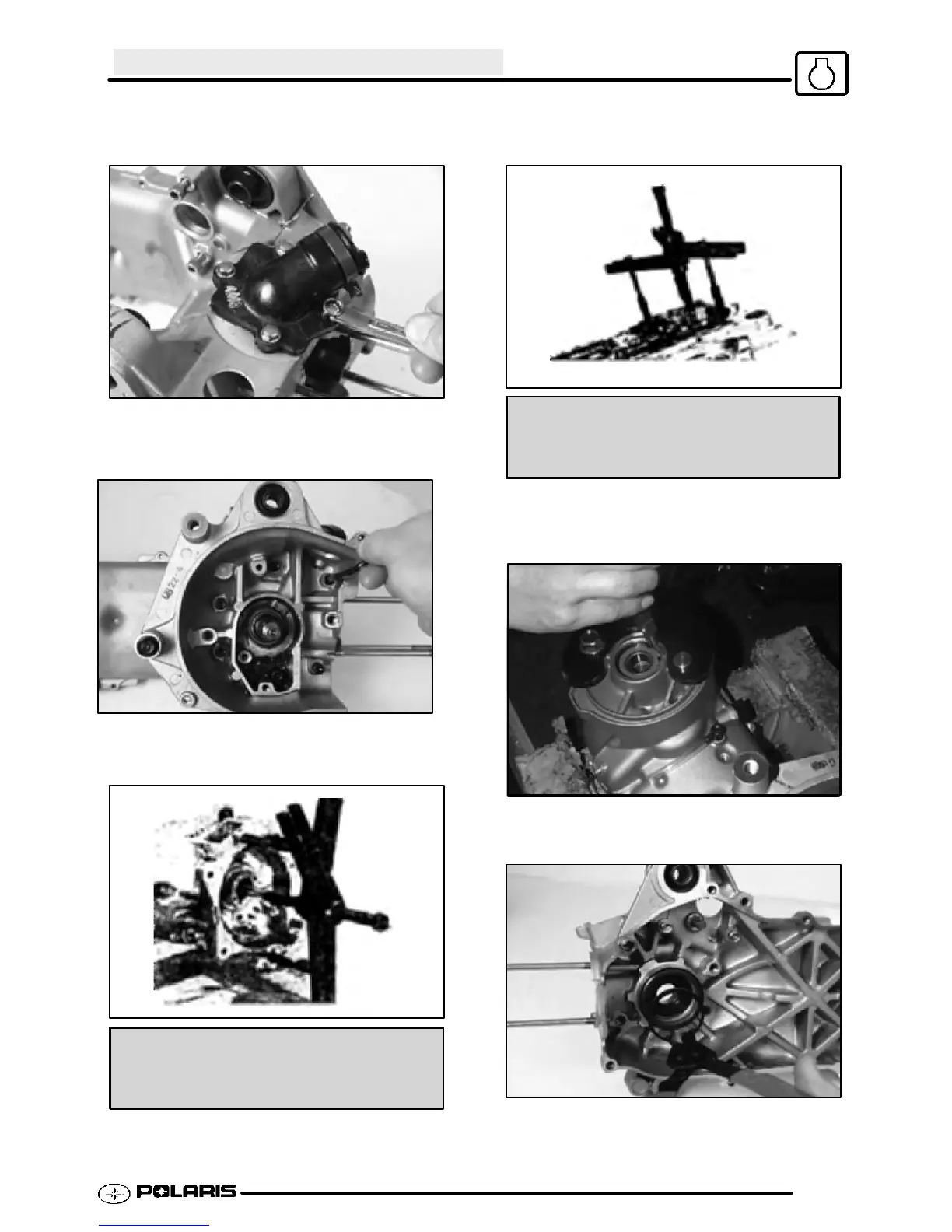

27. Remove the intake manifold and reed valve
assembly. Replace all gaskets.
Crankcase Separation
28. Remove all of the bolts from the crankcase to split
the case.
29. Use the crankcase separating tool to disassemble
the right and left crankcase halves.
Crankcase Separating Tool:
(PN 0450700)
30. Use the crankshaft removal tool to remove the
crankshaft.
Crankshaft Removal Tool:
(PN 0450697)
31. Remove the external snap ring on the output shaft
bearing and remove the oil seal. Replace the
seals or bearing as needed.
32. Remove the external snap ring to remove the
crankshaft bearing.
