ENGINE
2.21

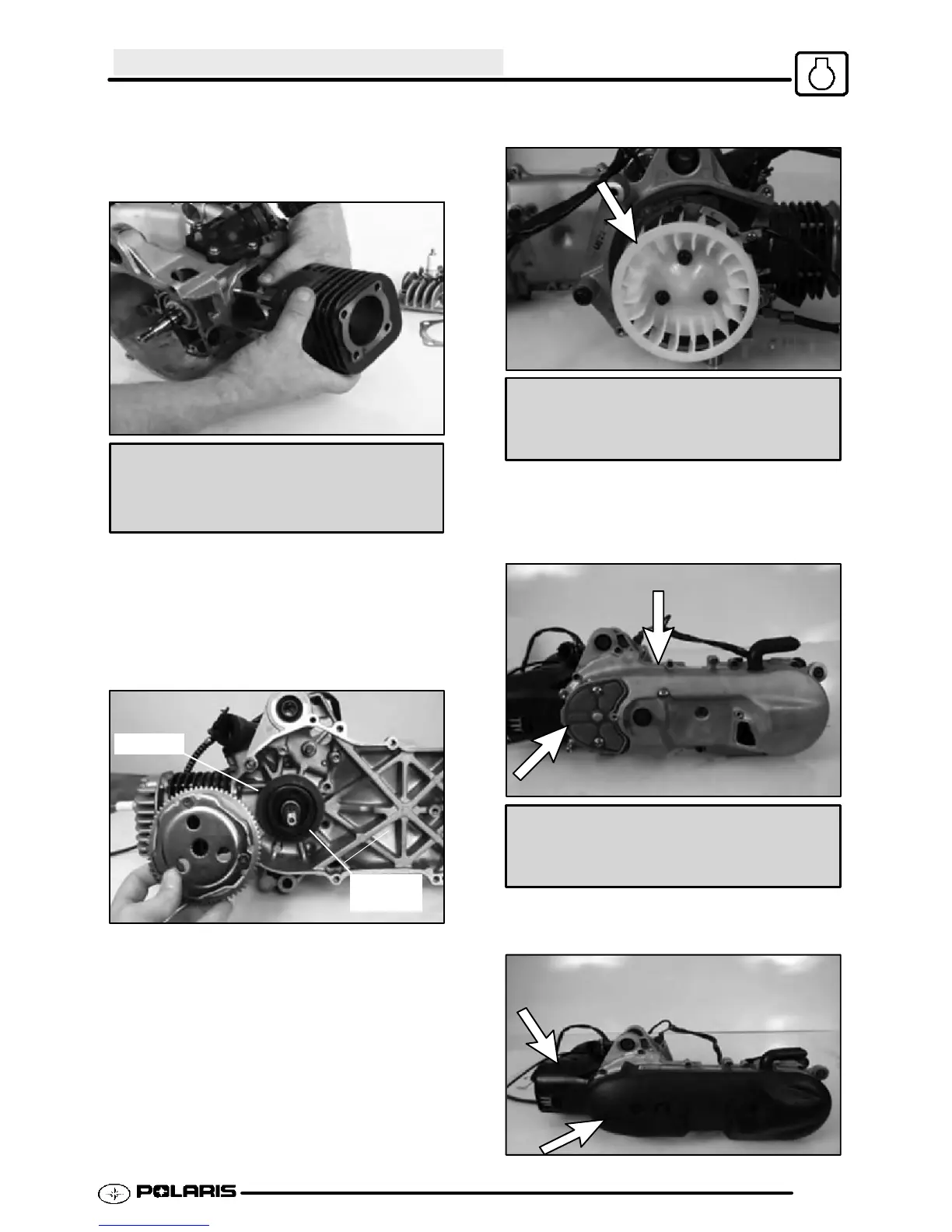

16. Make sure cylinder surfaces are clean and free
from debris. Install the cylinder gasket, cylinder,
cylinder head gasket, and cylinder head. Torque
the cylinder head nuts to specification.
Cylinder Head Nut Torque:
14 ft.lbs. (19 Nm)
17. Install new spark plug. The spark plug gap should
be .024--.028” (.6--.7 mm).
Starter Wheel Installation
18. Install the washer and needle bearing. Carefully
install the starter wheel onto the crankshaft.
Washer
Needle
Bearing
19. Install the fan. Torque the fan bolts to specification.
Fan Bolt Torque:
84 in.lbs. (9.5 Nm)
20. Install a new crankcase cover gasket, grommets,
and crankcase breather tube. Install the air filter
and the crankcase cover. Torque the crankcase
bolts to specifications.
Crankcase Cover Bolt Torque:
84 in.lbs. (9.5 Nm)
21. Install the cylinder air shroud and deflector. Install
the plastic crankcase cover.
