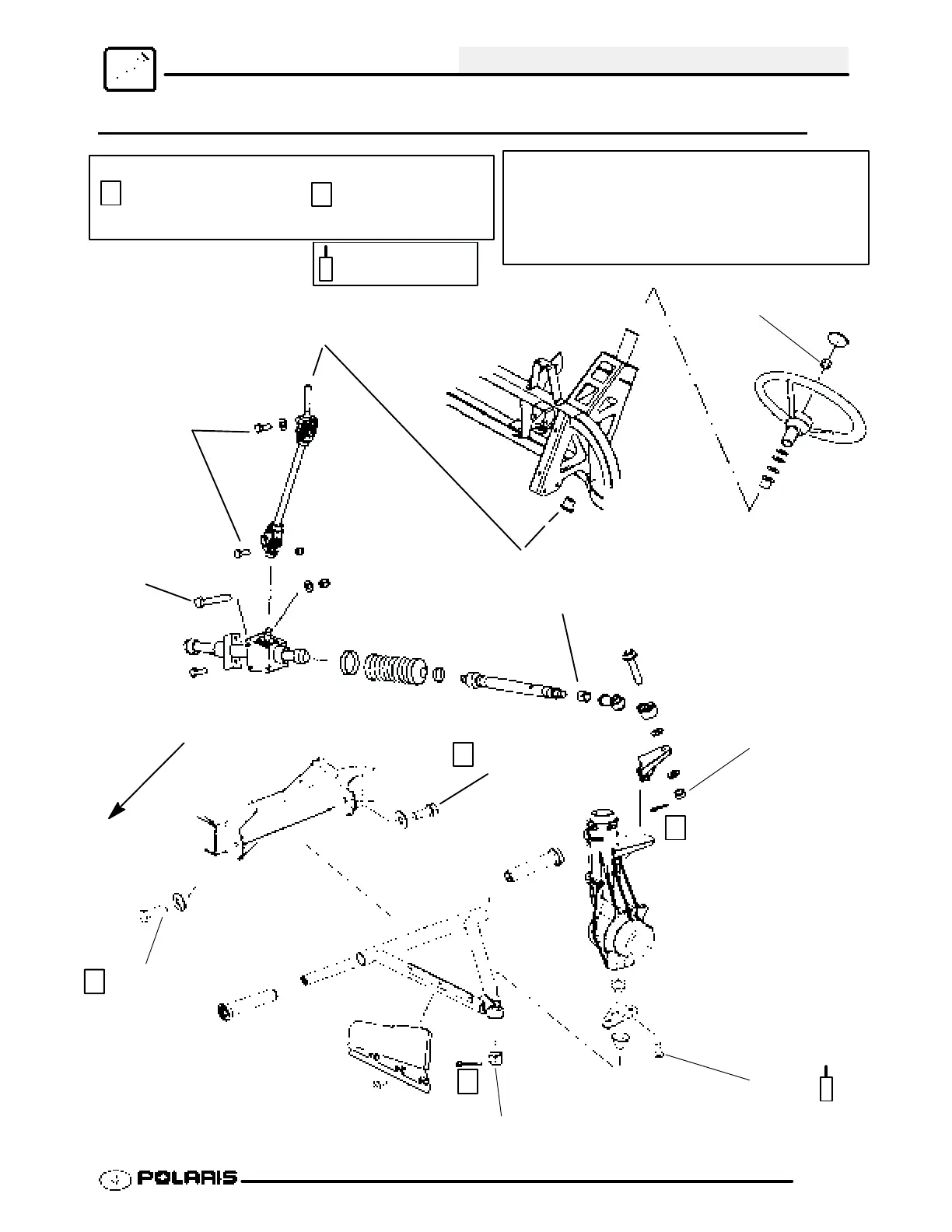

A--ARM/STRUT ASSEMBLY EXPLODED VIEW (All MODELS)
Always use new bolts
upon reassembly
Always use new
cotter pins upon
reassembly.
8 ft. lbs.
(11 Nm)
25 ft. lbs.
(35 Nm)
30 ft. lbs.
(41.4 Nm)
1
2
2
2
1
Front
40--45 ft. lbs.
(54--61 Nm)
25--30 ft. lbs.
(34--41Nm)
30 ft. lbs.
(41.4 Nm)
1
12--14 ft. lbs.
(16--19 Nm)
15--22 ft. lbs.
(20--30 Nm)
40 ft. lbs.
(54 Nm)
NOTE: Refer to Page 5.10
for Steering Component
Identification.
NOTE: To avoid damage to the tie rod ends and
other steering components, be sure to install tie rod
end bolts in the proper direction. The steering post
arm bolt (B) points up; the rod end bolts (A) point
down. Be sure inner rod ends are placed between
the steering post arms.
Apply Loctitet 242
242
242
