BODY/STEERING/SUSPENSION
5.16

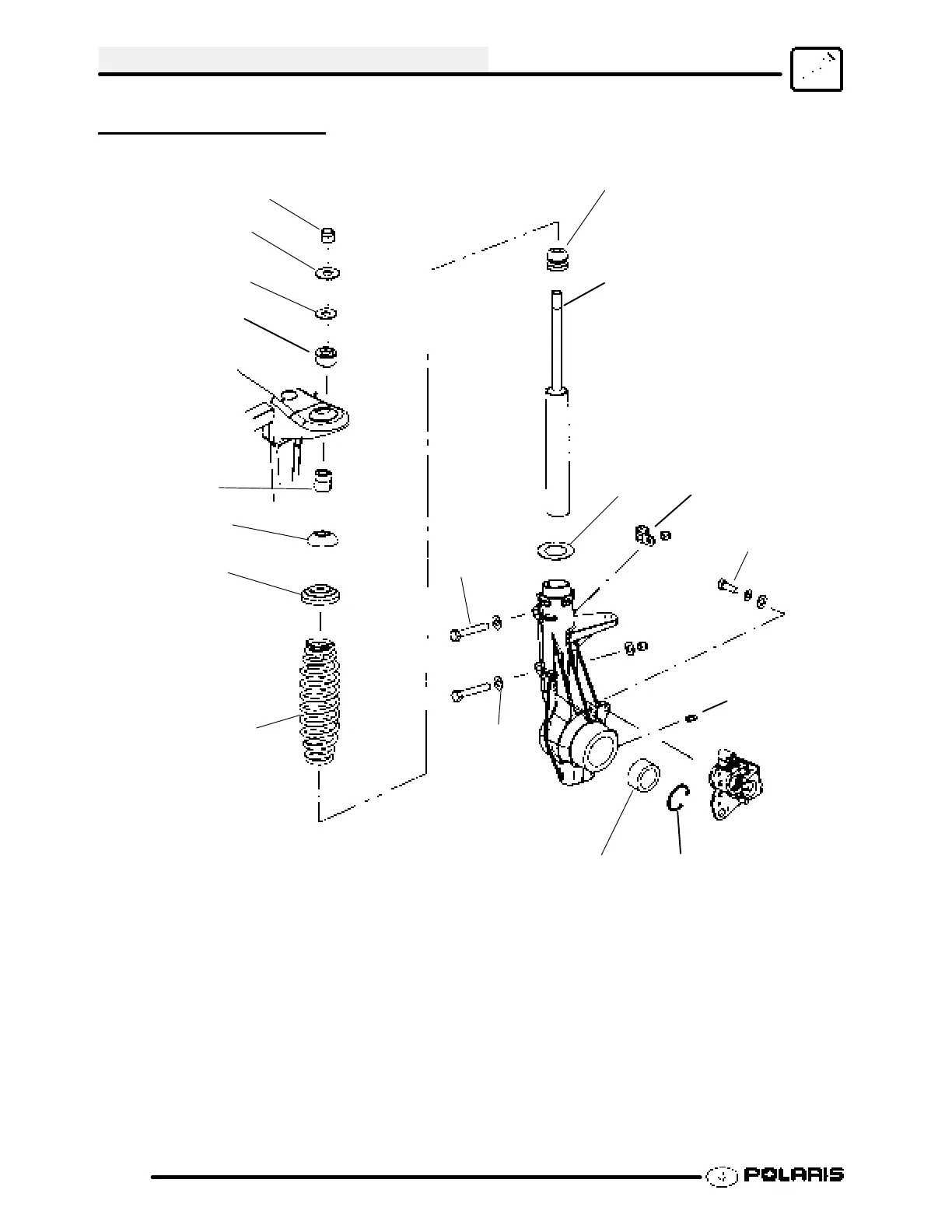

STRUT ASSEMBLY
NOTE: Grease fitting (2) location. Check lubrication guide for recommended service intervals.
Nut
15 ft. lbs.
(21 Nm)
18 ft. lbs.
(25 Nm)
Bearing
W asher
Top Pivot Ball
Bottom Pivot Ball
W asher
Spacer Rubber
Spring Retainer
Spring
Bolt
Spacer
Strut Bumper
Front Strut
W asher
Clamp
(2)
Retaining Ring
