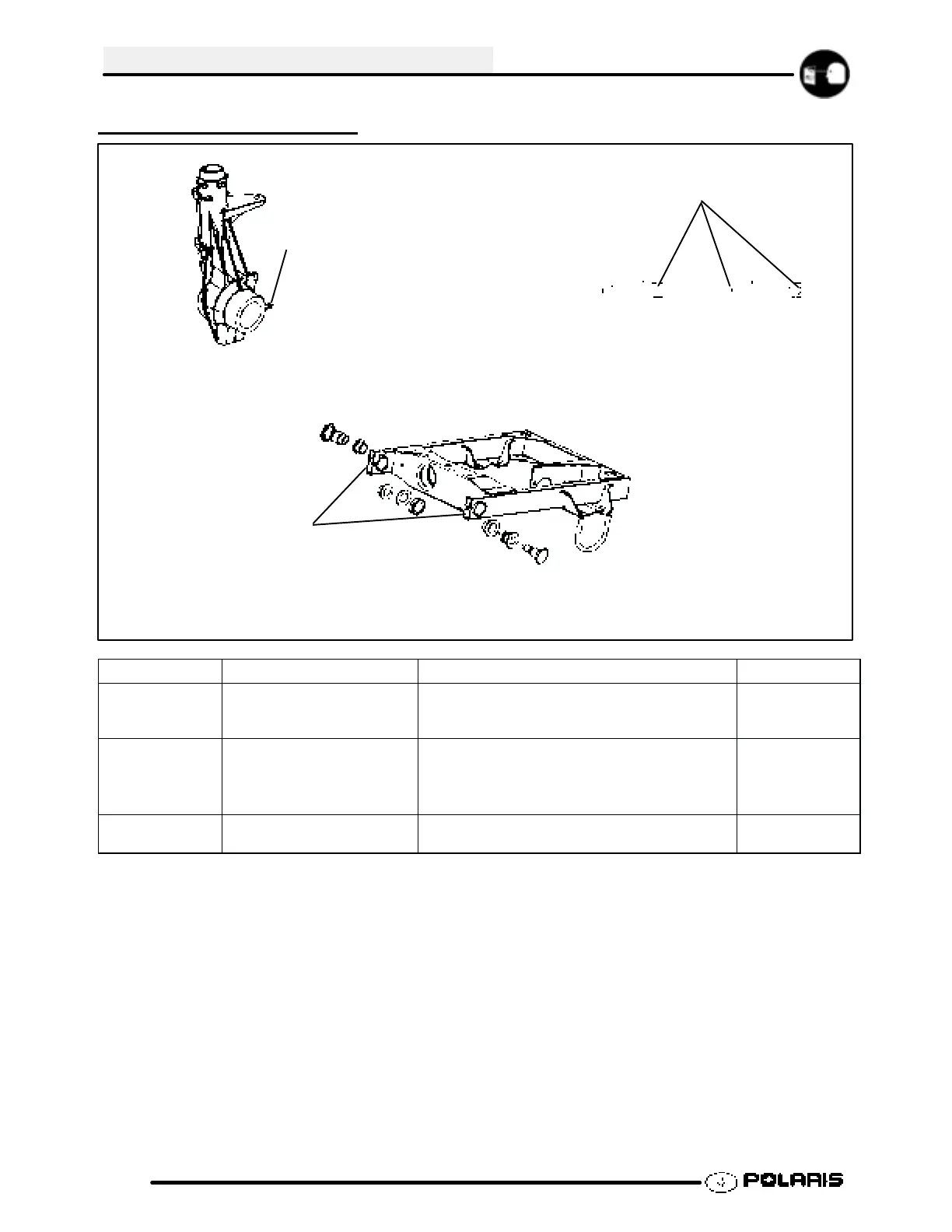

LUBRICATION, CONT.
11. Hub Strut
Assembly
13. Swing
Arm
Pivot
Front Hubstrut
Swingarm
Mid Angle Driveshaft (6x6)
12. Mid Axle Drive Shaft
Item Lube Rec. Method Frequency*
11. Hubsrut As-
sembly (Both
Sides)
Polaris All Season Grease
(PN 2871423)
Locate grease fitting on the underside of the hub-
strut assembly and grease with grease gun.
Semi Annually¡
12. Mid Axle
Drive Shaft (Both
Driveshafts) (6x6)
Polaris All Season Grease
(PN 2871423)
Locate grease two grease fittings on both ends
joints of driveshaft and grease with grease gun.
Locate grease fitting in center of driveshaft and
grease with grease gun.
Semi Annually¡
13. Swing Arm
Pivot
Polaris All Season Grease
(PN 2871423)
Locate grease fitting on inside of the swing arm
pivot.
Semi Annually¡
* More often under severe use, such as operated in water or under severe loads.
¡ Semi-annually or 50 hours of operation (refer to Maintenance Schedule for additional information)
© Annually or 100 hours of operation (refer to Maintenance Schedule for additional information)
¢ Grease conforming to NLGI No. 2, such as Polaris Premium All Season Grease, Conoco Superlube M or
Mobilegrease Special
