GENERAL INFORMATION
2.12

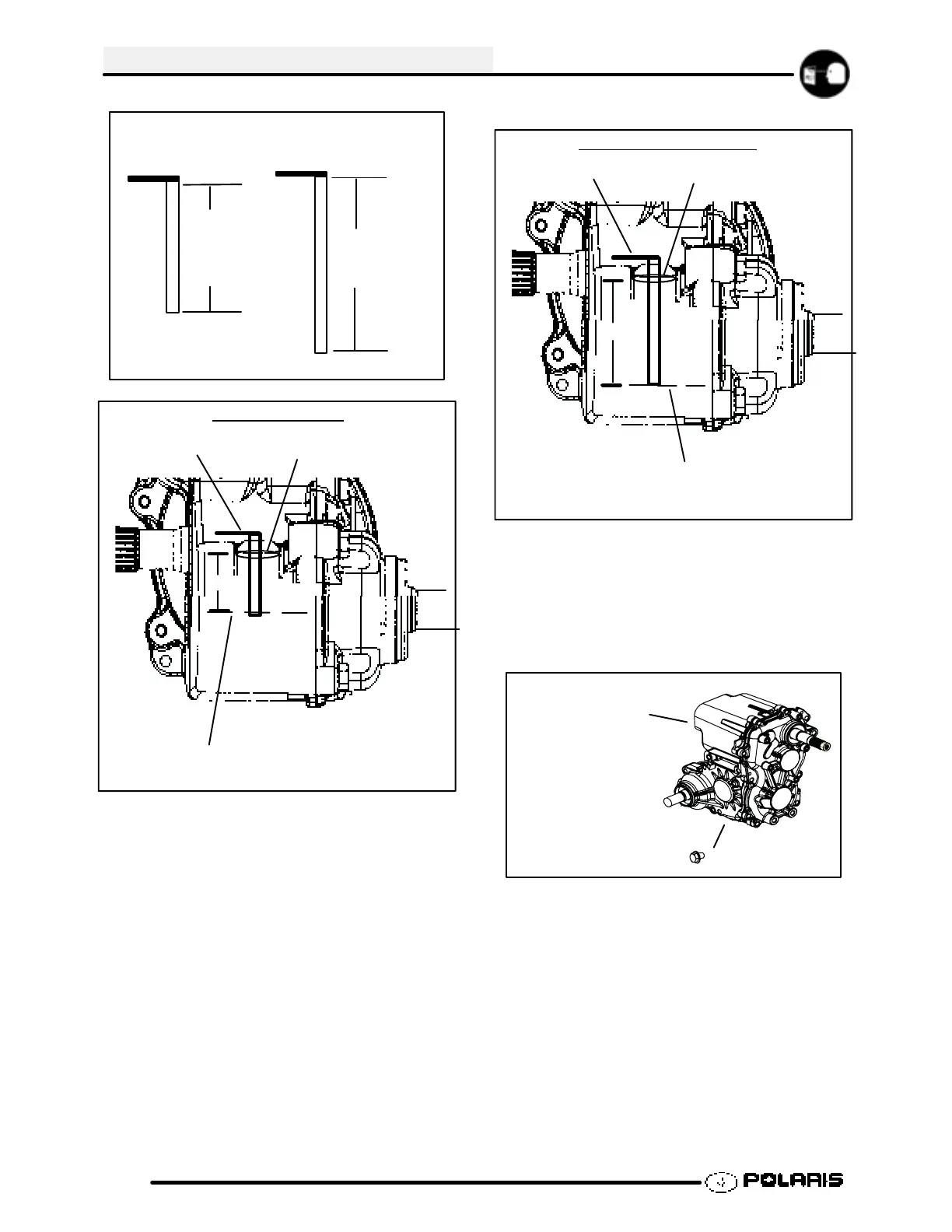

Examples of Measuring Instruments
4x4 & 6x6 Models
3/4” (19 mm)
Below top thread
of fill plug.
2x4 Model
ILL. 2
1 1/2” (38 mm)
Below top thread
of fill plug.
3/4” (19 mm) Below Top Fill Plug HoleThread
Top Fill Plug Thread
Measuring Instrument
2x4 Transmission
Inside View of Transmission Fluid Level
3/4”
ILL. 3
Fluid Level
1 1/2” (38 mm) Below Top Fill Plug HoleThread
Top Fill Plug Thread
Measuring Instrument
Inside View of Transmission Fluid Level
4x4 & 6x6 T
ransmission
11/2”
ILL. 4
Fluid Level
To change lubricant:
1. Remove skid plate (if necessary).
2. Place a drain pan beneath the transmission oil
drain plug area.
3. Remove the drain plug and wipe the magnetic end
clean to remove accumulated metallic filings.
Drain Plug
T ransmission
ILL.5
4. After the oil has drained completely, install a new
sealing washer and install the drain plug. Torque
to 14 ft. lbs. (19 Nm).
5. Add the proper lubricant through the dipstick hole
until the oil level is between the upper and lower
limits. Do not overfill. Refer to Illustration 2 for
proper fluid level depending on the RANGER
model.
6. Check for leaks.
7. Reinstall skid plate if removed in Step 1.
