ELECTRICAL
10.2
SPECIAL TOOLS
PART NUMBER TOOL
DESCRIPTION
PV--43568 Fluket77 Digital
Multimeter
2870630 Timing Light
2870836 Battery
Hydrometer
2460761 Hall Sensor Probe
Harness
2871745 Static Timing Light
Harness
ELECTRICAL SERVICE
NOTES
Keep the following notes in mind when diagnosing an
electrical problem.
GRefer to wiring diagram for stator and
electrical component resistance
specifications.
GWhen measuring resistance of a component
that has a resistance value under10
Ohms, remember to subtract meter lead
resistance from the reading. Connect the
leads together and record the resistance.
The resistance of the component is equal
to tested value minus the lead resistance.
GBecome familiar with the operation of your
meter. Be sure leads are in the proper
jack for the test being performed (i.e. 10A
jack for current readings). Refer to the
Owner’s manual included with your
meter for more information.
GVoltage, amperage, and resistance values
included in this manual are obtained
with a Fluket 77 Digital Multimeter
(P V--43568). This meter is used for
when diagnosing electrical problems.
Readings obtained with other meters
may differ.
GPay attention to the prefix on the multimeter
reading (K, M, etc.) and the position of
the decimal point.
GFor resistance readings, isolate the
component to be tested. Disconnect it
from the wiring harness or power supply.

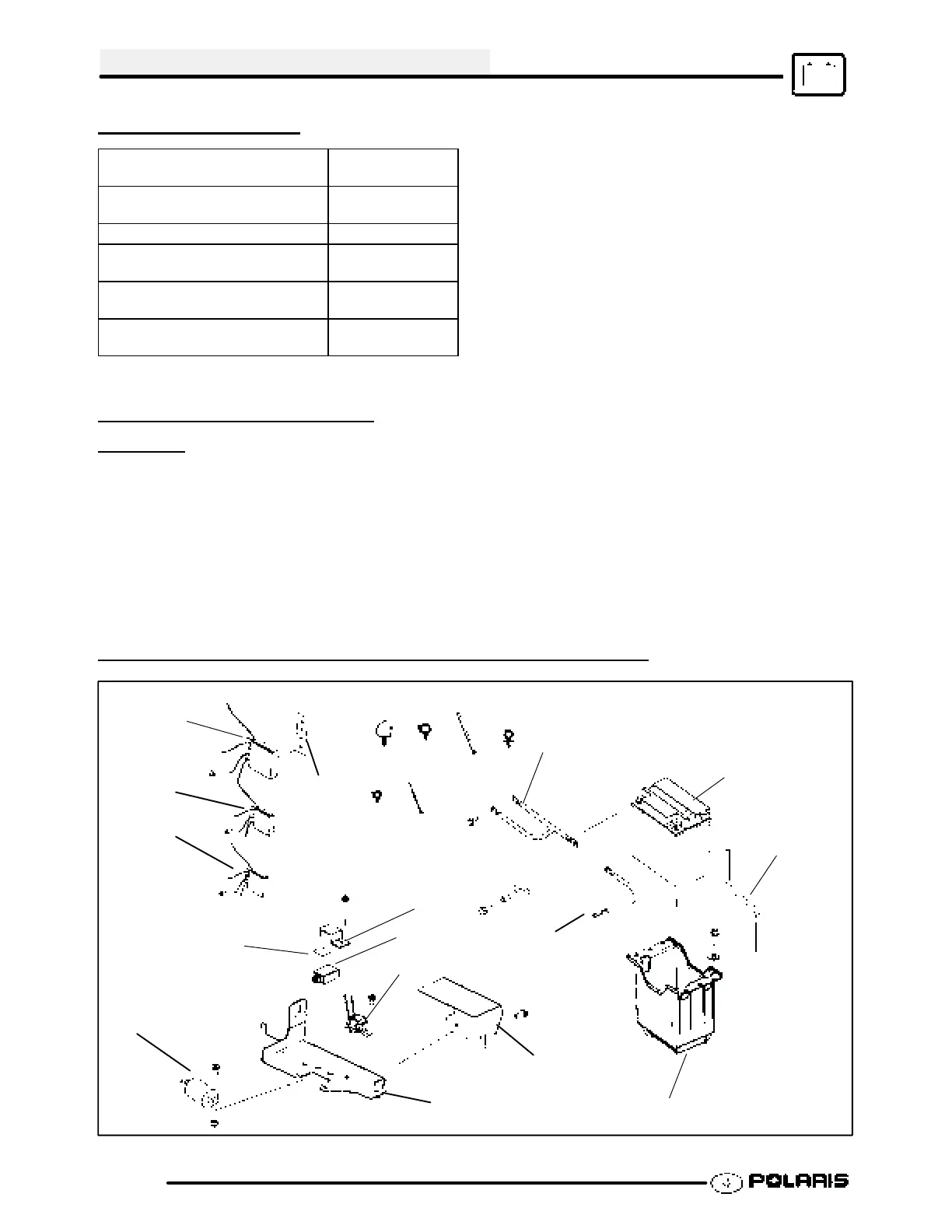

ELECTRICAL COMPONENTS IDENTIFICATION
Battery Cable
Battery
Battery
Vent Tube
Battery Box
Heat
Clips
12 VDC
Regulator
Sink
Cutoff
Magnetic Switch
CDI
CDI Bracket
Rack Mount Pad
Coil
Oil Tank
Bracket
Electrical Cover
Bracket
Solenoid Cable
RPM Limiter
