ELECTRICAL
10.6

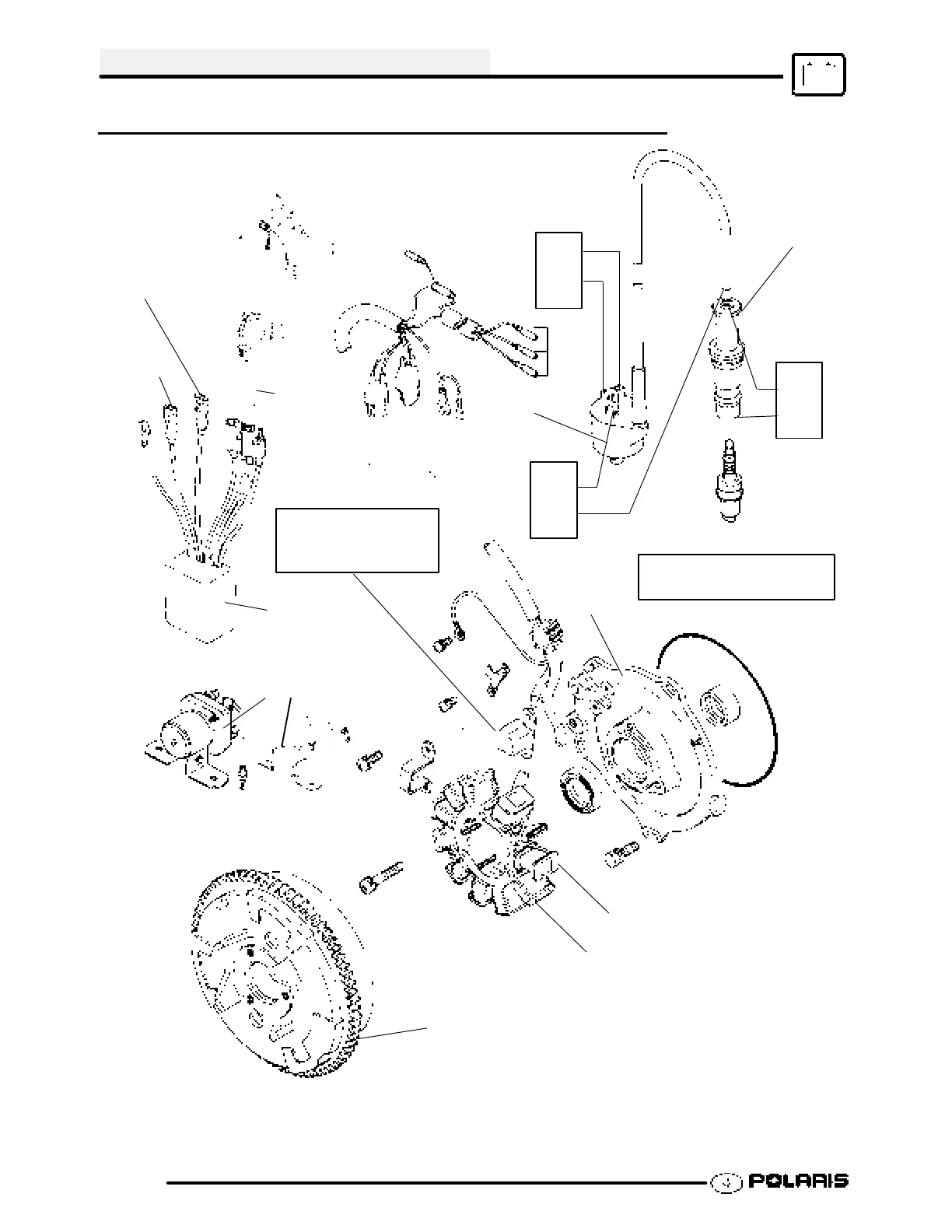

COMPONENTS OF 200/250 WATT ALTERNATOR
CDI Box
Ignition Exciter
Coils
Resistor
Cap
Stator
Plate
Magnetic
Switch
Ignition
Coil
Meter
Meter
Ignition Coil
Primary Winding
Ignition Coil
Secondary Winding
Meter
5k W
NOTE: CDI boxes may look the same but have different internal
circuitry. Be sure to always use the correct CDI box part number.
Battery Charging
Coils
Ignition Kill
Wire
(Black)
Coil Lead
.3 W
6300 W
Pulse Coil (Trigger)
Air Gap: .016-.040²
(.4 - 1.0 mm)
Flywheel and
Ring Gear Casting.
Refer to Page 10.5 for
identification.
Refer to wiring diagrams for
specified stator coil resistance
200 W
(3 wires)
250 W
(2 Wires)
Check coil mount for good
ground to engine (0-.2 )
W
CDI Box
To Next Page
