EXHAUST SYSTEM

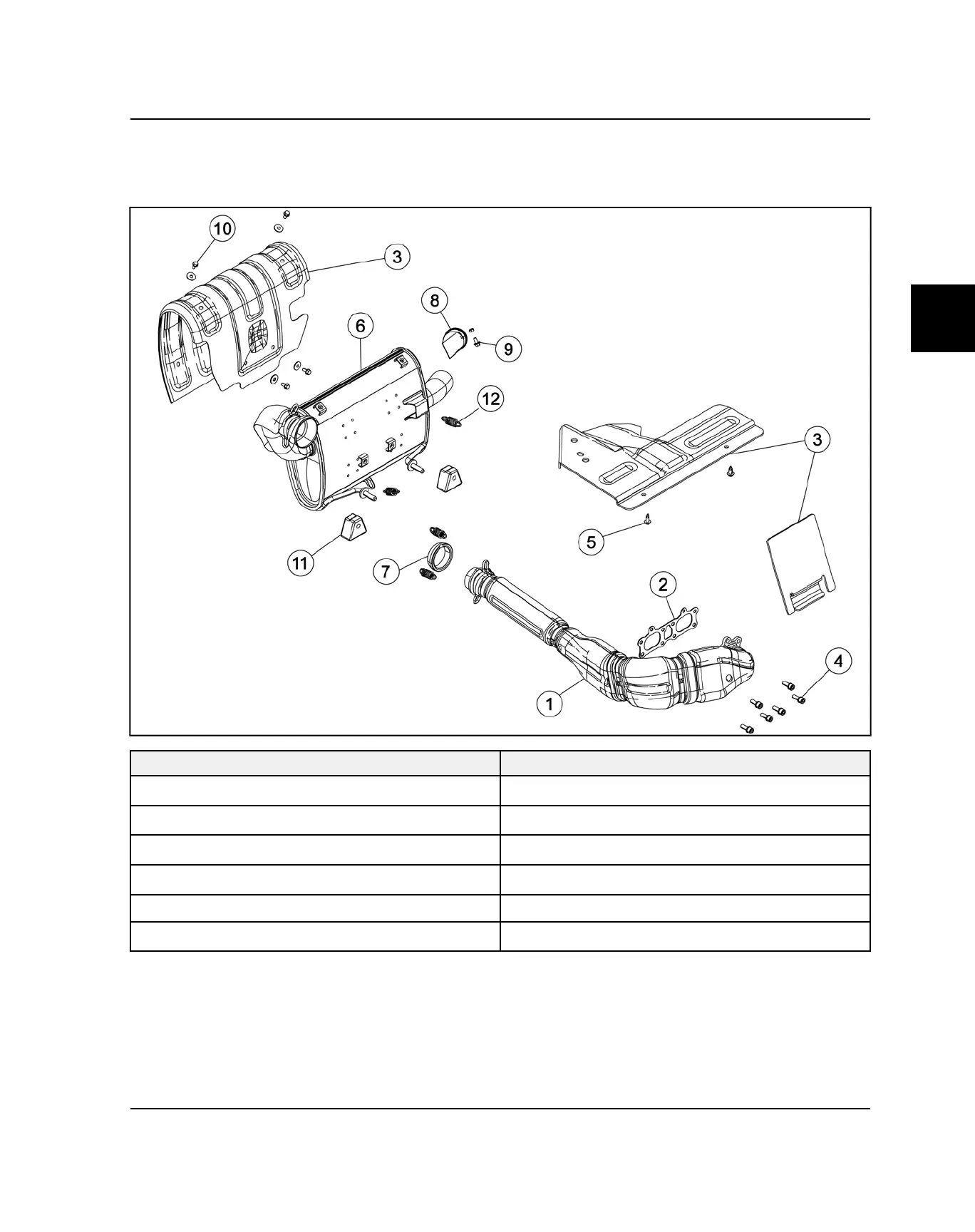

EXHAUST ASSEMBLY VIEW / TORQUE
VALUES
ITEM / TORQUE ITEM / TORQUE
q
Exhaust Head Pipe
u
Exhaust Gasket
w
Head Pipe Gasket
i
Spark Arrestor
e
Heat Shields
o
Spark Arrestor Fastener / 8 ft-lb (11 Nm)
r
Head Pipe Bolts / 18 ft-lb (24 Nm)
a
Muffler Shield Fasteners / 10 ft-lb (14 Nm)
t
Push Rivet
s
Muffler Rubber Mounts
y
Muffler
d
Exhaust Spring
