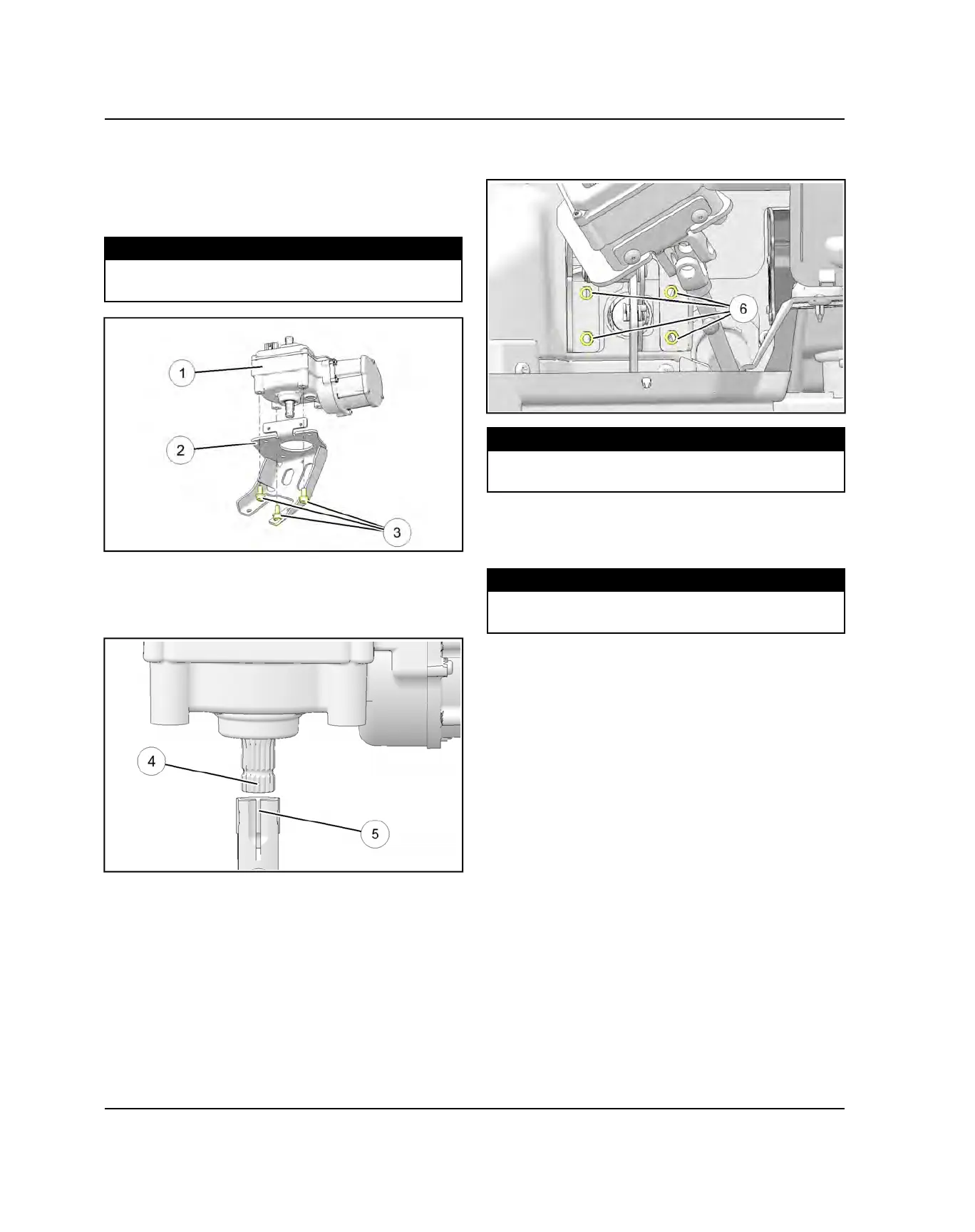

POWER STEERING UNIT INSTALLATION
1. If the power steering unit
q
was removed from the
mount bracket
w
, reinstall it prior to vehicle
installation. Torque the mounting bolts
e
to
specification.
TORQUE
Power Steering Unit Mounting Bolts:
30 ft-lb (41 Nm)
2. Install the power steering unit into the vehicle and
align the skip-tooth spline
r
on the power steering
stub shaft with the opening in the lower steering shaft
t
.
3. Place the power steering mount bracket over the top
of the brake pedal mount studs and finger tighten the
four nuts.
4. Torque the four mount bracket nuts
y
to
specification.
TORQUE
Power Steering Unit Mount Bracket Nuts:
16 ft-lb (22 Nm)
5. Position the lower steering shaft on the power
steering unit stub shaft and install the pinch bolt.
Torque to specification.
TORQUE
Lower Steering Shaft to EPS Unit Pinch Bolt:
15 ft-lbs (20 Nm)
6. See Chapter 8 – Upper Steering Shaft Installation
page 9.15 to complete the installation procedure.
