9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
11.11

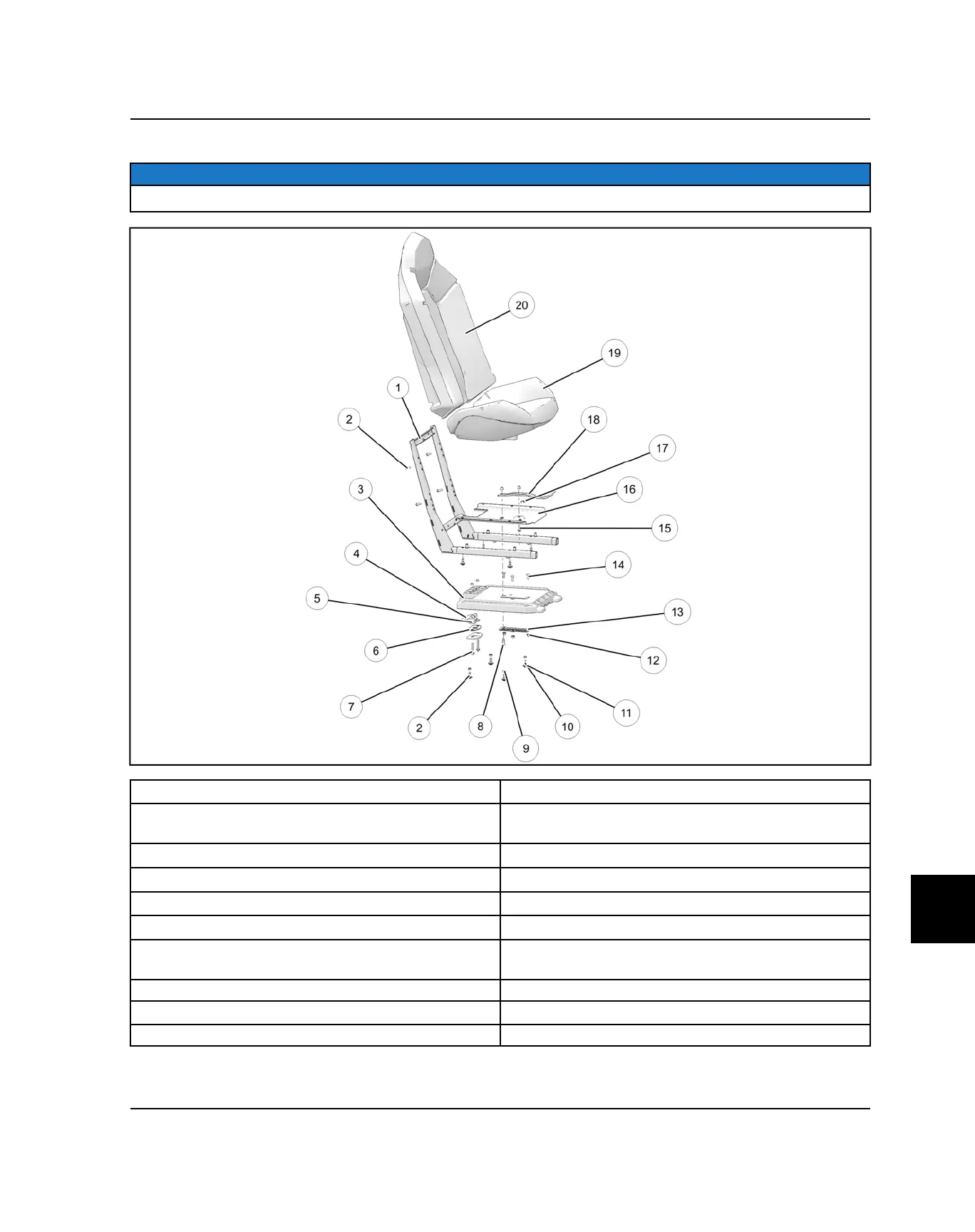

SEATS
NOTICE
***Driver’s side shown. Passenger side will not have the seat slider.***
q
Seat Frame
s
Tube Spacer
w
Seat Mounting Screw
4 ft-lb (5 Nm)
d
Flange Nut Nylok
e
Seat Base Assembly Slider
f
Slider Adjustment Plate
r
Seat Latch Lever
g
Carriage Bolt
t
Spring Seat Latch
h
Shoulder Bolt
y
Plate Seat Latch j
Seat Slider Mounting Plate
u
Seat Latch Screw
4 ft-lb (5 Nm)
k
Spring
i
Shoulder Belt
l
Seat Slider Lever
o
Spring Lock Washer
1(
Seat Bottom
a
Flat Washer
2)
Seat Back
BODY / FRAME
