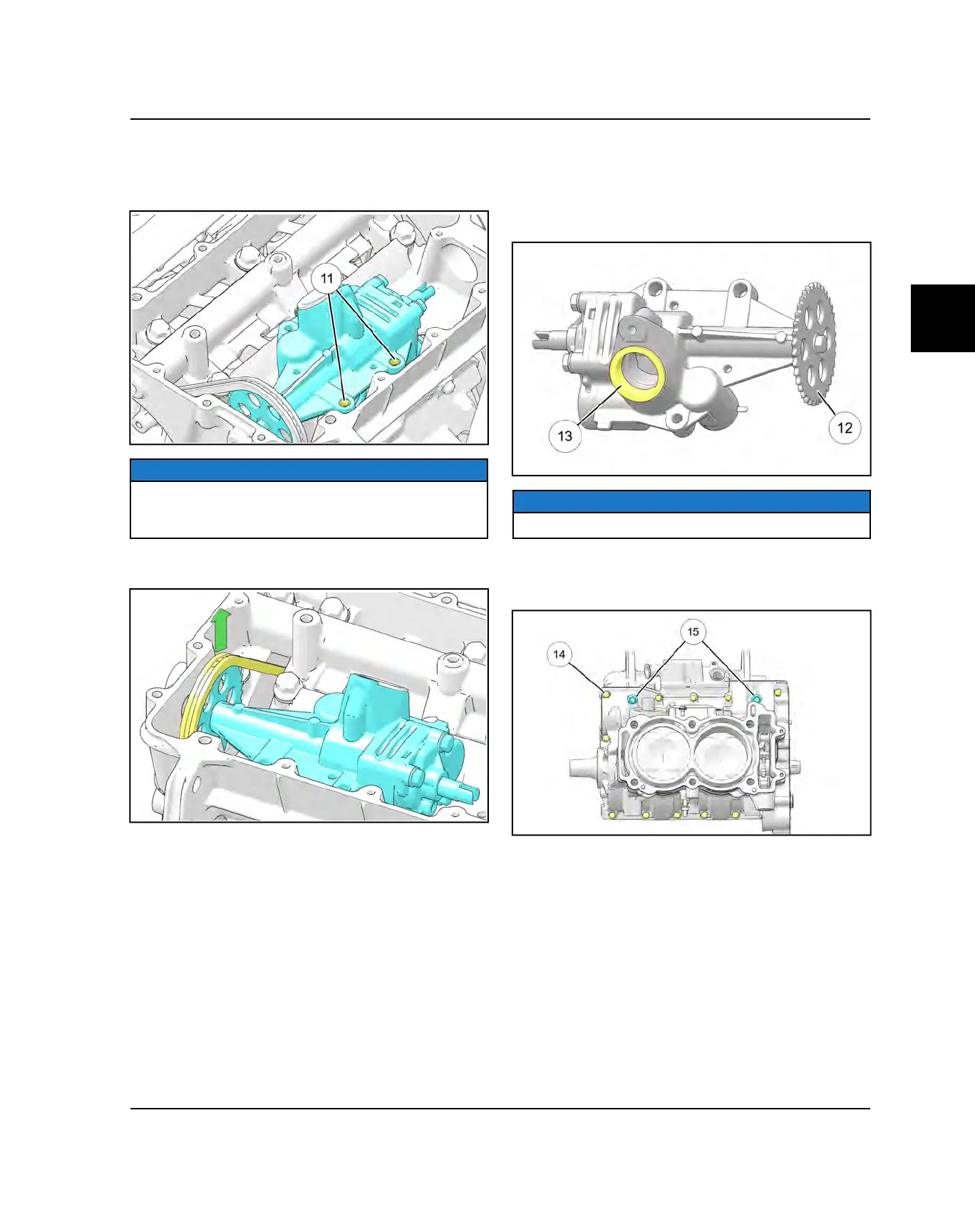

10. Use one of the oil pump retaining bolts or a pen

magnet to extract the dowel pins

from the oil

pump. Doing so allows for oil pump removal without

having to remove the pump drive sprocket.

NOTICE

If unable to extract the dowel pins from the oil pump,

the oil pump sprocket must be removed. Access the

sprocket bolt by removing the case plug.

11. Lift the oil pump drive chain and remove the oil

pump.

12. Visually inspect the oil pump and drive sprocket

for wear or damage. Replace oil pump drive chain

and sprocket if worn or damaged. If any part of the oil

pump is damaged, the entire assembly must be

replaced. Replace the oil pump seal

during

crankcase assembly.

NOTICE

Oil pump assembly is non-serviceable

13. Rotate the engine so the cylinder is facing up.

14. Remove the eleven M6

and two M8

upper

crankcase bolts.

15. Rotate the engine so the cylinder is facing down.
