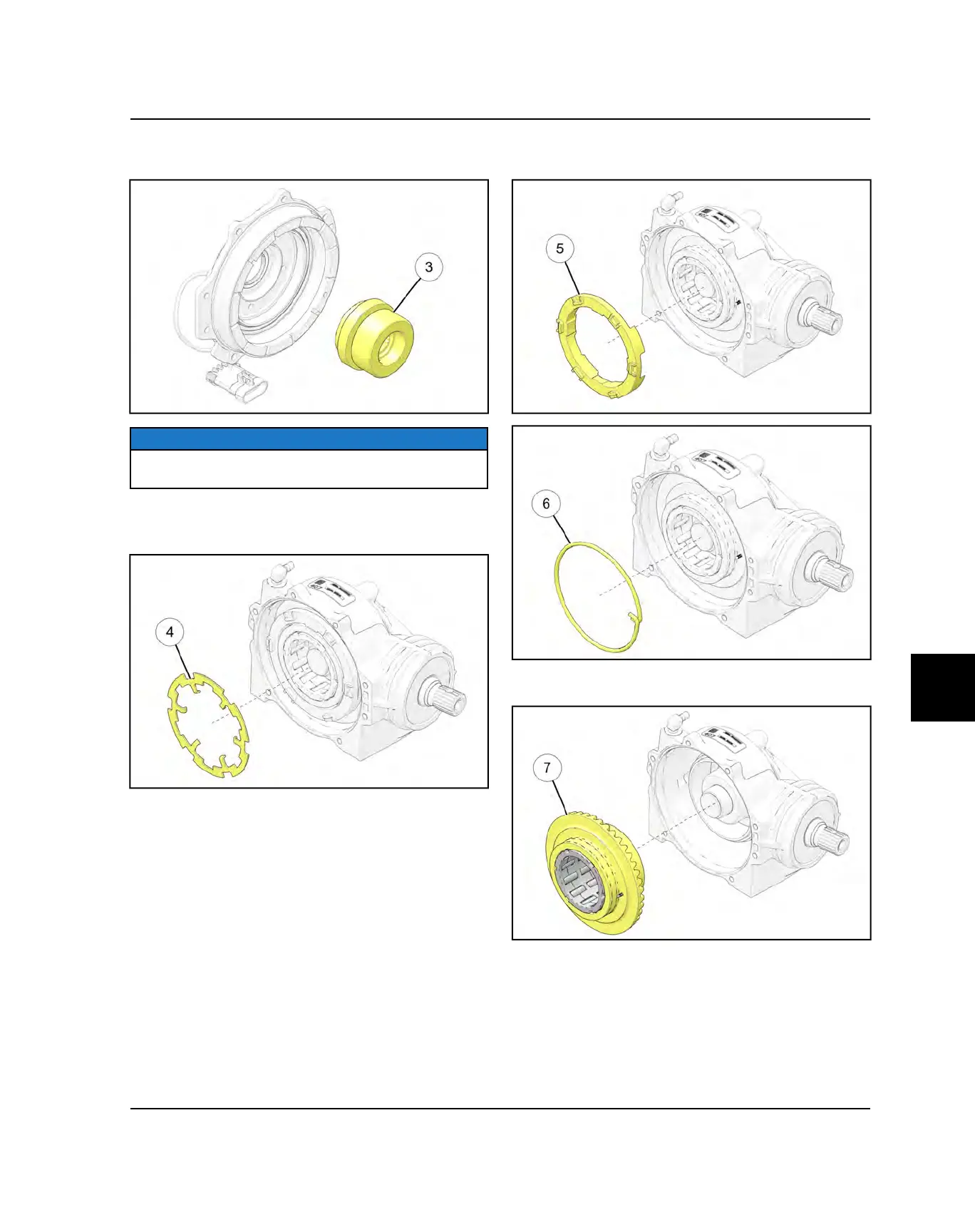

3. Remove the LH output hub assembly
e
from the
clutch housing or outer cover plate assembly.
NOTICE
Nylon spacer is non-serviceable and should not be
removed.
4. Remove and inspect the armature plate
r
. Refer to
AWD Diagnosis page 8.27 for detailed inspection
process.
5. Remove the torsion spring retainer
t
and torsion
spring
y
from the top of the ring gear.
6. Remove the clutch housing / ring gear and roll cage
assembly
u
from the gearcase housing.
