8.32
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

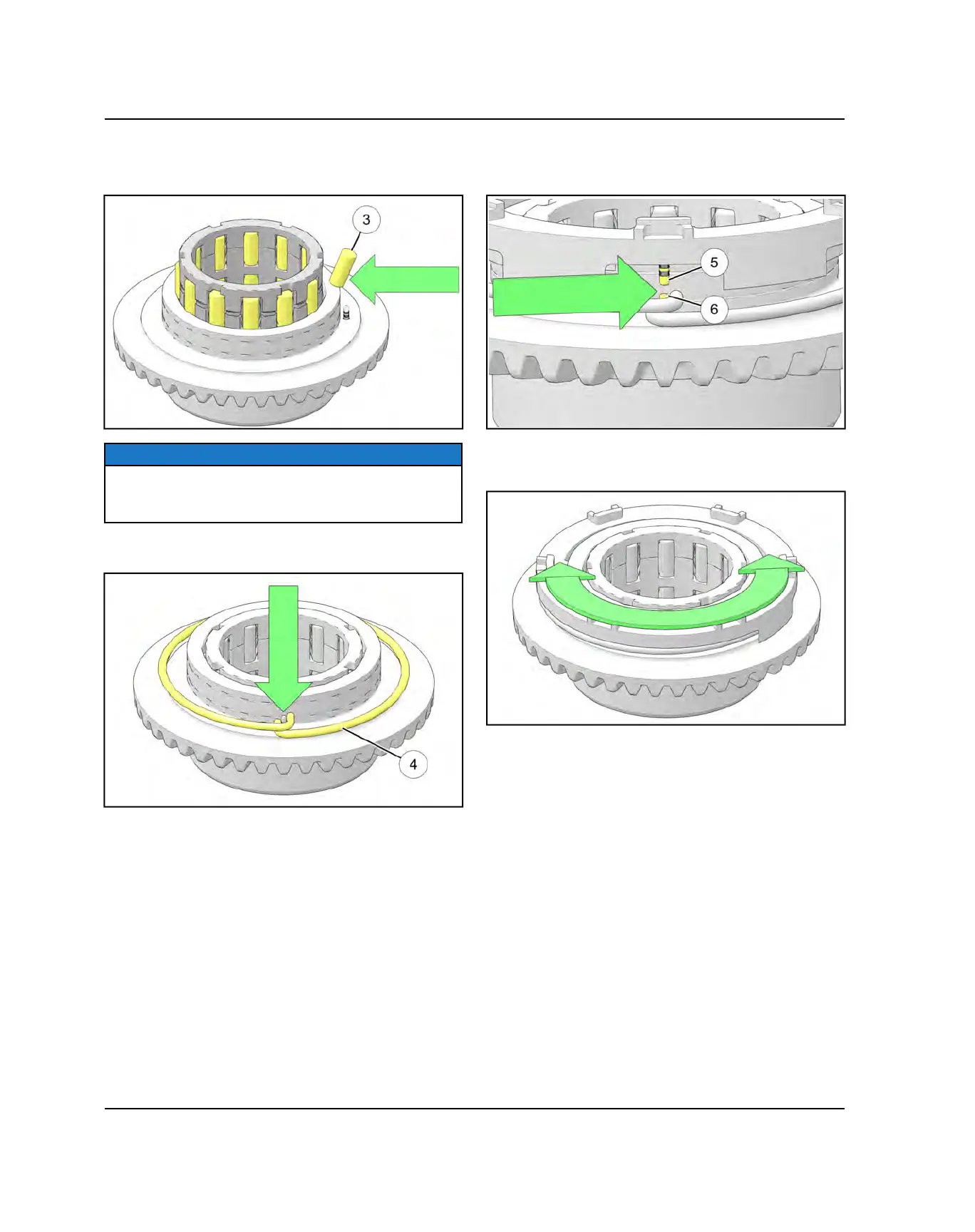

5. Carefully install the rollers
e
into the roll cage
assembly while installing the assembly into the
clutch housing.
NOTICE
Install roll cage so that the ring gear grooves line up
with the roll cage windows (see below). Be sure role
cage top groove is facing upward.
6. Install the torsion spring
r
by wrapping each leg of
the spring around the dowel pin on the ring gear.
7. Align spring retainer dowel pin
t
with ring gear
dowel pin
y
and install the retainer on top of the
torsion spring.
8. Check the action of the torsion spring by rotating in
both directions to ensure the spring and retainer are
installed properly.
FINAL DRIVE
