11.4
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

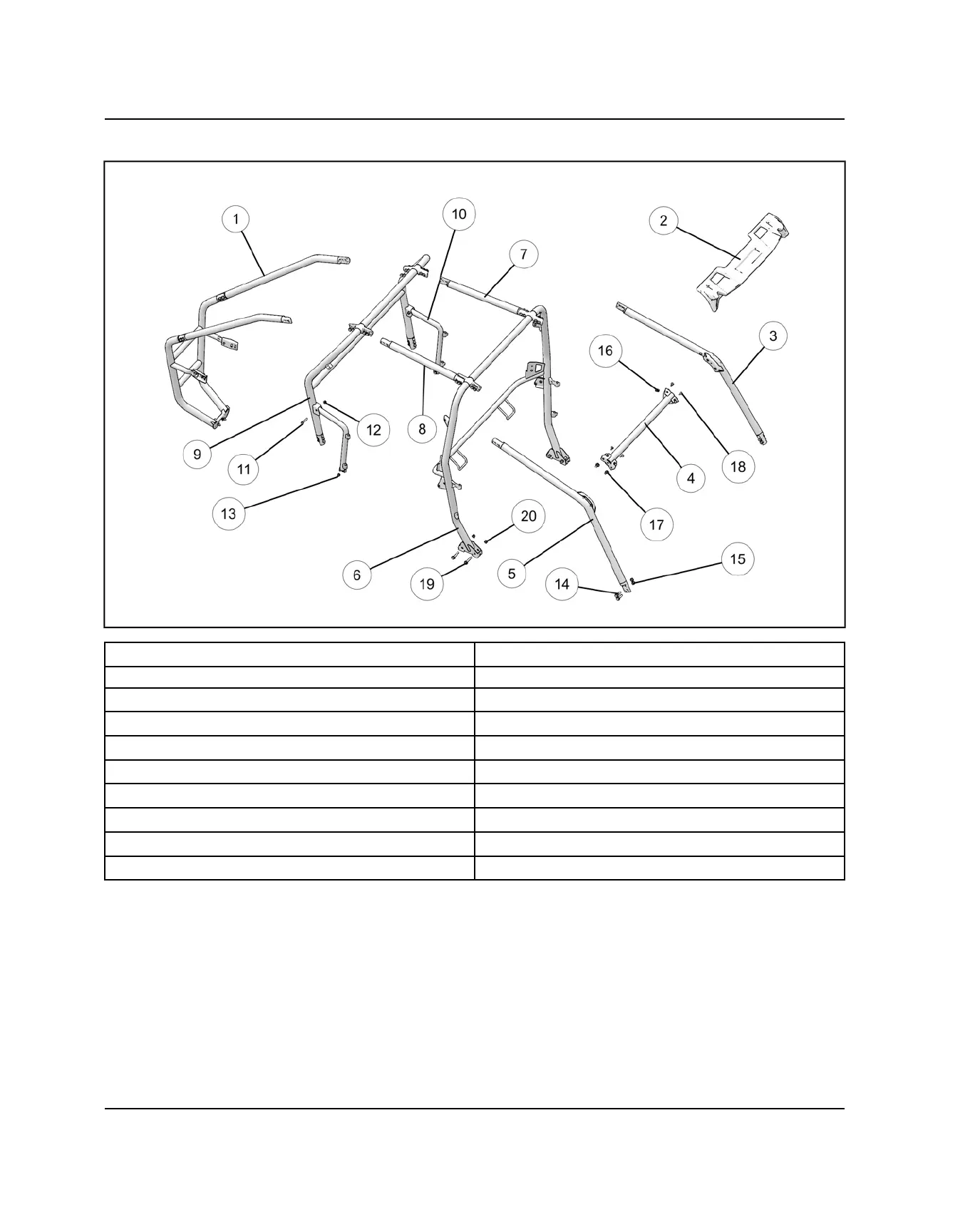

CAB FRAME ASSEMBLY - 4 1000
q
Rear ROPS
s
M8 x 1.25 x 55 Screw 17 ft-lb (23 Nm)
w
Visor
d
M8 x 1.25 Nut
e
Front ROPS - Left f
M8 x 1.25 x 20 Bolt 14 ft-lb (19 Nm)
r
Front ROPS Cross Brace
g
M10 x 1.5 x 45 Screw 40 ft-lb (54 Nm)
t
Front ROPS - Right
h
M10 x 1.5 Nut
y
Hoop, ROPS -Mid
j
Clip
u
Brace, ROPS - Mid Left
k
M10 x 1.5 x 20 Screw 40 ft-lb (54 Nm)
i
Brace, ROPS - Mid Right
l
M6 x 1.0 x 25 Screw 8 ft-lb (11 Nm)
o
Hoop, ROPS - Rear
1(
M6 x 1.5 x 65 Screw 30 ft-lb (41 Nm)
a
Hip Bolster
2)
M10 x 1.5 Nut
BODY / FRAME
