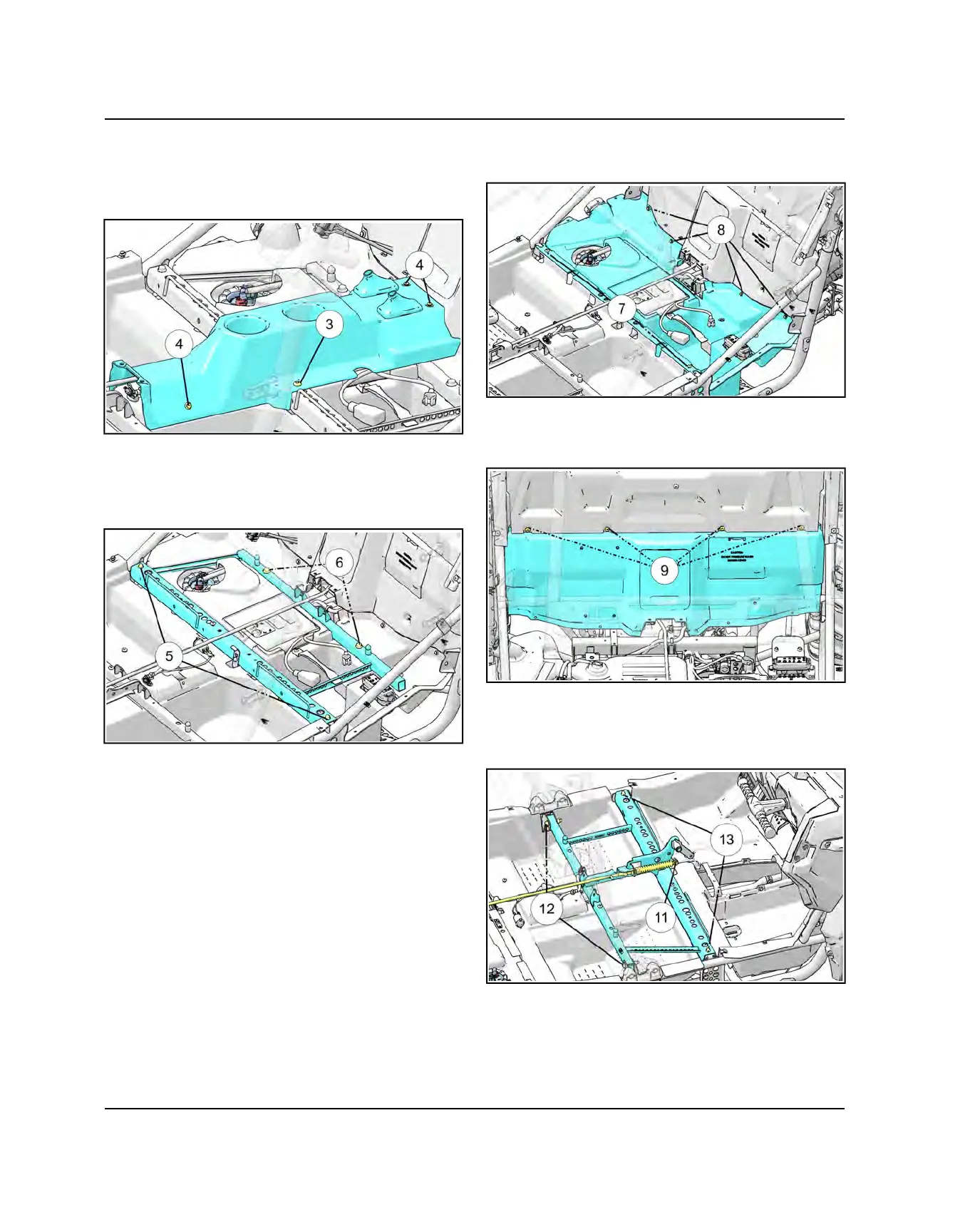

3. Remove shift handle knob and remove the front
console.
4. Remove the Torx T40 screws
e
and push rivets
r
retaining the rear console to the rear floor.
5. Remove the rear console.
6. Remove two M10x1.25x20 bolts from the rear seat
frame
t
and two M10x1.50x55
y
bolts from the rear
seat frame assembly.
7. Remove the seat frame.
8. Disconnect negative and positive battery cables.
Remove the battery.
9. Remove two fasteners retaining the fuse panel to the
lower rear close off panel.
10.Remove two fasteners retaining the voltage regulator
to the back of the lower rear close off panel.
11. Remove two Torx T40 screws
u
and four push rivets
i
retaining the lower rear close off panel.
12.Remove four Torx T40 screws
o
retaining the upper
rear close off panel. Remove the upper close off
panel.
13.Disconnect the shift cable
s
from the front seat base.
Remove two M8x1.25x20 bolts
d
and two
M10x1.25x55 bolts
f
from the front seat base.
Remove front seat base assembly.
