12.12
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

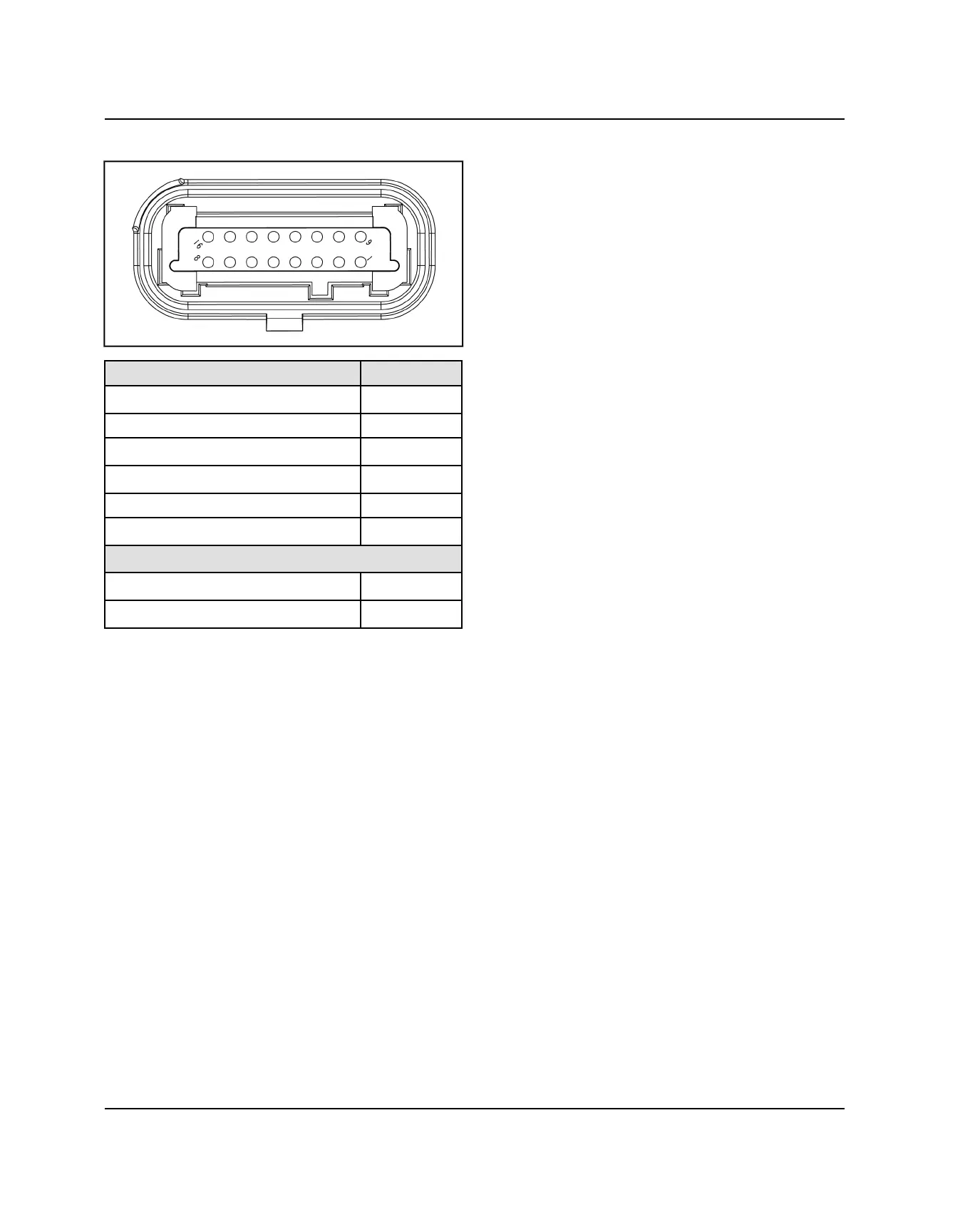

INSTRUMENT CLUSTER PINOUTS
FUNCTION PIN
CAN High
1
CAN Low 2
Switched Power (Vdc)
3
Constant Power (Vdc)
4
Ground
5
High Beam Input
8
International Models Only
Turn Signal Input, LH
6
Turn Signal Input, RH
7
ELECTRICAL
