BODY / STEERING / SUSPENSION
5.11

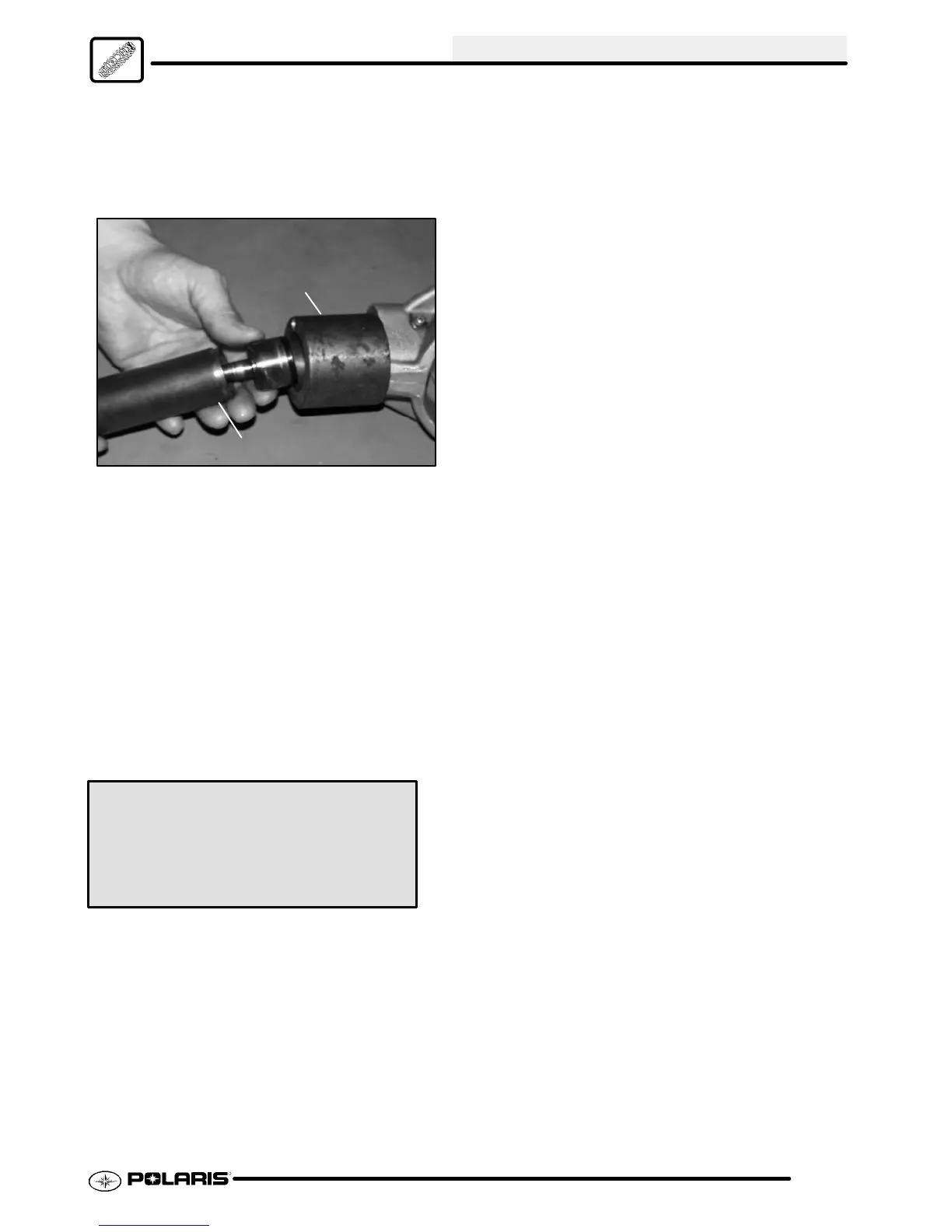

8. To install new ball joint:
G Remove extension cap and attach
puller guide using short bolts
provided in the kit.
G Insert new ball joint (E) into driver (F).
A
B
C
E
D
F
E
G Slide ball joint/driver assembly into
guide.
G Drive new joint into strut housing until
fully seated.
9. Apply Loctitet 242 (PN 2871949) to threads of
retaining plate screws or install new screws with
pre-applied locking agent. Torque screws to 8 ft.
lbs. (11 Nm).
10. Install A-arm on ball joint and torque castle nut to
25 ft. lbs. (35 Nm).
11. Reinstall cotter pin with open ends toward rear of
machine.
SAFETY REMINDER:
Remember to use safety glasses and
other protective equipment when
performing these procedures
