Polaris TRAIL BOSS 2003

FUEL SYSTEM/CARBURETION
4.3

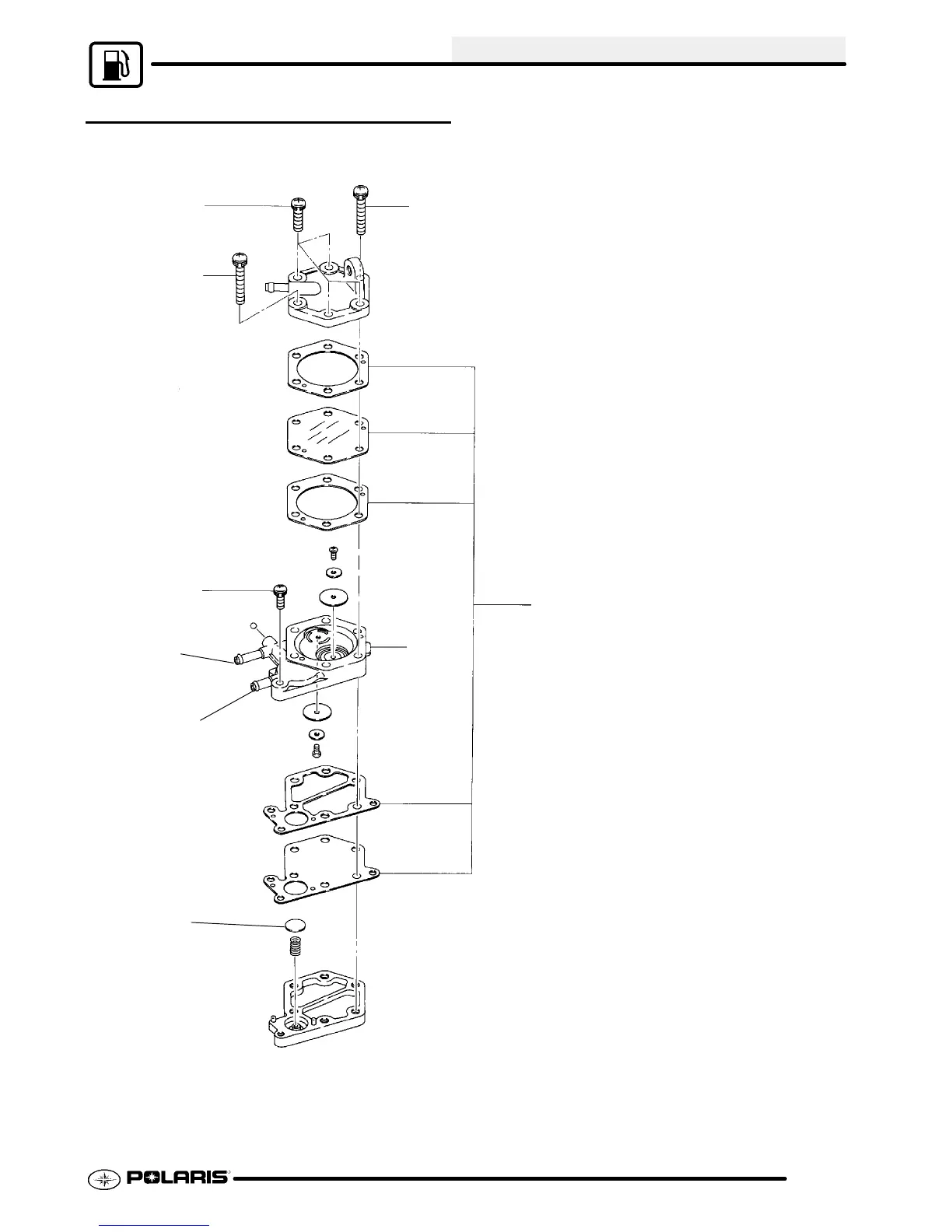

FUEL PUMP EXPLODED VIEW
3
2
1
5
5
4
1. Fuel Pump Assembly
2. Diaphragm, Gasket Set
3. Screw and Washer Assembly
4. Screw and Washer Assembly
5. Screw and Washer Assembly
6. Pressure Regulator
7. Fuel Inlet
8. Fuel Outlet
6
8
7
