ELECTRICAL
10.4

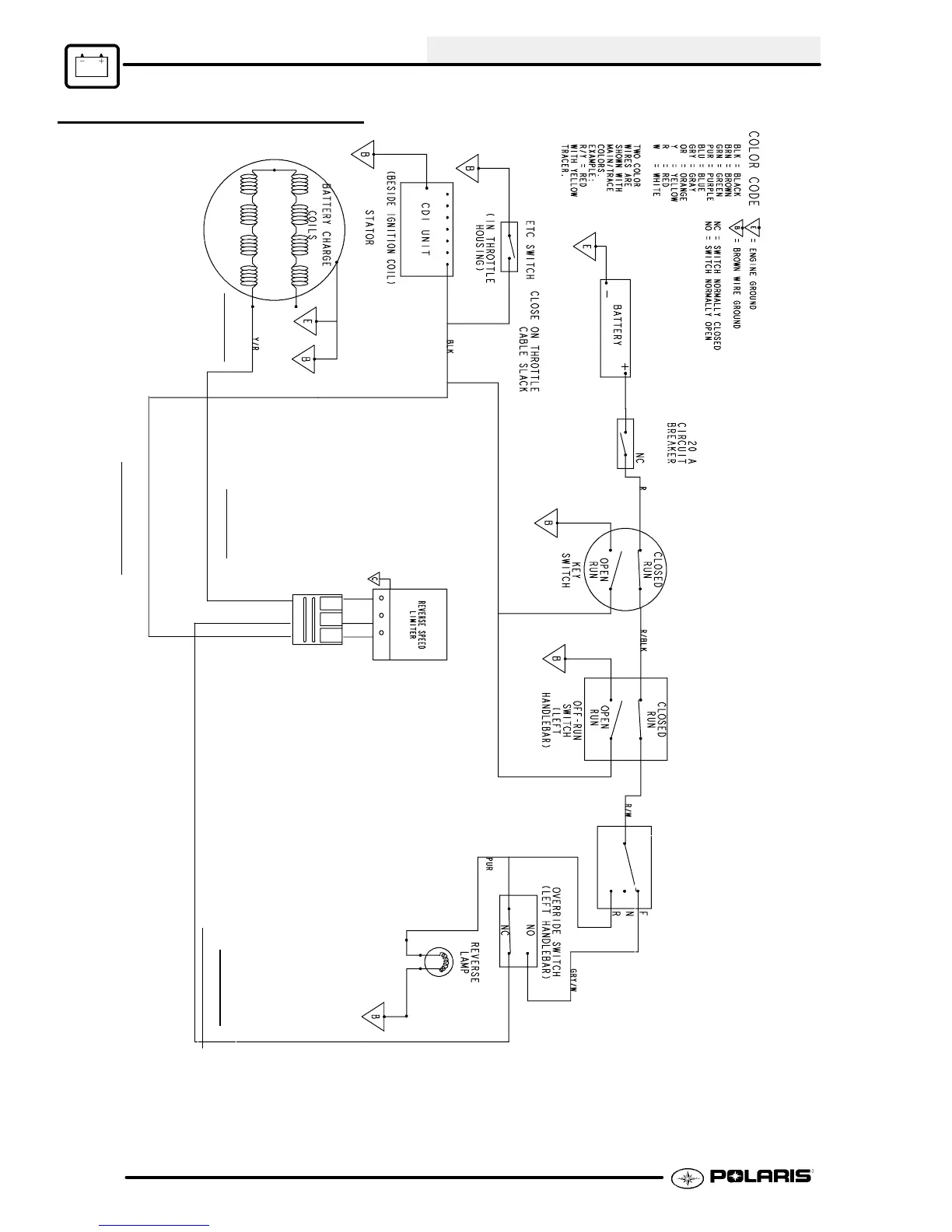

REVERSE LIMIT SYSTEM
RPM Signal
Gray/Orange
Reverse Gear Signal
Y/R
Blk
Gry/Or
LR44--3
Gry/Or
Blk
Y/R
Engine Stop Signal
RPM Signal
Transmission
Switch
Reverse speed limit
module sends signal
(ground) to CDI to
eliminate spark at
3500 (approx.) in re-
verse.
Under Front cover
