FINAL DRIVE
7.9

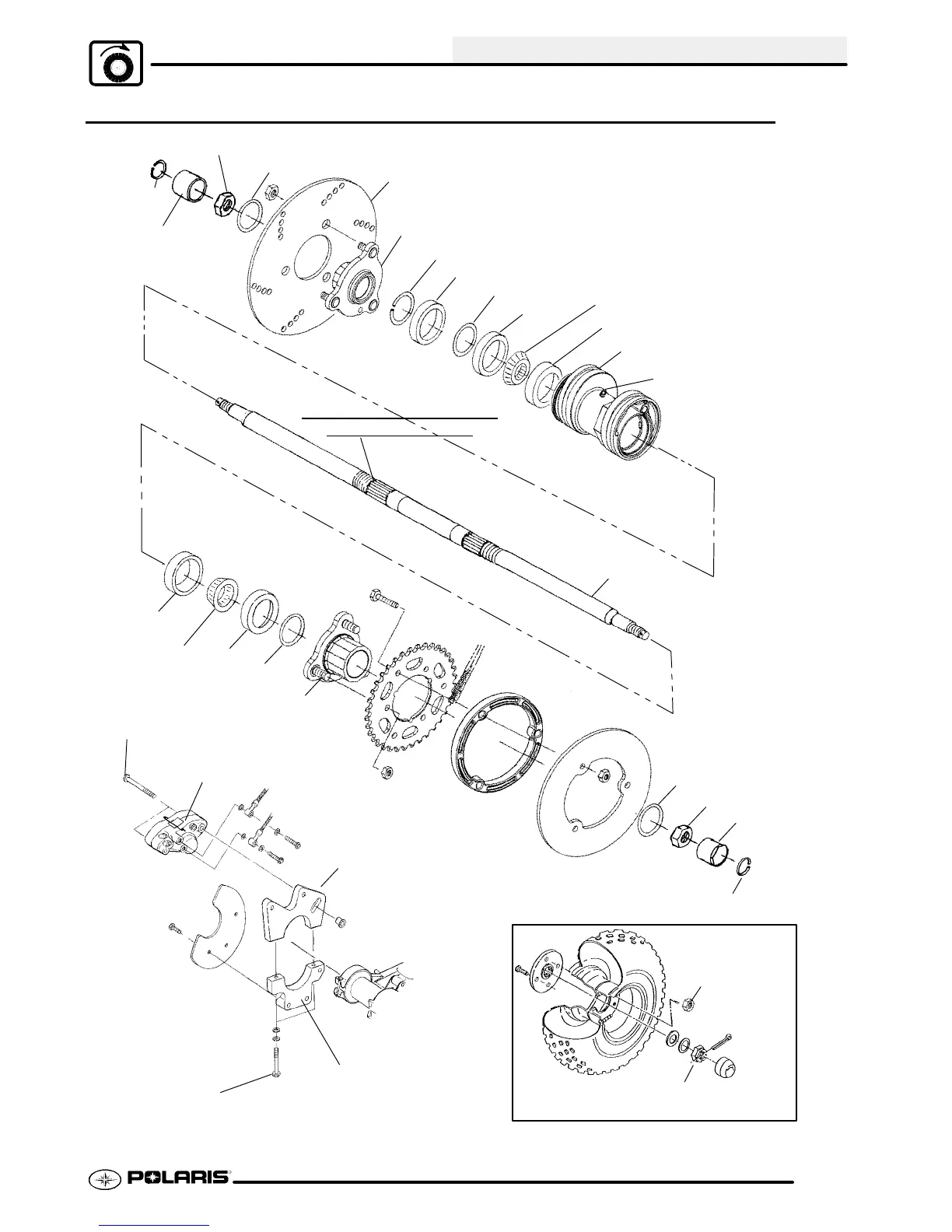

CONCENTRIC SWINGARM REAR AXLE EXPLODED VIEW
Snap Ring
Lock Collar
Left Axle Nut (120 ft. lbs.)(163 Nm)
Brake Disc
Disc Hub
Stop Ring
Seal Sleeve
O-Ring
Seal
Bearing
Bearing Race
Eccentric Housing
Grease Fitting
Axle
Bearing Race
Bearing
Seal
O-Ring
Sprocket Hub
Foam Seal
Axle Nut
Lock Collar
Snap Ring
Caliper Mount, Upper
Caliper Mount, Lower
Caliper
Left side of axle
identified
by groove in
spline
10-12 ft.lbs. (14-17 Nm)
18 ft. lbs.
(25 Nm)
Torque: 80 ft. lbs.
(110 Nm)
Torque: 50 ft. lbs.
(69 Nm)
Foam Seal
