Polaris TRAIL BOSS 2003 User Manual

FINAL DRIVE
7.11
CONCENTRIC SWINGARM
REAR
HOUSING
INSTALLA
TION

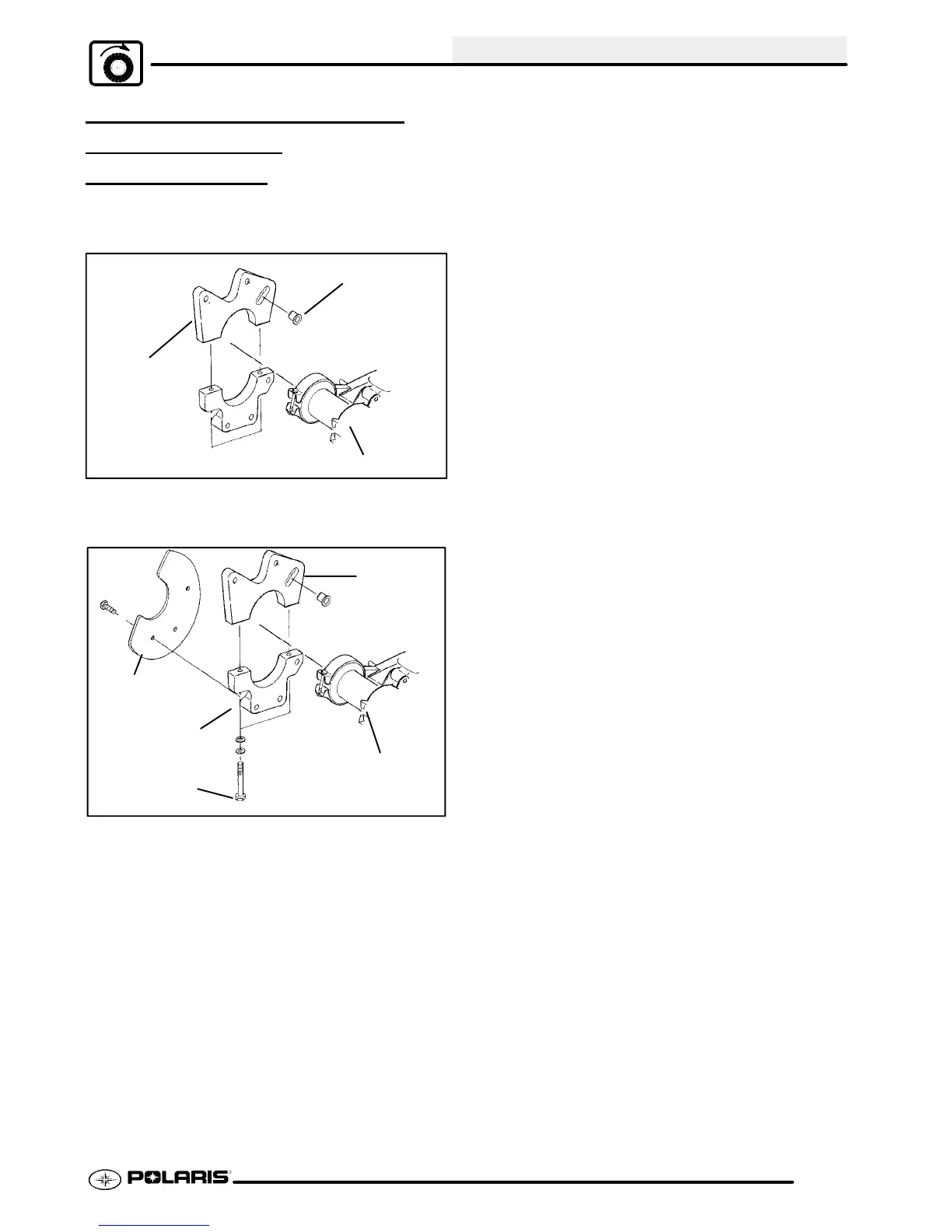

1. Place brake caliper pivot bushing on stud with
flange inward as shown.
Upper Mounting
Bracket
Rear Housing
Caliper Mount
Bushing
2. Loosely assemble upper and lower brake caliper
mount. Do not tighten at this time.
Lower Mount
Bracket
Upper Mounting
Bracket
Brake Disc
Guard
Rear Housing
Mount Bolts
3. Install rear axle. (See Page 7.8)
4. Fill housing with grease until grease purges from
both seals.
