MAINTENANCE
Air Filter Service
Tra il Blazer
1.Release seat latch and lift up on
the rear of the seat and remove
seat.
2.Remove the primary air filter box.
3.Remove the yellow pre-cleaner
foam boot, held in place by a
gray collar, from the air box.
4.Carefully wash the yellow foam
boot in soapy water and dry it.
5.Oil the foam boot with engine in-
jection oil (1 to 2 teaspoons).
Squeeze out the excess into an
absorbant cloth.
6.Reinstall the yellow foam boot
and gray collar onto the air filter
box.
7.Reinstall the primary air filter box
removedinstep2.NOTE:
There will be some resistance.
Be sure the black rubber seal-
ing ring is securely positioned
over the main filter neck.
CAUTION: When installing the pri-
mary air filter box be sure the gray
foam collar (B) is below the intake
opening of the air box intake (A).
Improper installation will restrict air-
flow to theengine possiblyresulting
in engine damage.

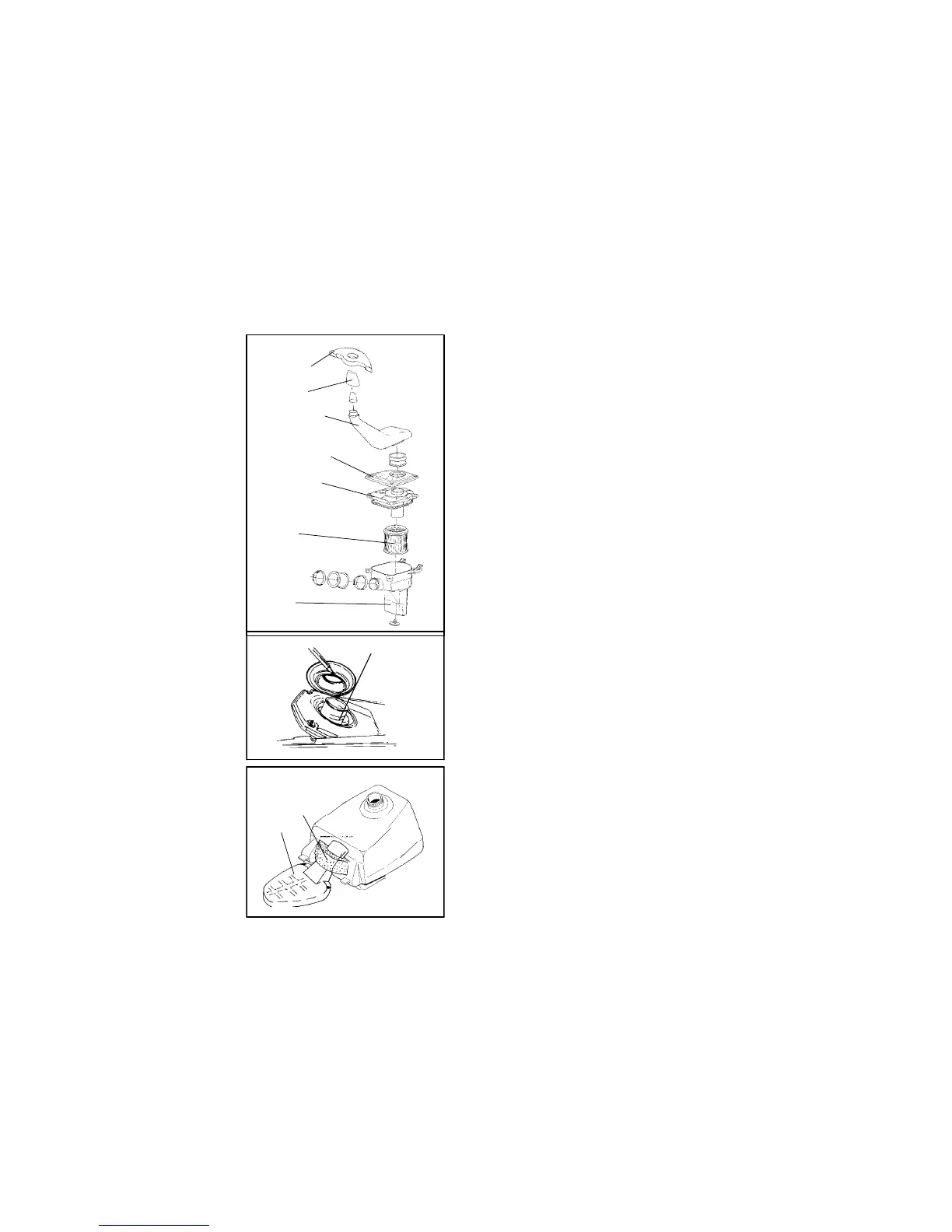

Gray Collar
Yellow Boot
Intake Silencer
Airbox
Air Filter
Airbox Retainer
Airbox Cover
Main Filter Neck
B
A
