118
MAINTENANCE
Headlight Housing Replacement
1.Remove Phillips screws from bottom of headlight pod at each front corner.
NOTE: To aid in accessing these screws, it may be helpful to turn handlebars
to left or right and use a short, stubby screwdriver. Removal of the front rack
and cover may also allow easier access.
2.Remove three Phillips screws at back of
headlight pod.
3.Lift pod cover up. Disconnectspeedome-
ter harnesses from speedometer. Un-
plug indicator light harness and remove
pod cover.
4.Unplug headlamp from wiring harness.
5.RemoveO-Ring fromheadlightpivotpins.
6.Pull headlight housing up to release from
locking tabs.
7.Liftadjustingknobup toremovefromlock-
ing tabs.
8.Carefully pull assemblyup and out of pod.
9.Reverse steps to install new housing and
reassemble pod.
10.Adjust headlightaim by turningadjusting
knob.

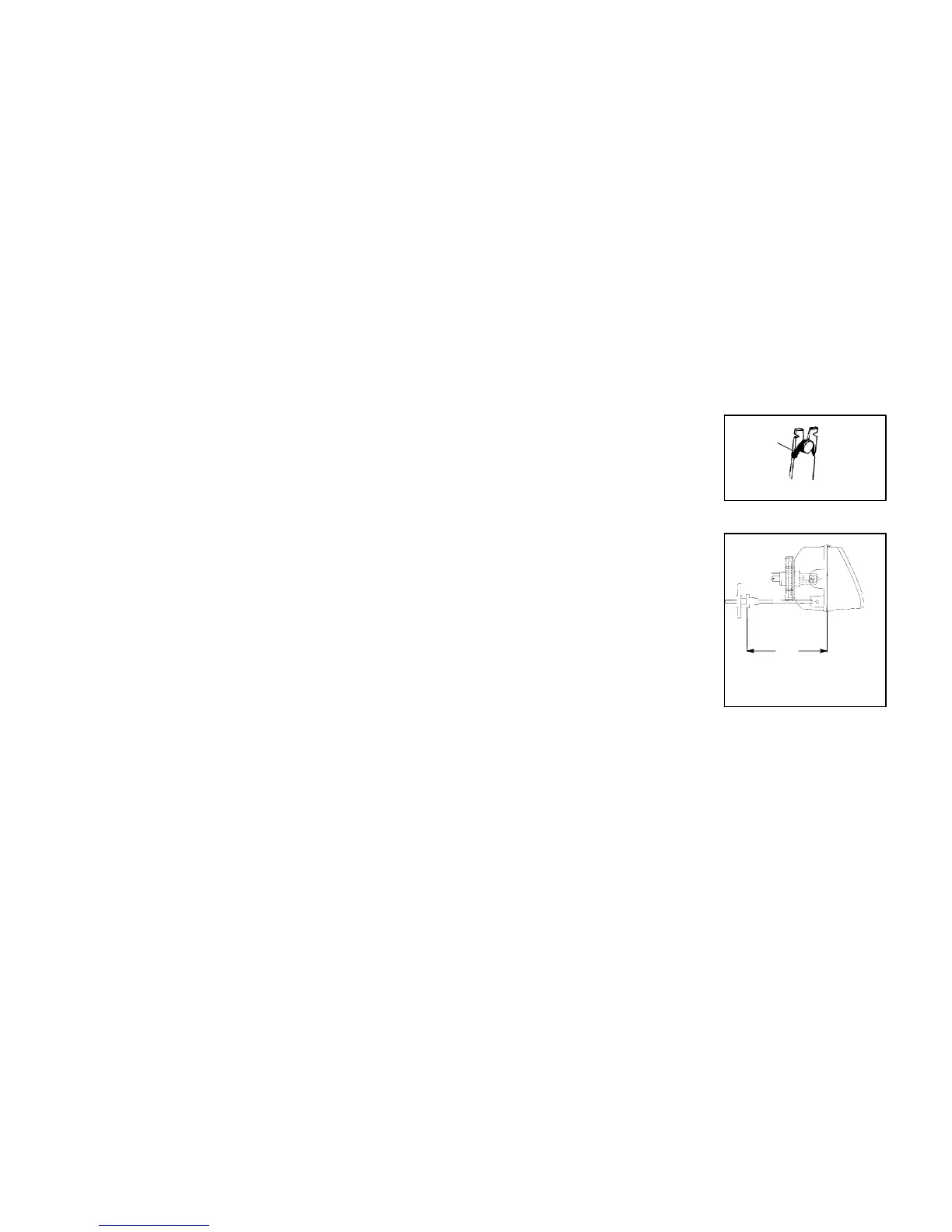

O-Ring
51/8″
(13 cm)
Distance from headlamp parting
line to end of adjustment knob stop
is 5 1/8″ (13 cm).
