112
MAINTENANCE
Rear Drive Chain Slack Adjustment
(Models with Concentric Drive)
CAUTION: Never adjust or operate the vehicle with the rear drive c hain too
looseortoo tight as severe damage to thetransmission and drive components can
result.
Check the amount of chain slack by moving the vehicle slightly forward to gain
slackat the top side oftherearchain. At this pointthechains hould have 3/16″-3/8″
(.48 cm -.95 cm) deflection. Ifthe chain needs adjustment,usethefollowingproce-
dure.
Adjustment Procedure
1.Loosen chain guide.
2.Loosen two eccentric locking bolts.
3.Loosen caliper mount bolts.
4.Insert a pin punch through the
sprocket hub and into the eccentric
axle housing.
5.Roll the vehicle ahead or back to ad-
just chain slack to the proper di-
mension.
6.Tighten caliper mount bolts 10-12 ft.
lbs. (1.4 - 1.7 kg/m)
7.Tighten the eccentric locking bolts to
60 ft. lbs. (8.3 kg/m).
8.Reinstall chain guard.
NOTE: Reposition chainguide toallow
1/8″ (.3 cm) clearance betweensprock-
et and guide.

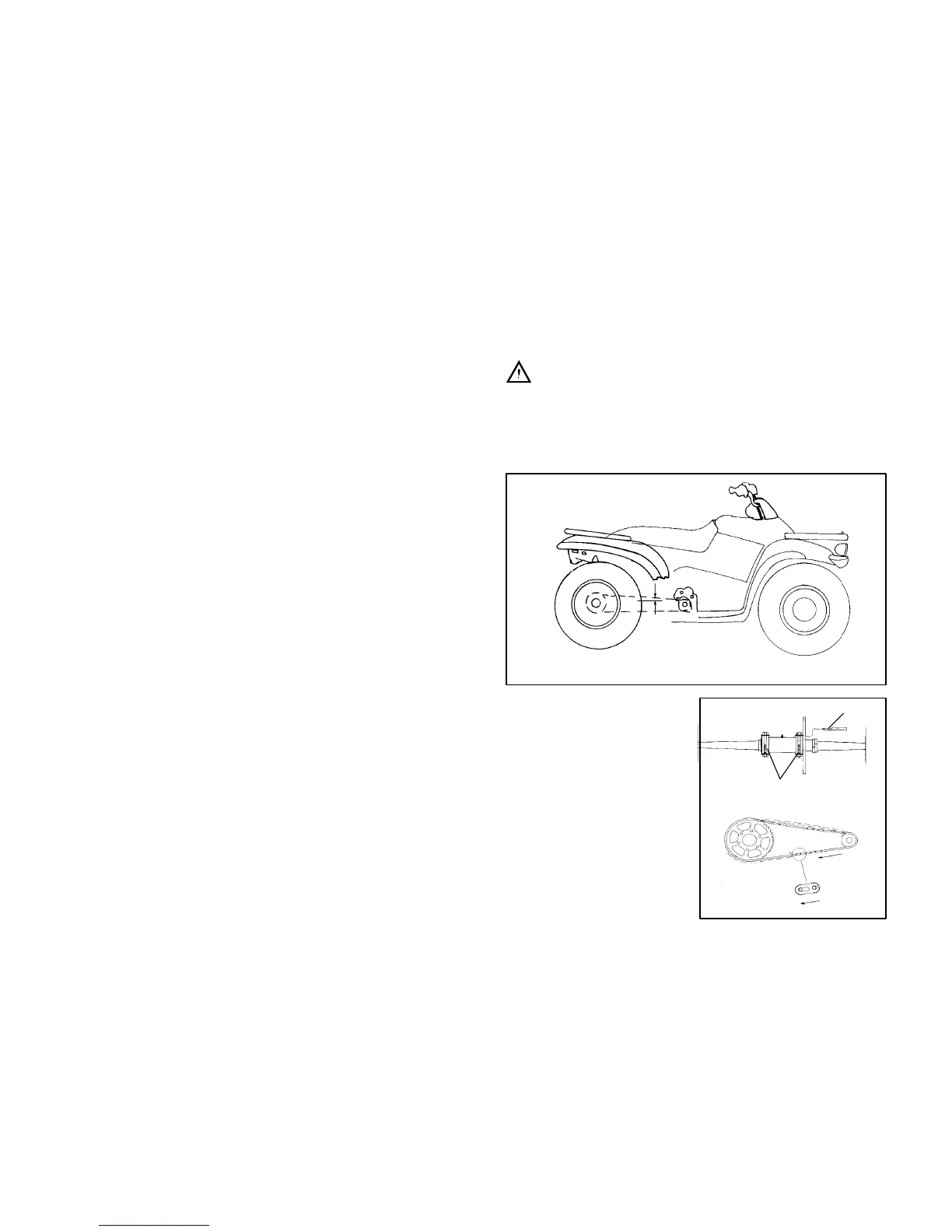

Rear Drive Chain Adjustment
3
2
Proper Splice-
link Clip Open-
ing Position
3/16″-3/8″ (.48 cm - .95 cm) Deflection
To Next Page
