115
MAINTENANCE
Headlight Lamp Replacement
Trail Boss
1.Remove the seat.
2.Remove the plastic panel surround-
ing the upper portion of the gas tank
by first removing the gas tank cap.
3.Remove the Phillips head screws on
either side of the panel at the junc-
tion of this panel, the lower panels,
and the rear of the front fenders.
4.Remove the Phillips head screws on
either side of the rear of the upper
panelwhich were revealedby the re-
moval of the seat.
5.Disengage the tabs at the front of the
upper panel where they snap into
the lower panel surrounding the
headlightassembly. Also disengage
the tabs on the upper panel which
engage with the lower triangular
panelson either side of the machine.
Lift off the upper panel and set it
aside.
6.Reinstall the gas tank cap.
7.Remove the panel surrounding the
headlight by removing the Phillips
head machine screws from either
side of this panel. Also remove the
two Torx screws at the rear of this
panel.
8.Ease the panel forward and up to al-
low you to reach the socket con-
nected to the headlight lamp.

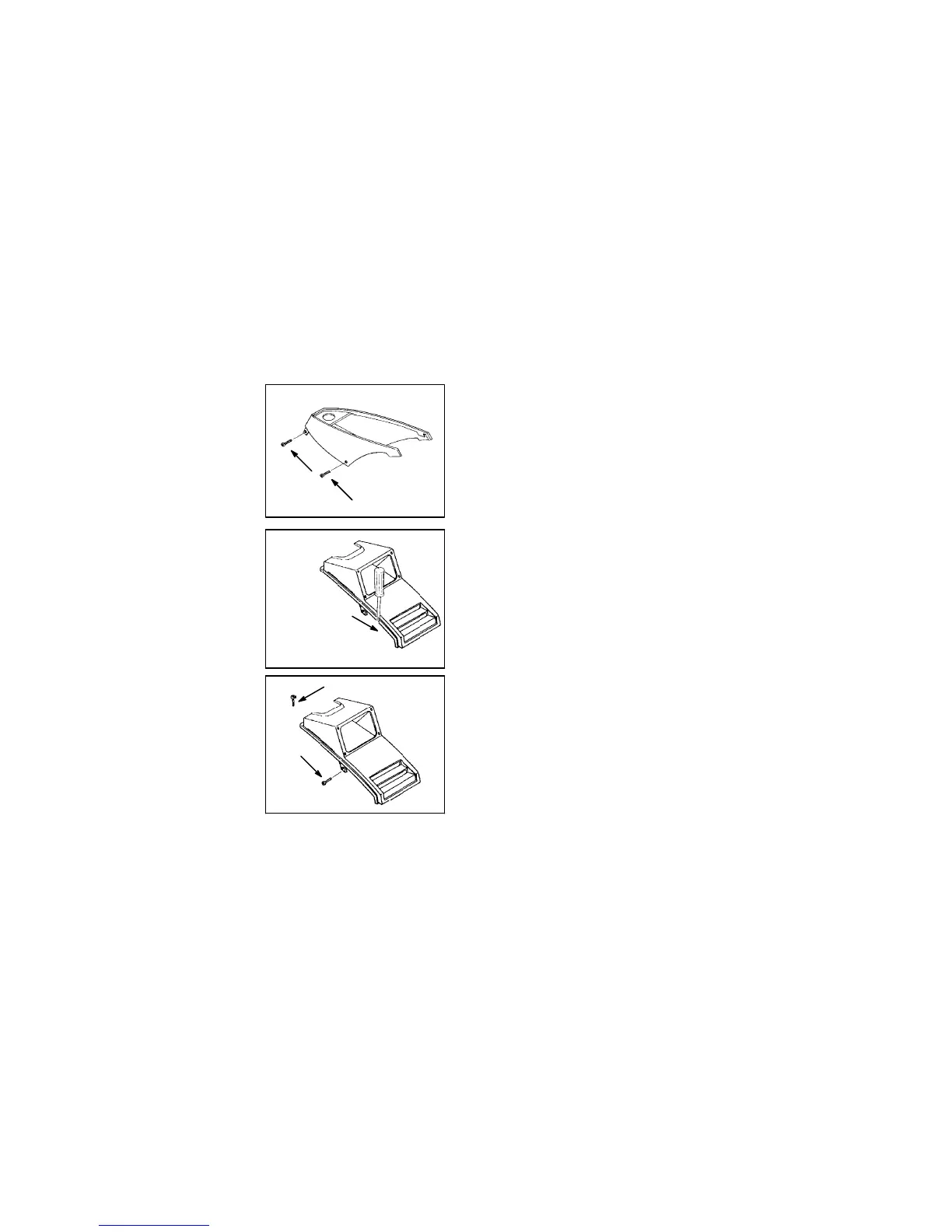

3. & 4.
6.
