Side Panel Removal (Gen IV Models)
Side panel removal may be difficult until the locking tabs and receivers have been
snapped and unsnapped a few times.
1. Remove seat. Grasp rear
ofside panel near rearcab.
With a quick and firm
motion, pull the panel
forward and outward to
disengage the two rear
tabs.
2. Place hand on top of side
panel behind the fuel tank.
With a quick and firm
motion, push down on the
side panel to disengage
thetoprear two tabs. Then
pull up on side panel to
disengage front upper and
lower tab.
3. To reinstall side panel,
align panel tabs with slots
on front cab. Push panel
upward and forward until
tabs lock. Bend rear of
side panel and insert the
two tabs into the rear cab.

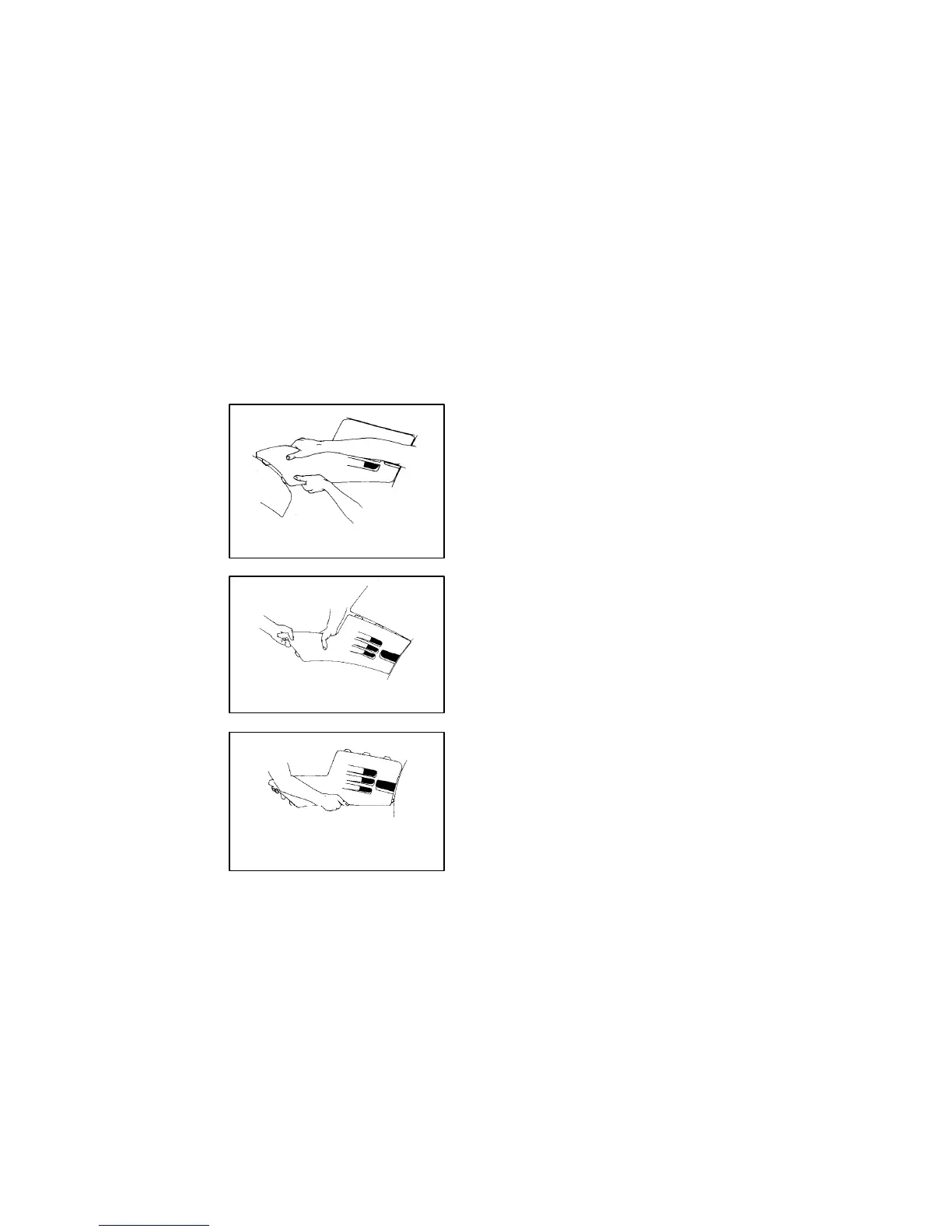

Pull forward and out to disengage
two rear tabs.
Step 1.
Push down to disengage top rear
two tabs.
Step 2.
To reinstall, align panel tabs with
slots. Push upward and forward un-
til tabs lock.
Step 3.
To Next Page
