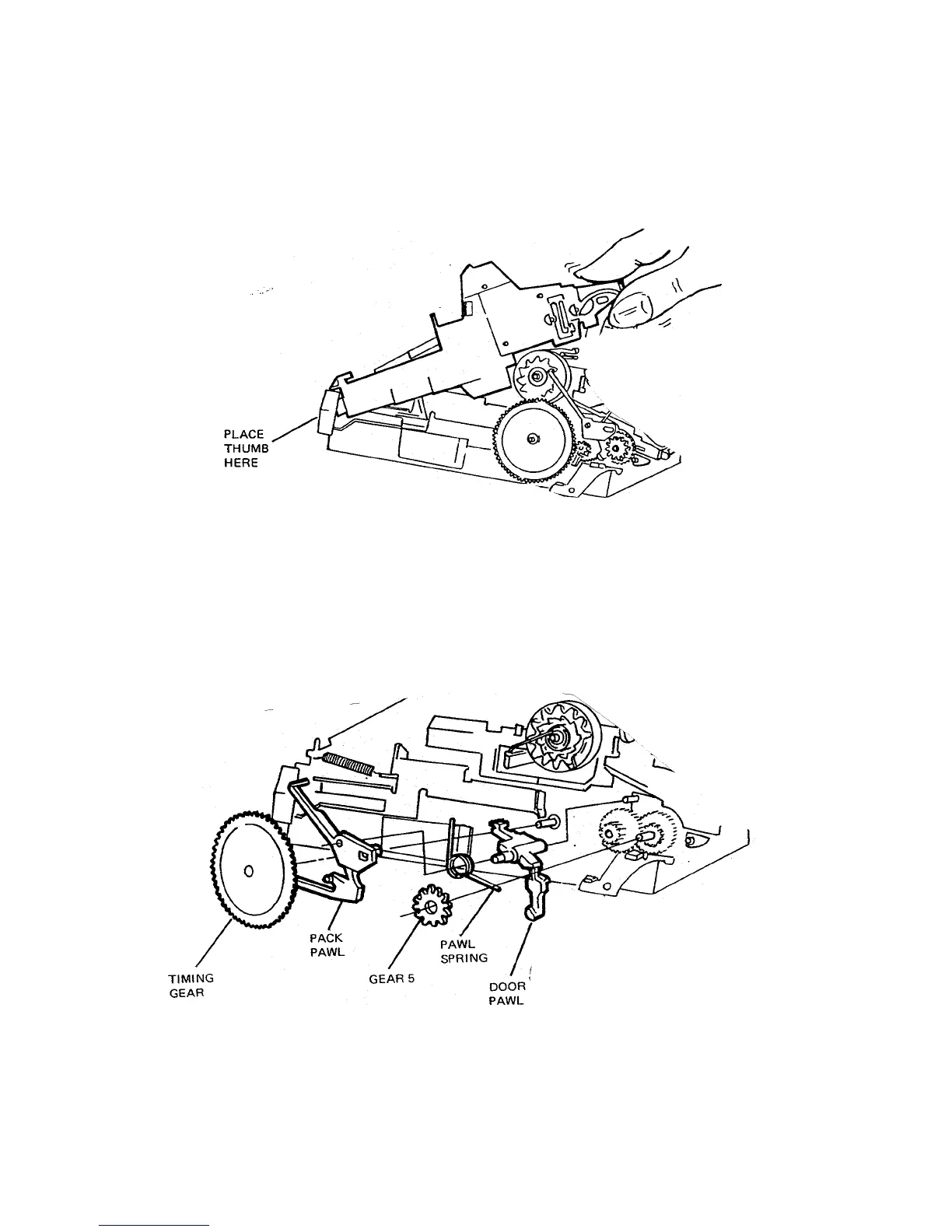

50. Refer to Fig. 41: place your thumb over the left end of the Gear Drive. Slowly and
carefully lift the right end of the Cover. Remove the Cover by walking the left end
free of its detent. Use care to not break the detent.
Fig. 41 Removing the Gear Drive Cover
51. Remove the Timing Gear, Pack Pawl, Pawl Spring, Door Pawl and, if not dislodged
earlier, Gear 5.
Fig. 42 Parts removal from Gear Drive
64

Polaroid 636 Specifications

General

Film Format	600 Film
Lens	Fixed focus plastic lens
Focus Range	1.2m to infinity
Shutter	Electronic shutter
Flash	Built-in flash
Viewfinder	Optical viewfinder
Battery	Integral to the film pack
