59. Set the Counter Spring into the Counter (Fig. 49), wind the Spring, push in the
Slider and place the Counter on its shaft. Temporarily hook the Spring onto the
lower detent. (Note that the number 6 is upside down and facing forward.)
Release the Slider: the Counter should lock into place and the number 7 drop so it is
facing forward (upside down).

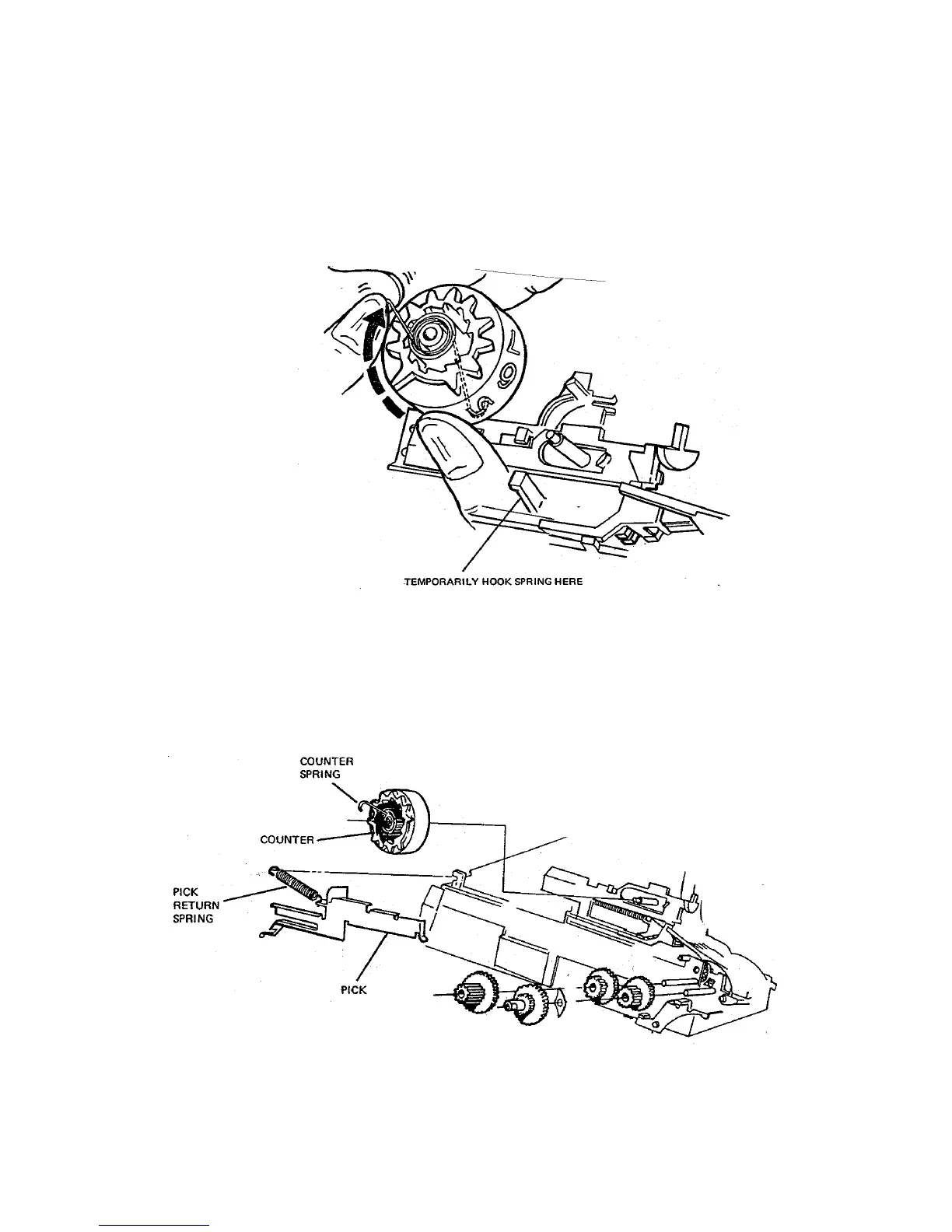

Fig. 49 Replacing the Counter
60. Install the Pack Pawl in the position shown in Fig. 48.
61. Install the Pick, with Return Spring attached, as shown in Fig. 50. Attach Spring to
housing and be sure Pick slides freely.
Fig. 50 Replacing Pick and Return Spring
68

Polaroid 636 Specifications

General

Film Format	600 Film
Lens	Fixed focus plastic lens
Focus Range	1.2m to infinity
Shutter	Electronic shutter
Flash	Built-in flash
Viewfinder	Optical viewfinder
Battery	Integral to the film pack
