62. Install the Timing Gear on its shaft (Fig. 51). It may be installed in any position as
long as none of its cams interfere with the motion of the Pick. (The camera will
time itself in its first cycle.)

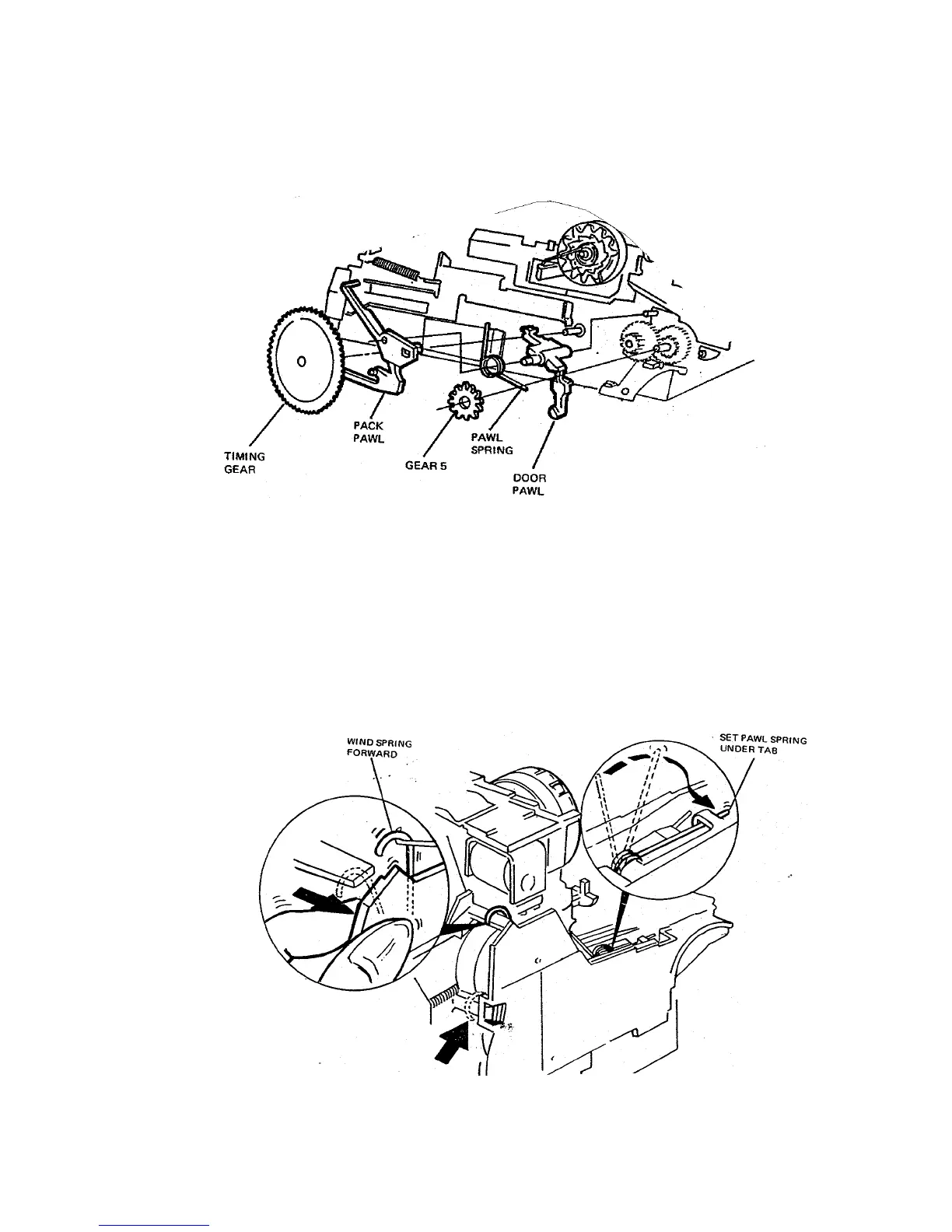

Fig. 51 Replacing the Timing Gear
63. Replace the Gear Drive Cover (see Fig. 41), carefully maneuvering it into place to
prevent breaking the rear (left end) detent. Snap-in the forward detent first, then the
hanger detent, finally the rear detent.
64. Using a dental pick, set the Counter Spring and Pawl Spring as shown in Fig. 52.
Fig. 52 Setting Counter and Pawl Springs
69

Polaroid 636 Specifications

General

Film Format	600 Film
Lens	Fixed focus plastic lens
Focus Range	1.2m to infinity
Shutter	Electronic shutter
Flash	Built-in flash
Viewfinder	Optical viewfinder
Battery	Integral to the film pack
