Polaroid 636 User Manual

65. Replace any Contacts and parts removed from the Gear Drive Cover in steps 43 -
47. Reconnect the (+) battery wire to the S10 fixed contact and the Contact
Support Block, and the red jumper wire to the S10 movable contact (see Fig. 53).

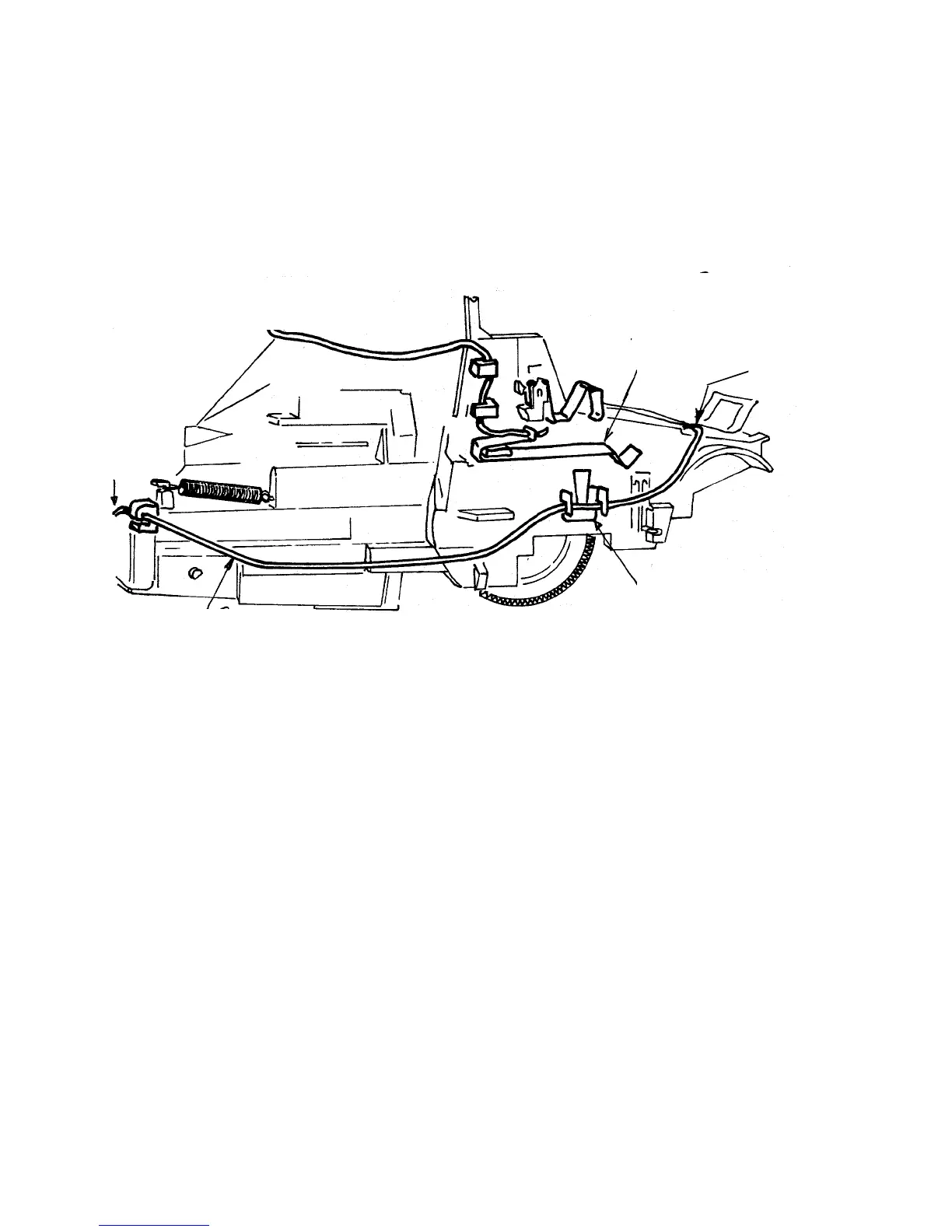

Fig. 53 Reconnecting wiring to contacts
To + Battery
Contact
To wire
block
S1 Leaf
Spring
S10 Moveable
Contact
To contact
support block
S10 Fixed
Contact
Bare wire
70

Polaroid 636 Specifications

General

Film Format	600 Film
Lens	Fixed focus plastic lens
Focus Range	1.2m to infinity
Shutter	Electronic shutter
Flash	Built-in flash
Viewfinder	Optical viewfinder
Battery	Integral to the film pack
