Polaroid P420T

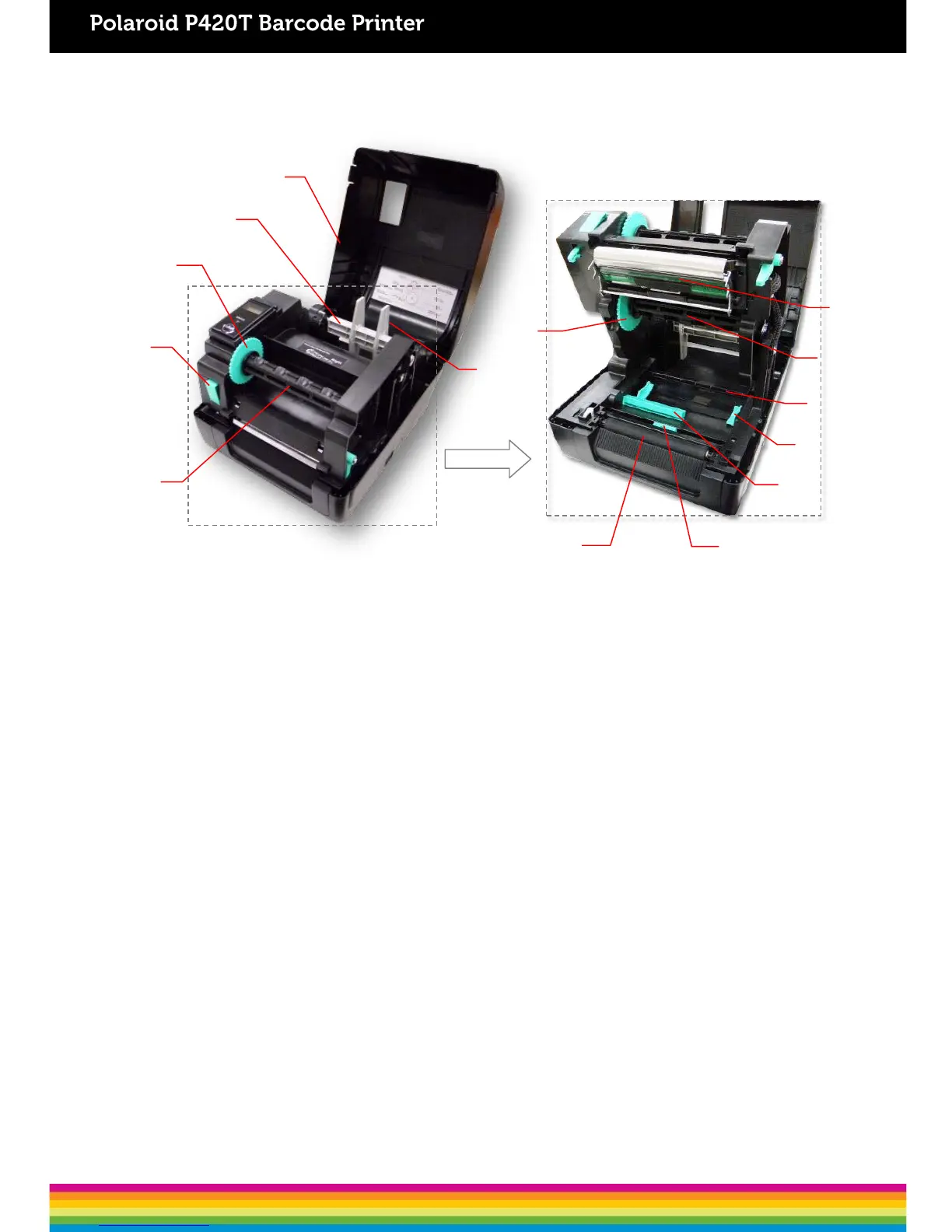

2.2.2 InteriorView
1. Printer top cover
2. Media supply spindle
3. Ribbon rewind hub
4. Print head release button
5. Ribbon rewind spindle
6. Fixing tab
7. Ribbon supply hub
8. Platenroller
9. Black mark sensor
10. Gapsensor
11. Mediaguide
12. Mediabar
13. Ribbon supply spindle
14. Print head
13
9
5
6
4
OPEN
10
12
8
11
1
2
3
14
7
8
