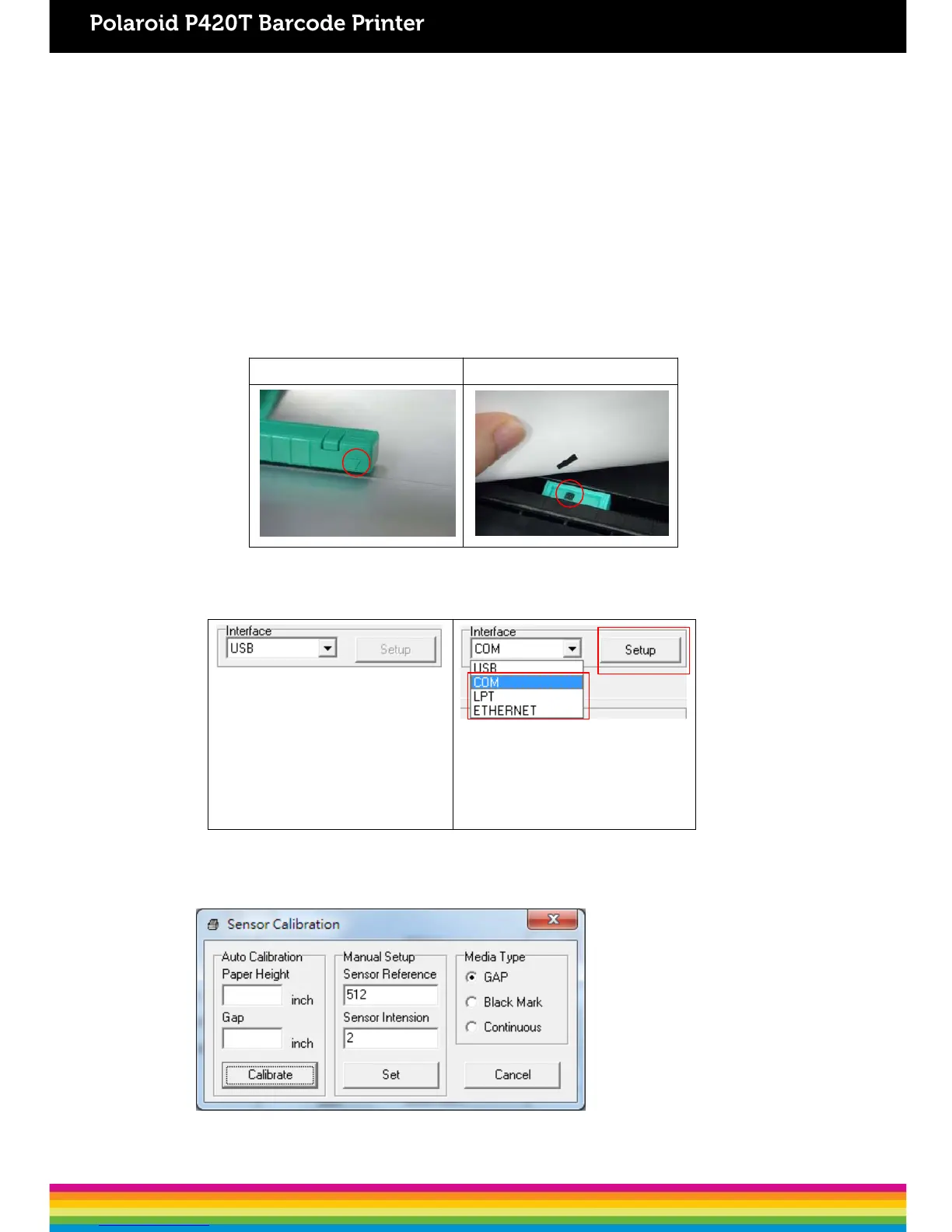

5.3 Calibrating Media Sensor by Diagnostic Tool
5.3.1 Auto Calibration
1. Make sure the media is install ready and print head mechanism is closed. (Please refer to
section3.3.)
Note: The media sensor position is adjustable. Please ensure that the gap (▽) or
black mark is at the location where media gap/black mark will pass through for
sensing.
Gapsensor Black mark sensor
2. Switch on the printer
3. Open Diagnostic tool and set the interface. (The default setting is USB.)
4. Click the “Calibrate Sensor” button.
5. Select the media type and click the “Calibrate” button.
1
2
2
1
