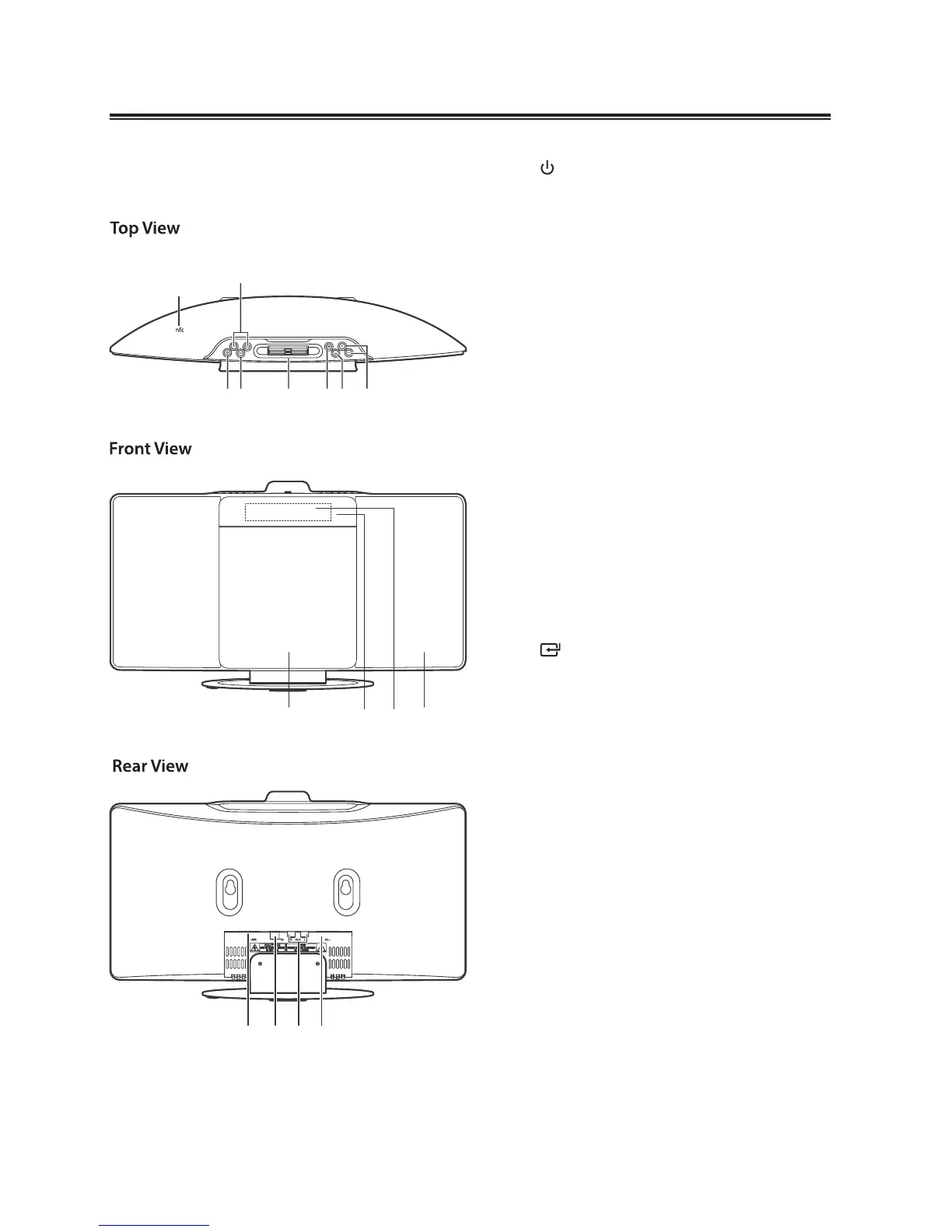

Identifying the Parts
Main Unit
1 NFC Sensing Area
2
Switch the unit between ON and Standby
mode.
3
BF
Play/pause/resume playback in Bluetooth/
CD/DOCK mode.
Activate the pairing function in
BLUETOOTH mode and disconnect the
existing paired Bluetooth device.
Conrm a selection.
4
H
/
G
In CD/DOCK/BT mode: Skip to previous
track/skip to next track.
In CD/DOCK mode: Press and hold search
backward/forward within a track/disc.
In FM mode:
Search radio stations manually, press and
hold the button to search automatically.
5 DOCK for iPod/iPhone
Load an iPod/iPhone ( Lightning®
connector models only)
6
Select the play function.
7
K
Open and close the disc compartment.
8 VOL+/VOL-
Increase/decrease the volume level.
9 Display
Show current status.
10 Disc Compartment
11 IR (Remote Control Sensor)
Receive the signal from the remote
control.
12 Speakers
13 Wall hanging points
14 FM wire antenna
15 AUX (R L) Socket
Connect to an external audio device.
16 AC~ Connect to power cord.
