Fig. 3
50cm clearance at back to
allow for air outlet hose.
50cm clearance required for air inlet.
5
USER MANUAL
Thank you for selecting our quality air conditioner. Please be sure to read this user manual
carefully before using. Any question, please contact the professional service for help.
50cm
50cm
50cm
INSTALLATION

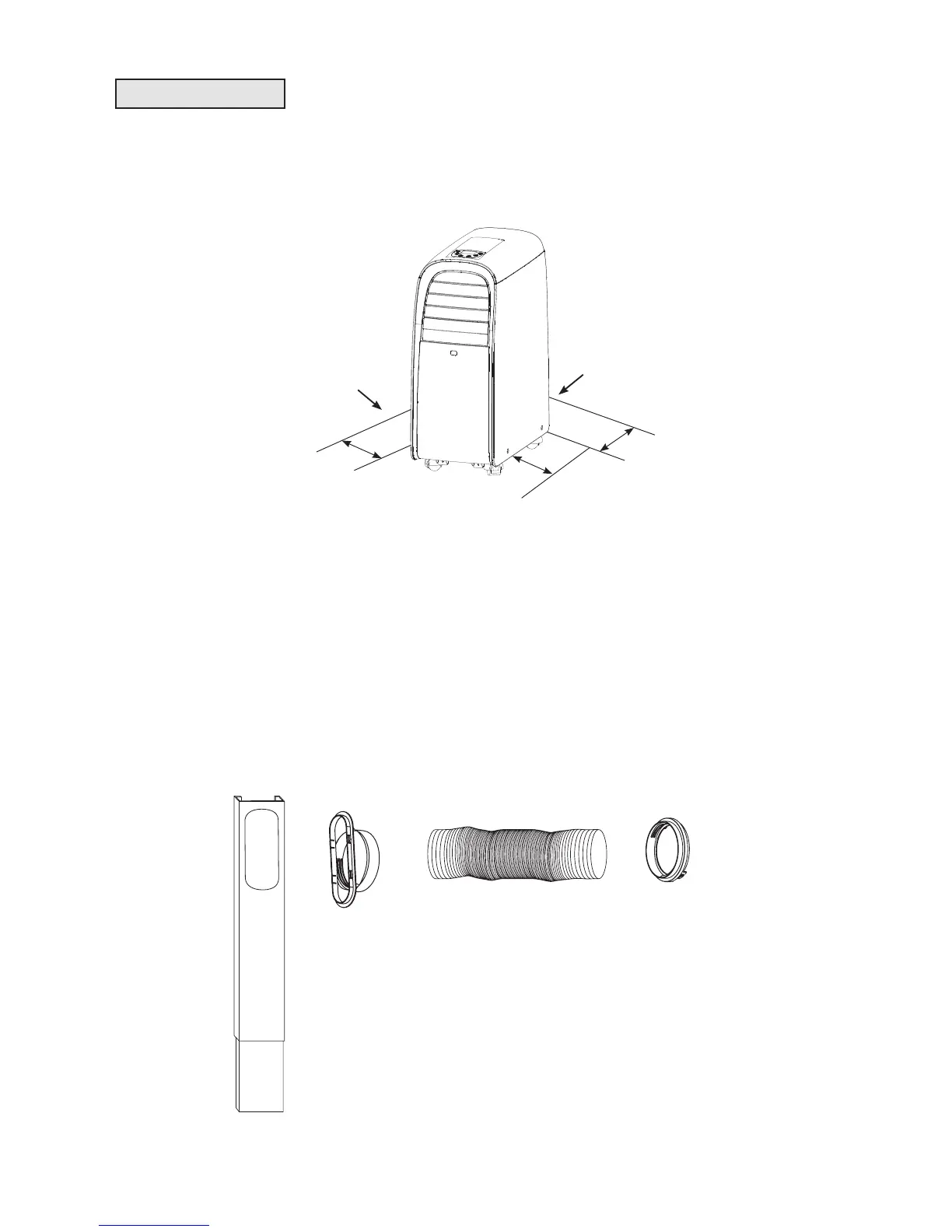

SELECTION OF INSTALLATION LOCATION (Fig.3)
Place the portable air conditioner in a at location where the air inlets and outlets cannot be covered up. Place the unit no less
than 50cm away from a wall or other obstacle. In addition a minimum 50cm clearance is required from all faces of the air
conditioner including the rear face.
window
slider
hose
outlet
hose hose
inlet
ASSEMBLY OF EXHAUST HOSE, HOSE INLET, HOSE OUTLET AND WINDOW SLIDER
• Fully extend each end of the exhaust hose by about 10cm and attach the hose inlet and hose outlet to opposite ends by
rotating the inlet/outlet in a counter clockwise direction approximately 3 to 4 turns, making sure that the hose wire is
well threaded into the hose inlet and outlet. The hose inlet and outlet cannot be installed unless the hose ends have been
fully extended.
• Clip the hose outlet into the window slider. Take care to not break the tabs on the hose outlet when disconnecting from
the window slider.
