Poly Voyager Office Base User Manual

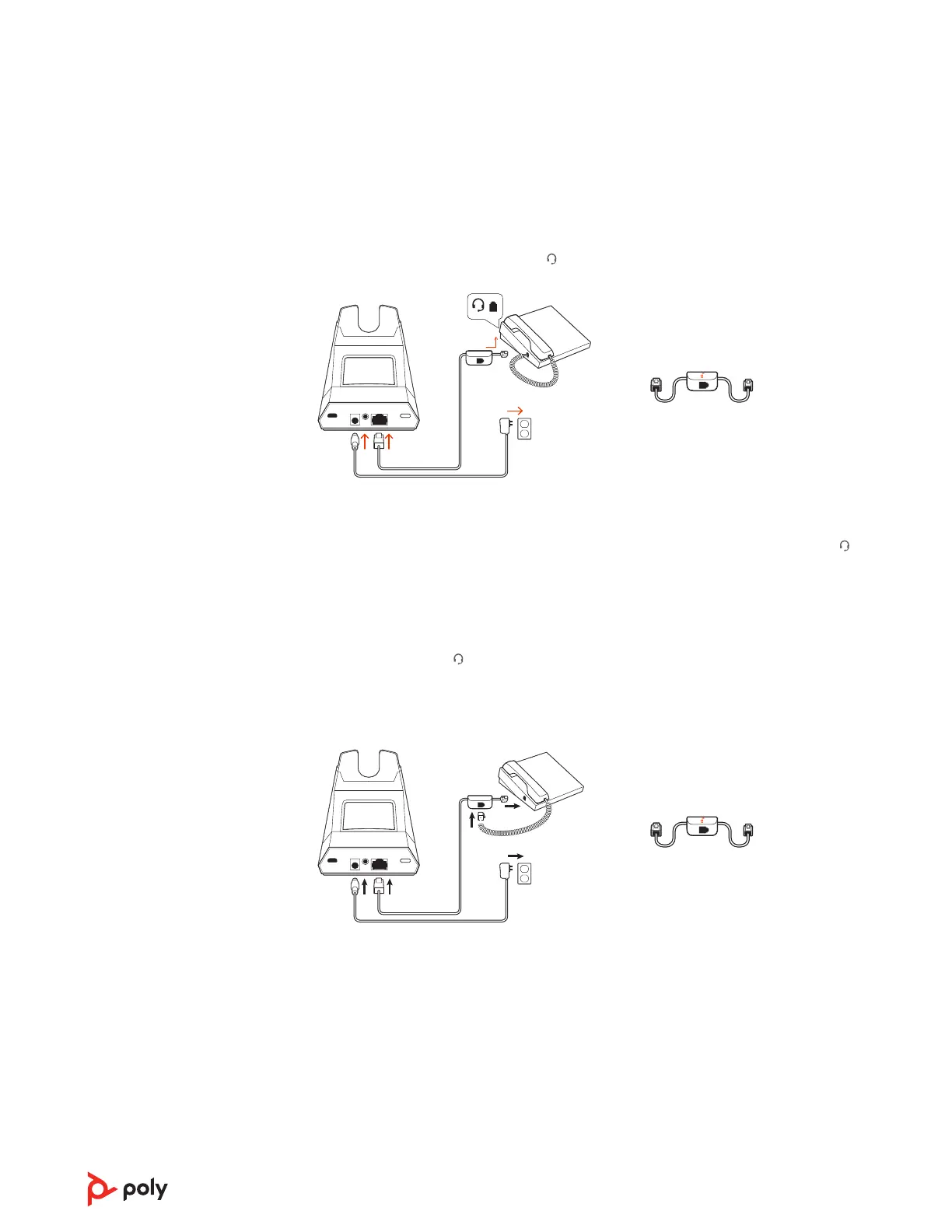

Choose a desk phone setup A, B, C or D and connect cables.
A Desk phone with dedicated headset port
USE
• Connect one end of the telephone interface cable to the back of the base
• Connect the other end of the telephone interface cable into the dedicated headset
port on the desk phone
IMPORTANT Cisco phones use configuration D on the bottom of the base. Most other
phones use default configuration A.
NOTE Use this setup if you are not using the HL10 lifter or EHS cable. In this configuration,
press both the headset
button on your desk phone and the call control button on the
headset to answer or end calls.
B Desk phone (standard)
USE
• Connect one end of the telephone interface cable to the back of the base
• Disconnect the handset coil cord from the base of the desk phone and re-connect it to
the telephone interface cable junction box
• Finally connect the remaining end of the telephone interface cable into the open
handset port on the desk phone
IMPORTANT Cisco phones use configuration D on the bottom of the base. Most other
phones use default configuration A.
NOTE Use this setup if you are not using the HL10 lifter or EHS cable and your desk phone
does not have a dedicated headset port. In this configuration, manually remove the handset
on your desk phone and press the call control button on the headset to answer or end calls.
