Polycom SoundStructure C8 Hardware Installation Guide

Installing The SoundStructure C16, C12, C8, And SR12
2 - 3
Rear Panel

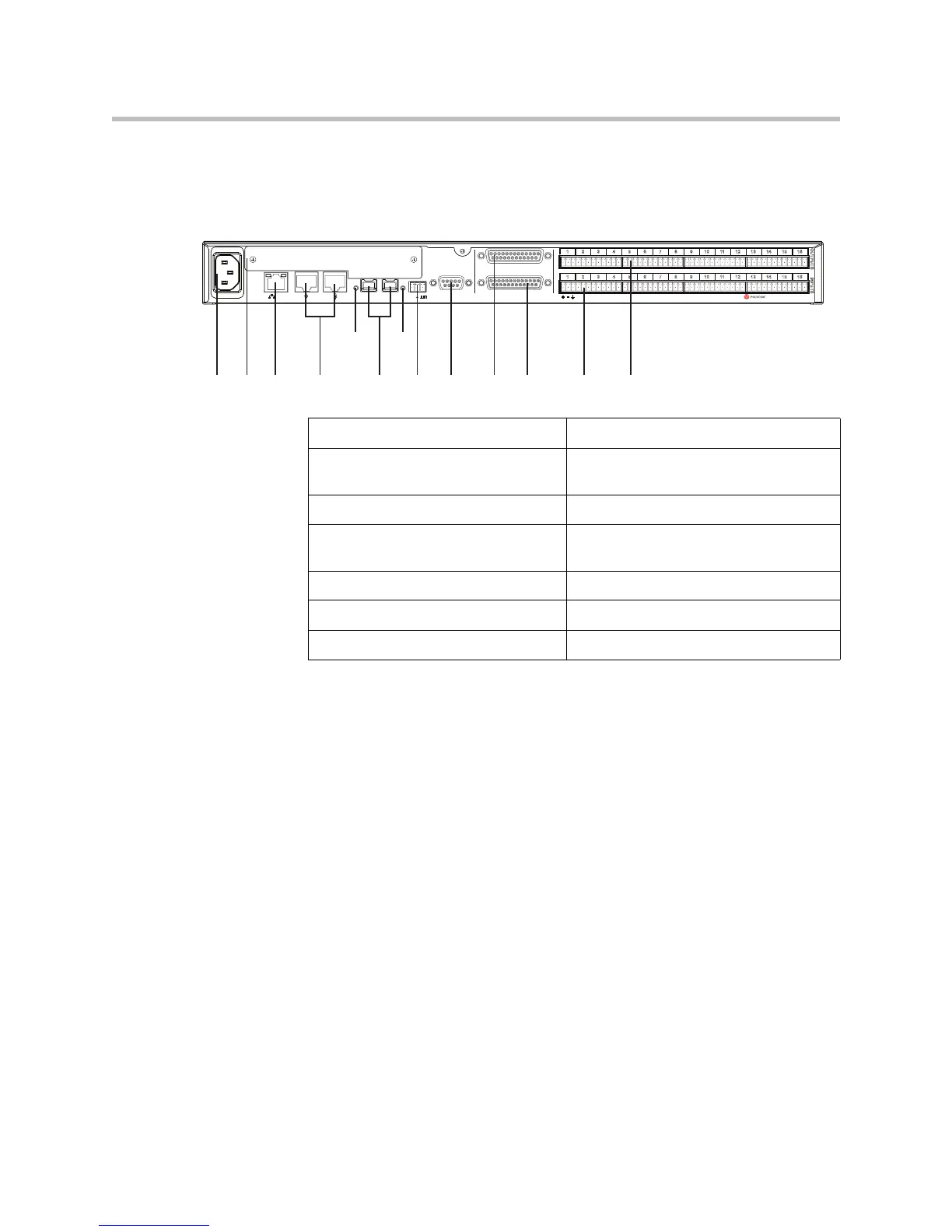

The rear-panel of the Polycom SoundStructure C16 is shown in the following
figure.
Installing The Hardware
To install a SoundStructure device, follow these steps:
• Install optional plug-in card. (See page 2-4.)
• Mount the SoundStructure device onto an equipment rack or other
location. (See page 2-6.)
• Connect to LAN for control management. (See page 2-7.)
• Use Conference Link2 to connect to Polycom HDX system. (See page 2-7.)
• Use OBAM to connect multiple SoundStructure devices. (See page 2-10.)
• Connect IR port to optional receiver and/or RS-232 to control system. (See
page 2-13.)
• Connect other devices/equipment using analog input/output. (See page
2-15.)
• Connect optional logic devices. (See page 2-16.)
1
AC power connection 8 IR receiver interface
2 Expansion slot for SoundStructure
plug-in cards
9 RS-232 interface
3 Ethernet interface 10 Logic input and output connector
4 Conference Link2 (CLink2)
interface
11 Logic input and output connector 2
5 OBAM input status LED 12 Balanced audio input connectors
6 OBAM input and output ports 13 Balanced audio output connectors
7 OBAM output status LED
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
LAN
C-LINK2
OBAM IR
RS-232
REMOTE CONTROL 2
IN OUT
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
OUTPUTS INPUTS
SoundStructure C16
TM
12V
REMOTE CONTROL 1
1 3 4 6
7
82 9 11 12 1310
5

Polycom SoundStructure C8 Specifications

General

Brand	Polycom
Model	SoundStructure C8
Category	Conference System
Language	English
