Polycom Visual Concert VSX User Manual

Administrator’s Guide for the VSX Series
2 - 2

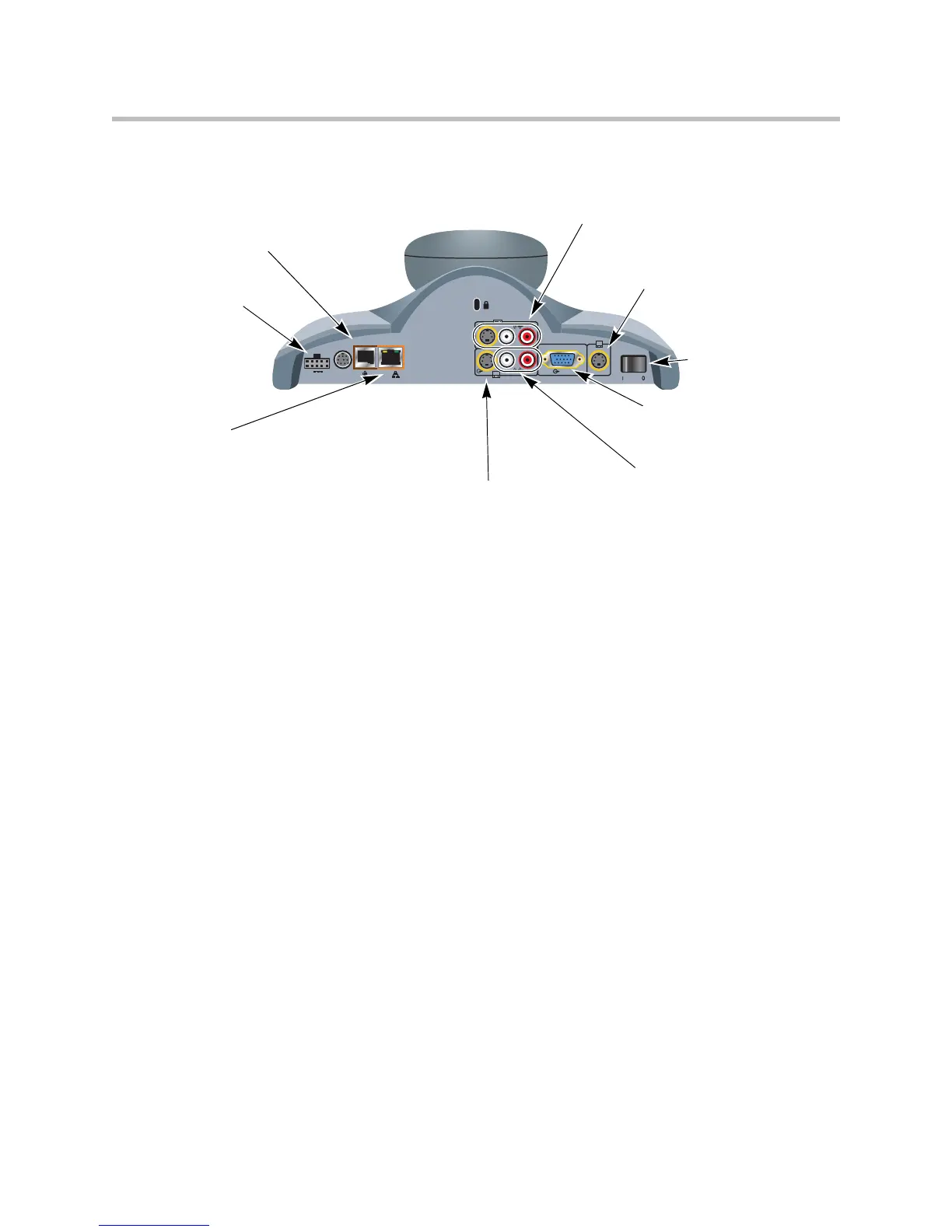

VSX 5000 Back Panel
101010
LAN
1
2
24V 3A
VGA
Power connector
For power supply
LAN port
For IP or SIP calls,
People+Content IP,
and VSX Web
Conference link
For Polycom microphone,
SoundStation VTX 1000, or
Visual Concert VSX
VGA output from system
For VGA monitor or projector
VCR/DVD input to system
For VCR/DVD to play
content into calls
Power switch
Audio output from system
For main monitor audio, or
for external speaker system
S-Video output
from system
For main monitor
S-Video output from system
For second S-Video monitor
