Polycom Visual Concert VSX User Manual

Setting Up Your System Hardware
2 - 5

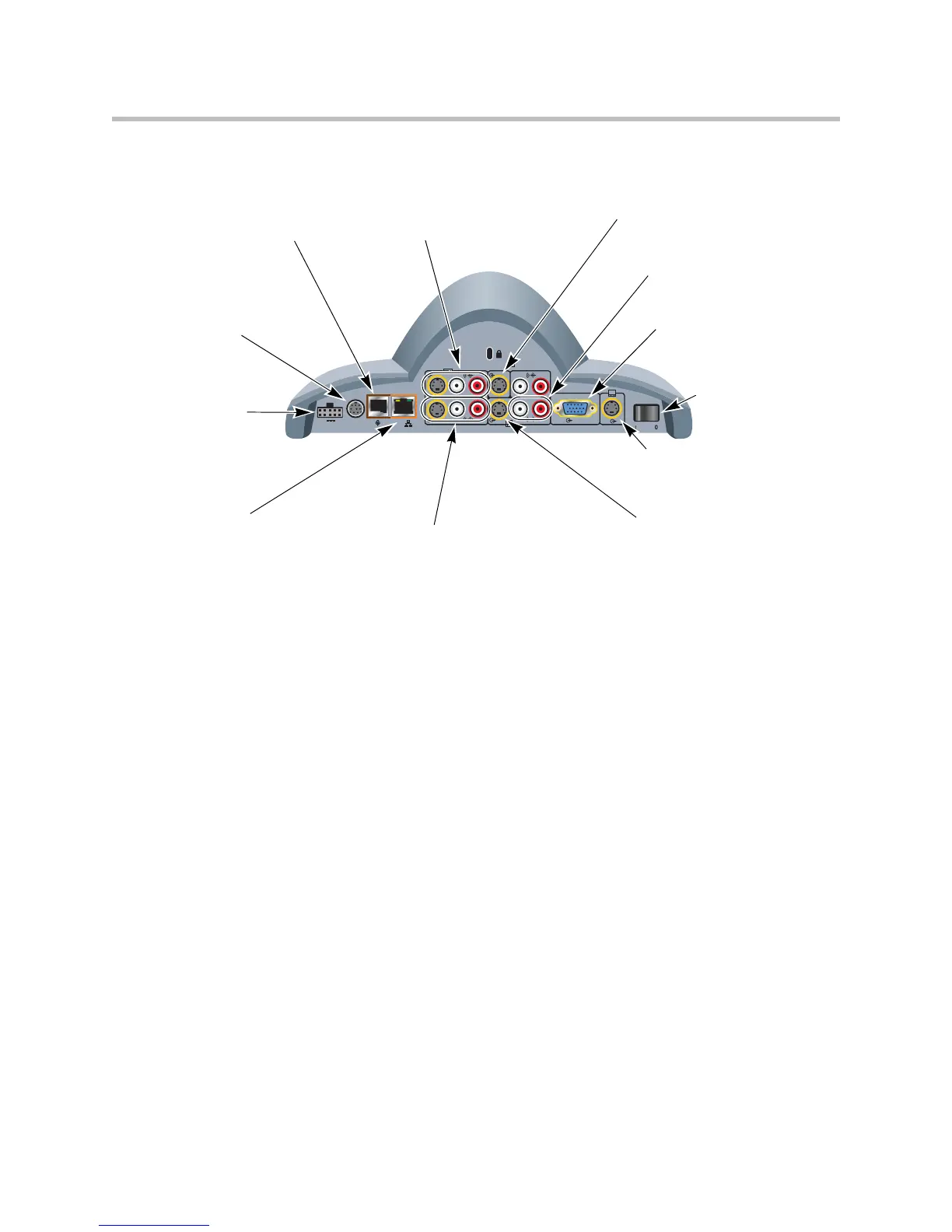

VSX 7000s Back Panel
101010
LAN
1
2
24V 3A
VGA
2
Power connector
For subwoofer
(houses power
supply and optional
network interface
module)
LAN port
For IP or SIP calls,
People+Content IP,
and VSX Web
Conference link
For Polycom microphone,
SoundStation VTX 1000, or
Visual Concert VSX
VGA output from system
For VGA monitor
or projector
VCR/DVD input to system
For VCR/DVD to play content
into calls
Power switch
S-Video output from system
For second S-Video monitor
Audio output from system
For external speaker system
VCR/DVD output from system
For VCR/DVD to record calls
S-Video input to system
For additional camera
S-Video output from system
For main monitor
RS-232 serial port
For touch panel, second
camera control, or other
RS-232 device
