POMCube iCAN NetZero Plus Series - Page 29

25
(3)

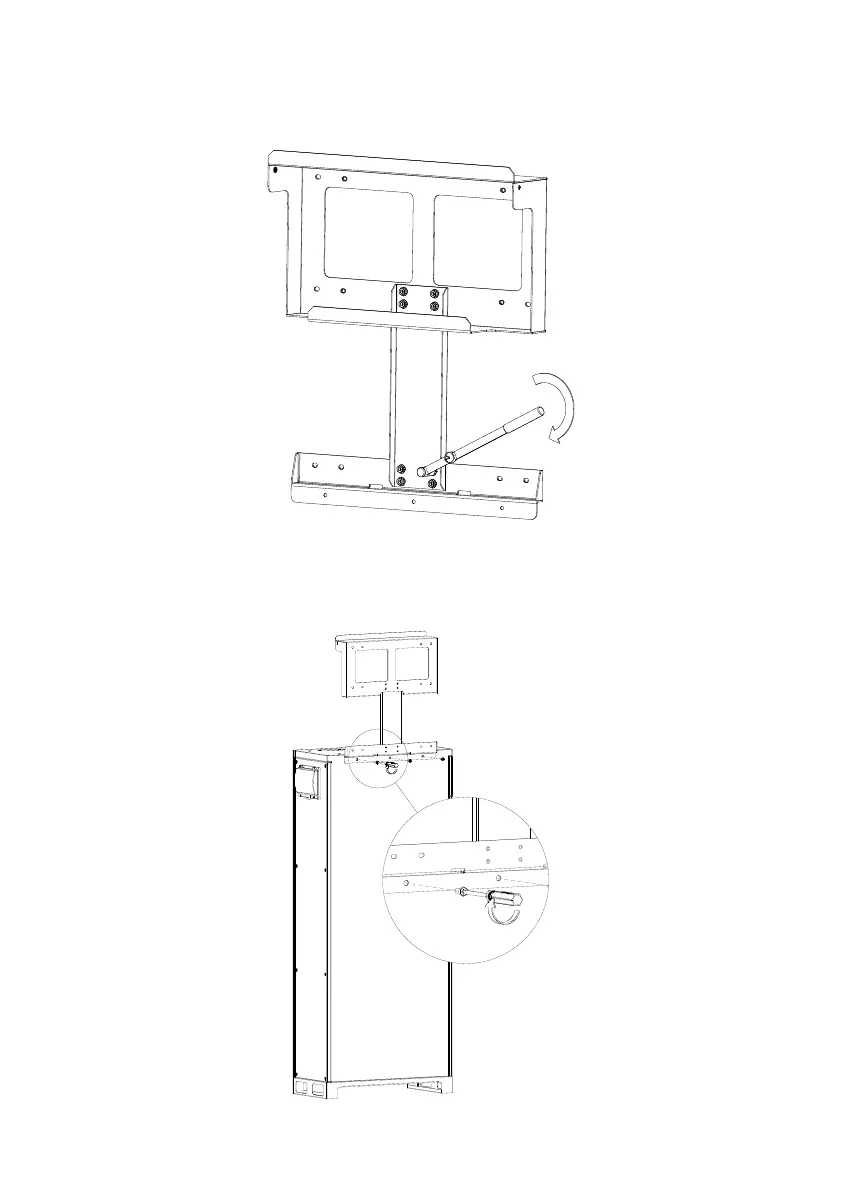

Assemble the bracket using M5 nuts. (Follow instructions in Section 5.2.(11)
if Universal PCS and battery cabinet are to be separately installed.)
Assemble the bracket
(4)
Attach the bracket to the back side of the battery system with M8x16 machine
screws (Torque: 5 N·m).
