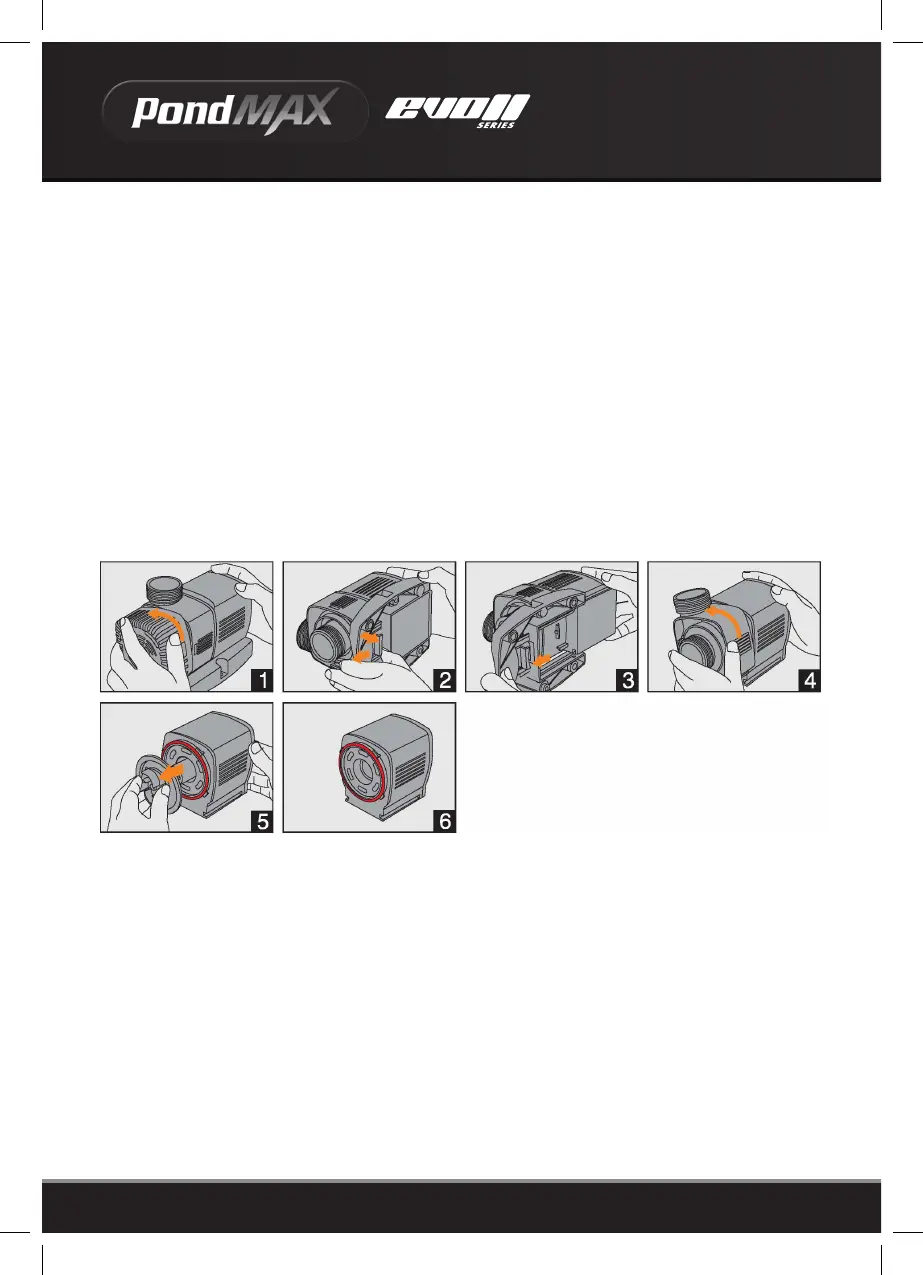

1. Turn the Front Filter Screen in the direction as indicated by the arrow, then pull away from Pump Motor Body.
2. Locate snap-fit release under Base Plate using the arrows above. Using your thumb, apply pressure and unclip Base
Plate until it releases from Pump Motor Body.
3. Remove Base Plate by pulling away from pump motor in the direction of arrow above.
4. To remove the impeller of the pump, turn the Impeller Cover Housing in an counterclockwise direction as indicated
by the arrow above, to the stop position. Then separate the Impeller cover from the Pump Motor Body.
5. With one hand gripping the Pump Motor Body, secure grip of other hand tightly on the fins of the Impeller and pull
out the Impeller assembly (take care not to break ceramic shaft.) The black disc behind the fins of Impeller is part
of the Impeller assembly. Clean the Impeller with water and vinegar and a suitable brush taking note to remove fine
sediment on and around the back end of the Impeller, the small hole through the ceramic shaft and the chamber the
Impeller fits into on the Pump Motor Body. (Always inspect the Impeller and replace the Impeller if it seems
necessary.)
6. Ensure to replace the O’ring as shown above when reinstalling the Impeller.
(See “IMPORTANT NOTES” section below for reassembly instructions)
CLEANING INSTRUCTIONS
Begin by ensuring that the main power supply is disconnected before attempting any maintenance of the unit or the
water body. Remove the unit from the water. Please clean regularly (at least once a month) to ensure strong water flow.
Failure to maintain the unit could result in a burnt out motor and other damage.
• All PondMAX Skimmer & Water Feature Pumps
are water cooled. If pump becomes restricted
or blocked, it may overheat and could cause
permanent damage.
• The motor unit of the pump is encapsulated with
epoxy resin and does not need lubrication.
Regular inspections, cleaning and maintenance of
impeller is necessary to ensure longer life. In the
center of the impeller you may notice a small hole
opening that protrudes through the ceramic shaft
from front to back. It is important that this
opening is kept unblocked at all times. This is a
cooling channel for the motor.
• To unclip the front filter screen from the front of
the pump, twist the cage in a counterclockwise
direction and pull forward. See below for diagram.
• Now with the Front Filter Screen off, go ahead
and clean the screen. Make sure. Examine the
openings in screen to ensure all are unblocked.
Clean with a suitable brush if necessary.
