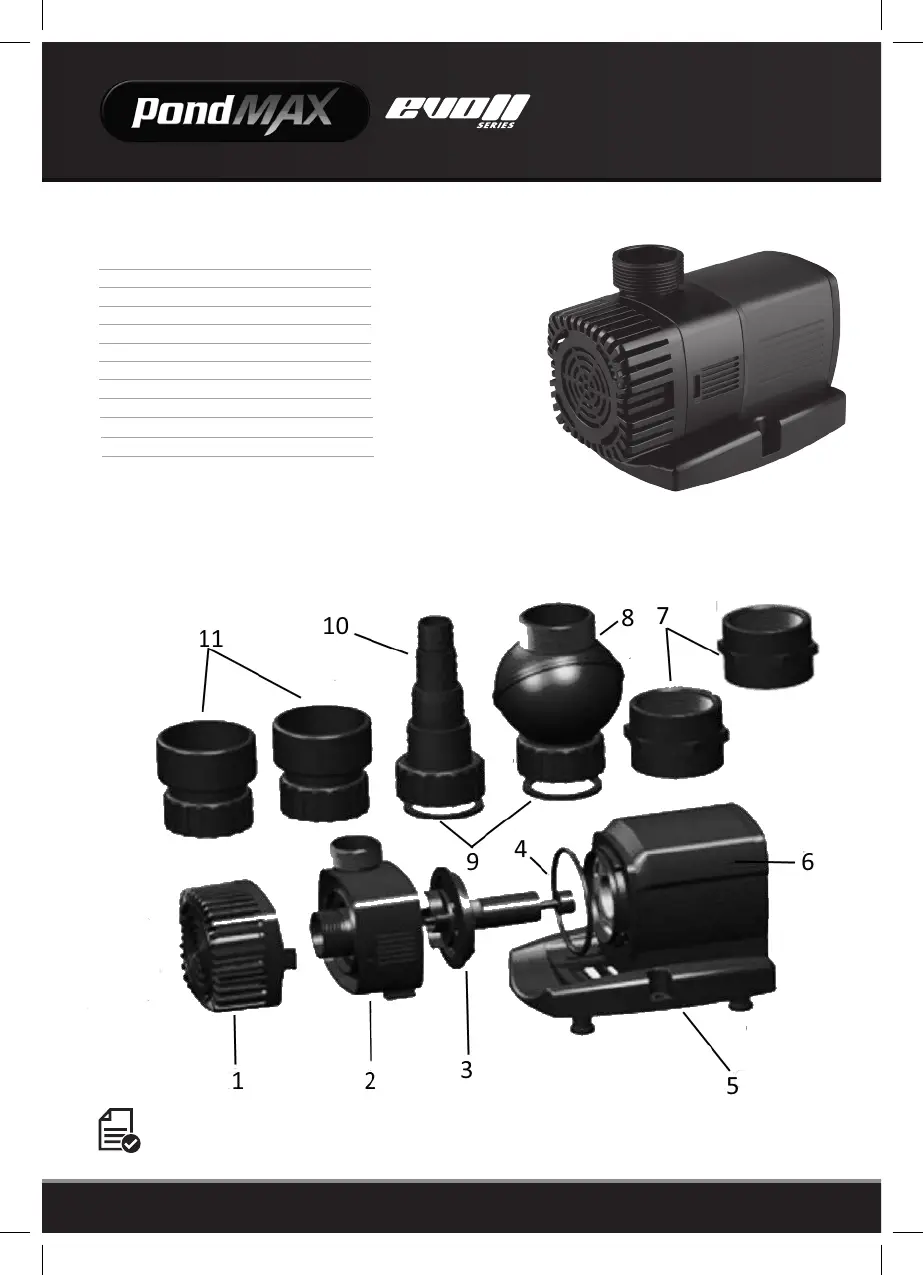

EXPLODED VIEW
NOTE: Parts and features differ from model to model.
All images used are for illustrative purposes only. Not
all features depicted apply to all models in the range
and these are subject to change.
IMPORTANT
These accessories and attachments are recommended for use with your PondMAX product specified in this manual. The use of any other accessories or attachments
might present a risk of injury to persons. Only use the accessory or attachment for its stated purpose.
Front Filter Screen (EV1800) (EV2400-EV3600)
Impeller Cover Housing
Impeller Assembly
Impeller O-Ring
Base Plate with Rubber Feet
Pump Motor Body
1-1/2" Coupling Fitting X2- for Inlet & Outlet
Swivel Ball Joint Fitting
1
2
3
4
5
6
7
8
9
10
11
PMAX US EVOII 1800_2400_3000_3600 Pump Instructions.indd 8 30/9/16 6:27 am
3/4”, 1”, 1-1/4” & 1-1/2” Barbed Hosetail with Locking Nut
SCH. 40 Adapter with Locking Nut- 1 1/2” Slip X2
Washers - for Locking Nuts (Red)
