2. Description

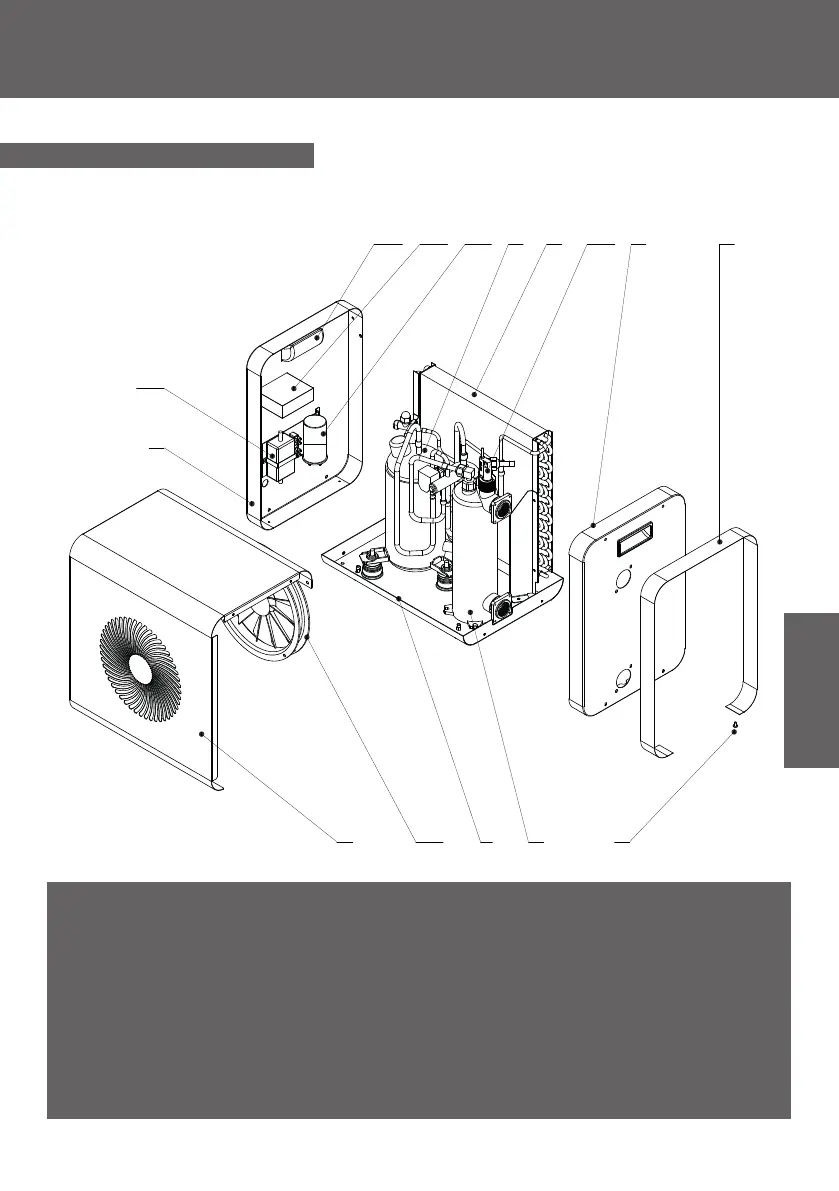

2.5 Exploded view
14 13 11 7 8 10 3 5
115 9 64
2
12
1. Base frame
2. Left side panel
3. Right side panel
4. Front panel
5. Decorative belt
6. M4 screw
7. Compressor
8. Evaporator
9. Heat exchanger
10. Water Flow Switch
11. Compressor capacitor
12. Electrical terminal block
13. Control panel
14. hand grip
15. Fan motor
