3

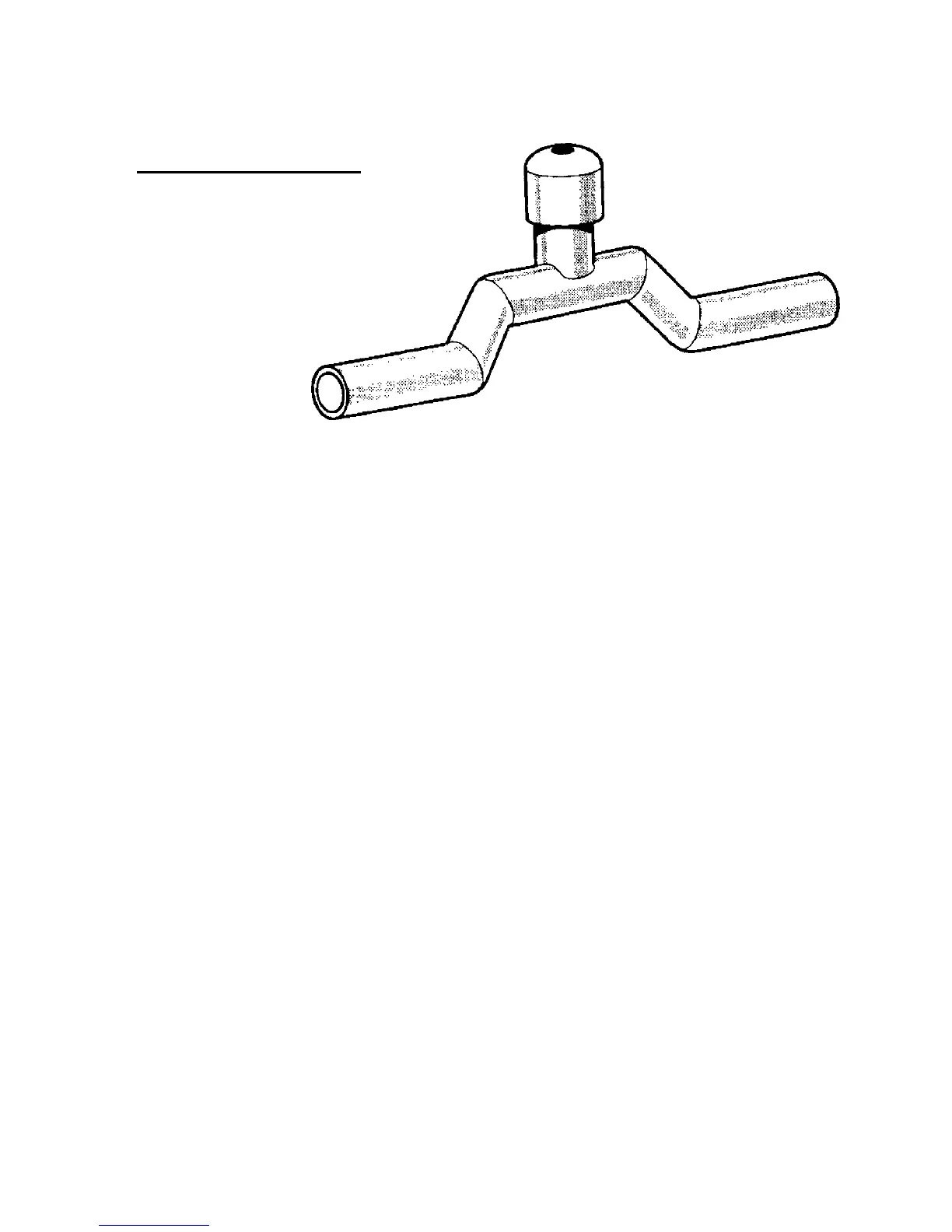

The diagram below shows the general arrangement for this loop.
Vented Loop
Warning: The Warranty will be void if the cell is not installed exactly as specified.
SURECHLOR POWER PACK
The Power Pack Enclosure is approved and rated to Degree Of Protection IP24 and
therefore can legally be installed in the Pool Zone as defined in the AS/NZS 3000
Wiring Rules. It must be mounted on a vertical wall or fence within 1.5 metres of the
cell and at least 1 metre above the ground. Also, it must be in a position to allow its
supply lead to be plugged into a 10 amp 240 volt power point.
Remember the filter pump must be plugged into this Power Pack.
Start by selecting a suitable place to attach the Mounting Bracket using the two screws
provided. The Mounting Bracket must be fixed with the screws horizontal and the vent
louvres above the screws facing upwards.
If no suitable wall is available, then install a 100mm x 100mm hardwood post with a
vertical mounting board 400mm wide x 300mm high x 18mm thick attached.
Hook the Power Pack onto the Mounting Bracket by the top edge at the rear of the box.
When secure, plug the power lead into a suitable 240 volt power point but do not switch on.
