INSTALLATION INSTRUCTIONS
OWNERS MANUAL
Please hand this Owner’s Manual to the pool owner after installation is completed as it
contains the Warranty Card and vital information for correctly maintaining the pool and
this product!
SURECHLOR CELL
Ideally, the electrolytic cell
should be installed in a position
with 1.5 metres of a vertical wall
or fence to allow the Power
Pack to be easily mounted
without the need to provide an
additional post.

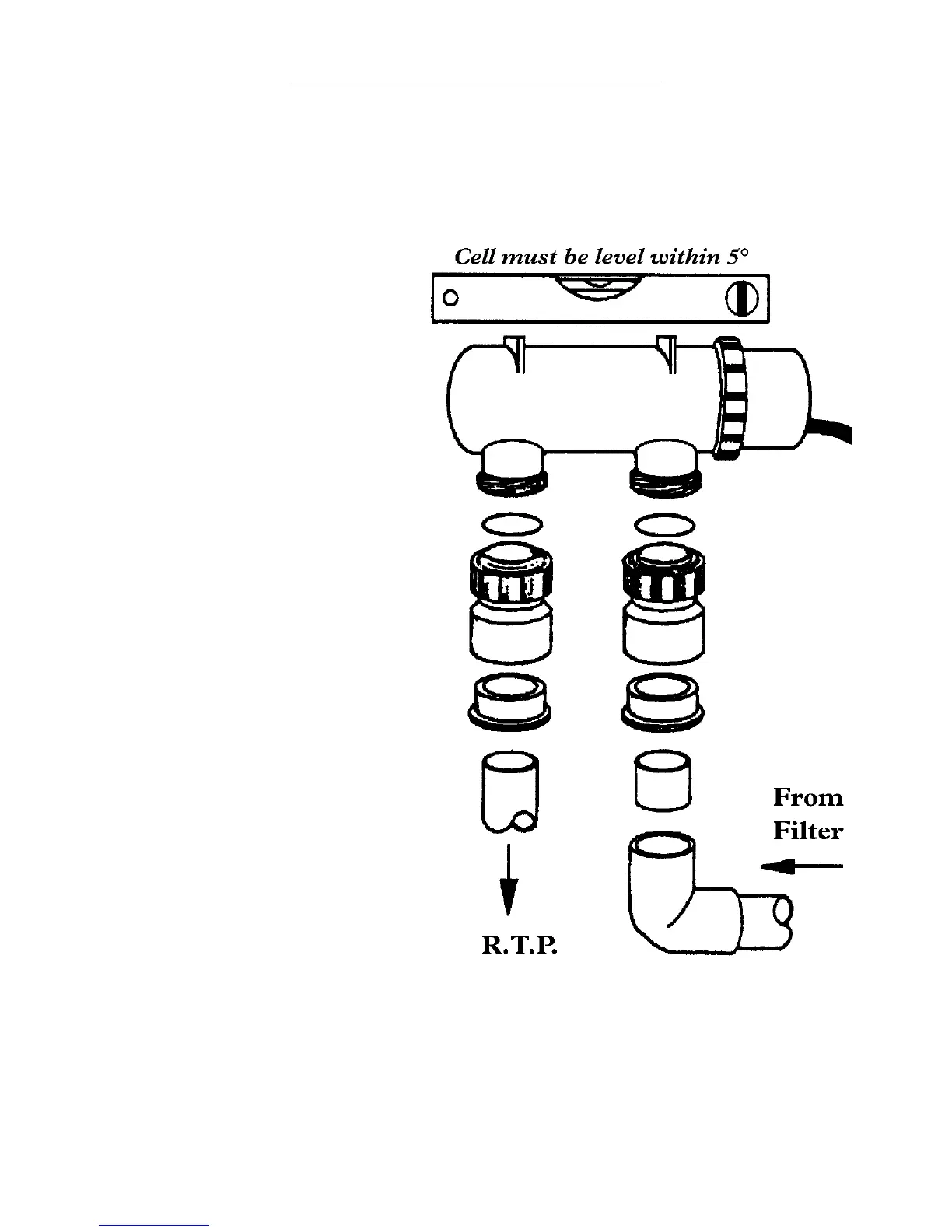

The cell must be installed
horizontally (level) within 5°, in
the return to pool line, with the
two plumbing ports and arrow
on label pointing down.
The water can flow in either
direction through the cell.
Heaters and other equipment in
the return to pool line must be
before the cell i.e. between the
cell and filter.
If an air blower is fitted to an air
inlet for venturi jets, precautions
must be taken to prevent gases
generated in the Surechlor cell
from accumulating in the blower
and associated pipework.
The recommended way of achieving this is to install an inverted loop in the air line with
a 3mm (max.) diameter hole in the top venting to atmosphere.
