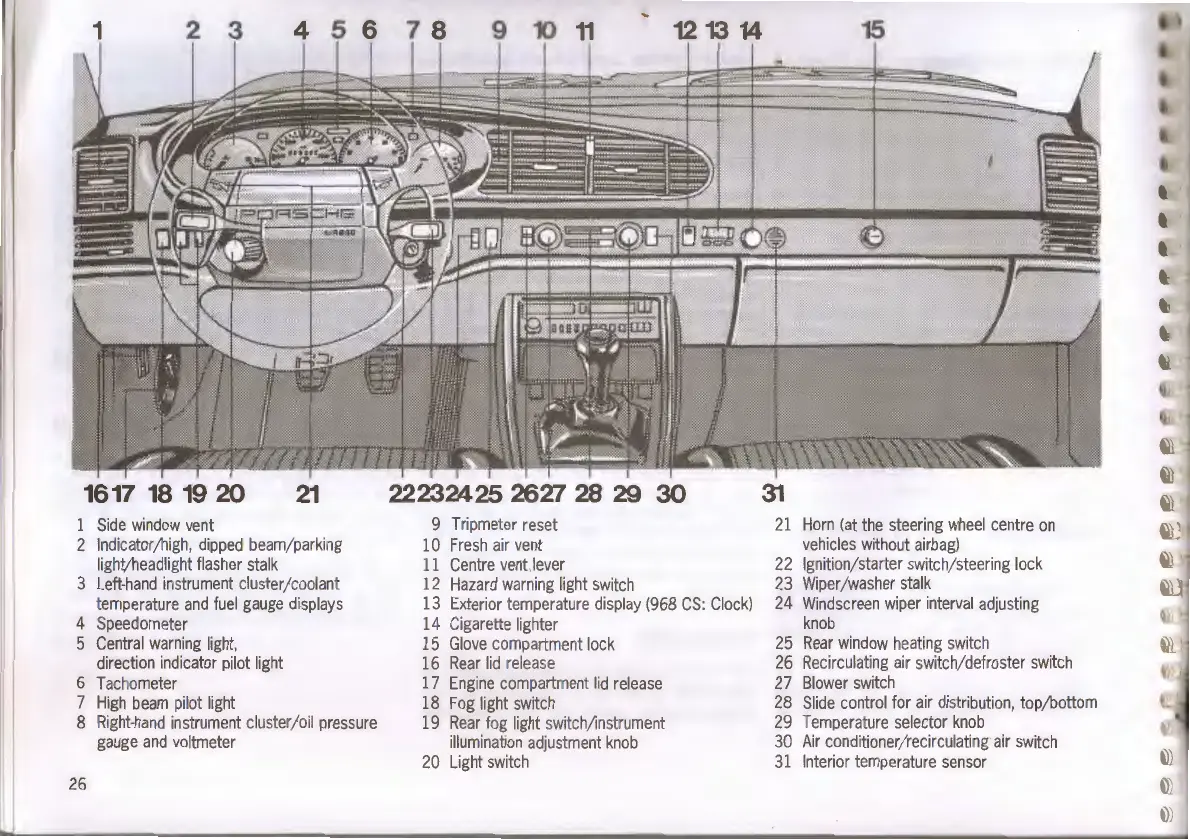

Porsche 968 - Instruments and Controls Overview; Dashboard Control Identification

1617 18 19 20 21 22232425 2627 28 29
30 31
1 Side window vent
9 T ripmeter reset 21 Horn (at the steering wheel centre on
2 Indicator/high , dipped beam/parking
1 0 Fresh air vent
vehicles without airbag)
light/headlight flasher stalk 11 Centre vent lever 22 Ignition/starter switch/steering lock
3 Left-hand instrument cluster/coolant
12 Hazard warning light switch
23 Wiper/washer stalk
temperature and fuel gauge displays 13 Exterior temperature display (968 CS: Clock) 24 Windscreen wiper interval adjusting
4 Speedometer 14 Cigarette lighter
knob
5 Central warning light,
15 Glove compartment lock
25 Rear window heating switch
direction indicator pilot light
16 Rear lid release
26 Recirculating air switch/defroster switch
6 Tachometer 17 Engine compartment lid release 27 Blower switch
7 High beam pilot light
18 Fog light switch
28 Slide control for air distribution, top/bottom
8
Right-hand instrument cluster/oil pressure
19 Rear fog light switch/instrument
29 Temperature selector knob
gauge and voltmeter
illumination adjustment knob
30 Air conditioner/recirculating air switch
20 Light switch
31 Interior temperature sensor
26
-
~
