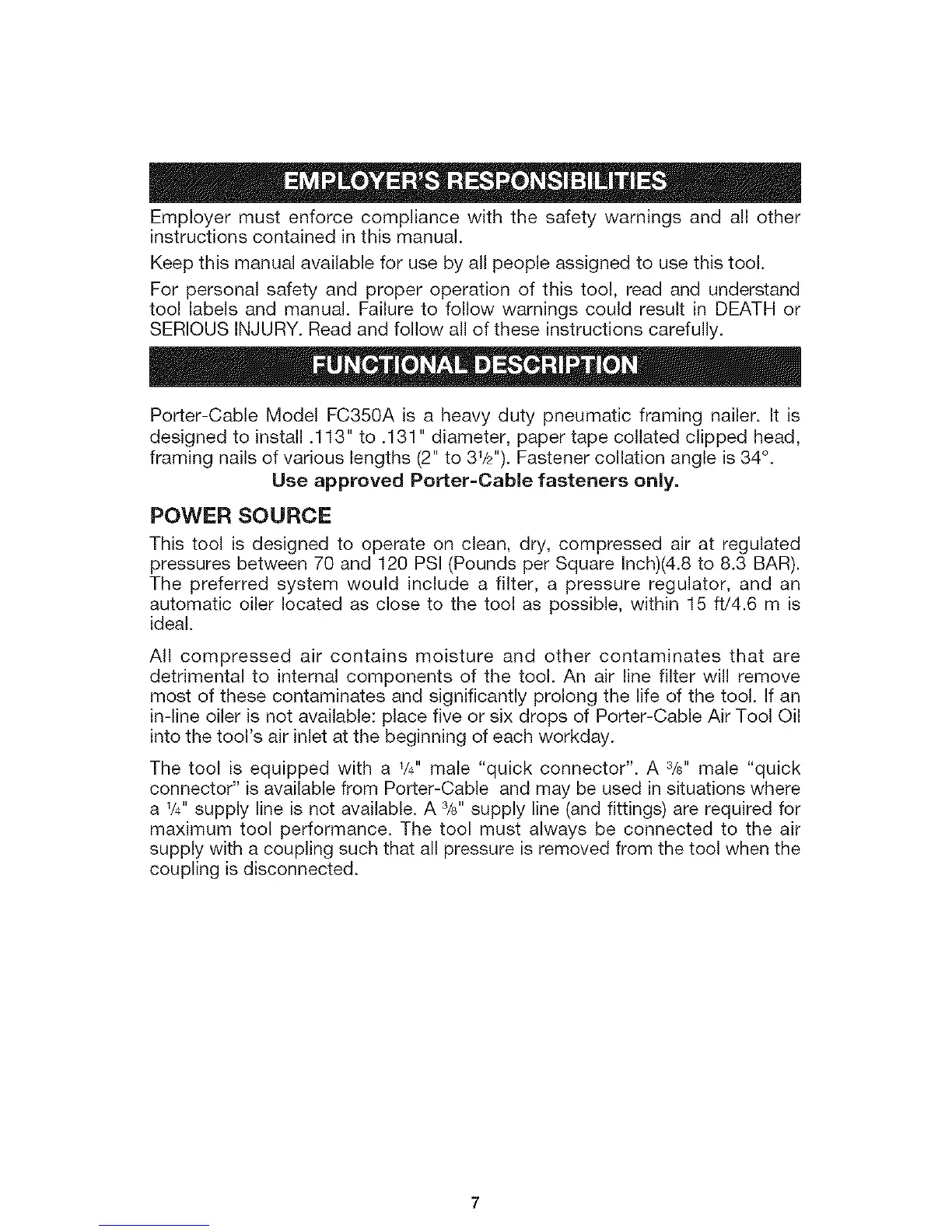

Employermustenforcecompliancewiththesafetywarningsandallother
instructionscontainedinthismanual.
Keepthismanualavailableforusebyallpeopleassignedtousethistool.
Forpersonalsafetyandproperoperationofthistool,readandunderstand
toollabelsandmanual.FailuretofollowwarningscouldresultinDEATHor
SERIOUSINJURY.Readandfollowalloftheseinstructionscarefully.
Porter-CableModelFC350Aisa heavydutypneumaticframingnailer.Itis
designedtoinstall.113" to .131" diameter, paper tape collated clipped head,
framing nails of various lengths (2" to 31/2"). Fastener collation angle is 34° .
Use approved Porter-Cable fasteners only.
POWER SOURCE
This tool is designed to operate on clean, dry, compressed air at regulated
pressures between 70 and 120 PSI (Pounds per Square Inch)(4.8 to 8.3 BAR).
The preferred system would include a filter, a pressure regulator, and an
automatic oiler located as close to the tool as possible, within 15 ft/4.6 m is
ideal.
All compressed air contains moisture and other contaminates that are
detrimental to internal components of the tool. An air line filter will remove
most of these contaminates and significantly prolong the life of the tool. If an
in-line oiler is not available: place five or six drops of Porter-Cable Air Tool Oil
into the tool's air inlet at the beginning of each workday.
The tool is equipped with a 1/4"male "quick connector". A %" male "quick
connector" is available from Porter-Cable and may be used in situations where
a 1/4"supply line is not available. A %" supply line (and fittings) are required for
maximum tool performance. The tool must always be connected to the air
supply with a coupling such that all pressure is removed from the tool when the
coupling is disconnected.
