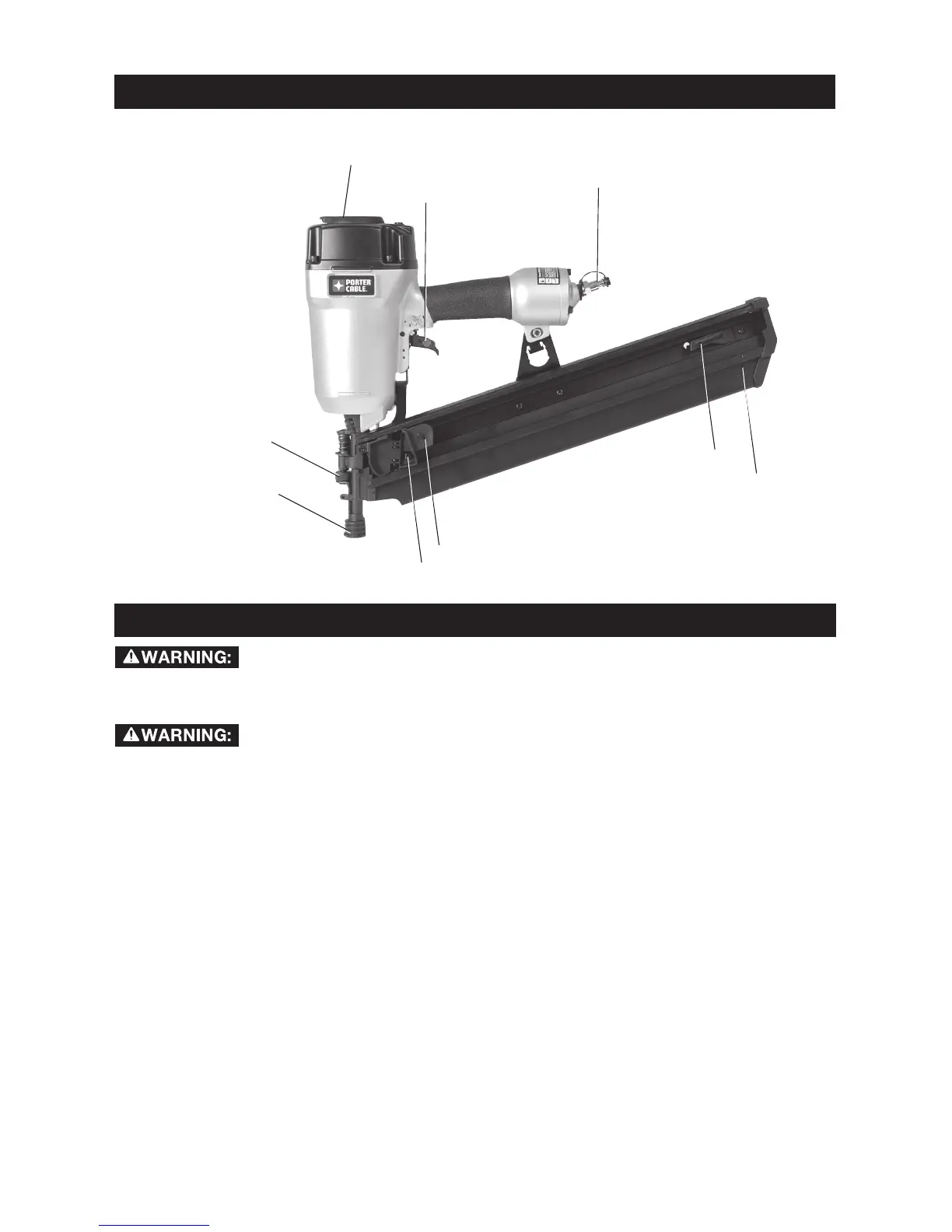

TOOL PARTS
A
F
G
C
B
E

A. Exhaust deflector
B. Selectable trigger
C. Air Inlet with quick
connect coupler
D. Magazine
E. Nail follower
F. Safety contact trip
with No-mar pad
G. Depth adjustment
wheel
H. Pusher release
I. Pusher
H
D
I
ASSEMBLY


TRIGGER
Keep fingers AWAY from trigger when not driving fasteners to avoid
accidental firing. Never carry tool with finger on trigger. In bump action mode (contact
actuation mode) tool will fire a fastener if safety is bumped while trigger is depressed.
The FR350A is equipped with a selectable trigger. This trigger allows the operator to select
either single sequential action trigger mode or bump action trigger mode. In accordance
with the ANSI Standard SNT-101-2002, the trigger is assembled in the single sequential
action trigger mode. To change the trigger mode, see Actuating Tool instructions in the
Operation section of the manual.
IMPORTANT: A trigger, which will limit the tool to   only, is
availablefree-of-chargebycalling1-800-321-9443intheUnitedStatesandCanada
or 001-731-660-9374 outside the United States and Canada, and providing tool
model number, type, serial number, etc. For identification purposes: the 
actuation trigger is red.
AIR FITTING
Thetoolisequippedwitha1/4"(6.4mm)malequickconnectorcoupling.A3/8"(9.5mm)
male quick connector coupling is available from PORTER-CABLE and may be used when
a 1/4" (6.4 mm) supply line is not available.
