Porter-Cable PCC780 - Continued Assembly and Adjustments; Blade and Splash Hood Installation; Edge Guide Installation

ENGLISH
8

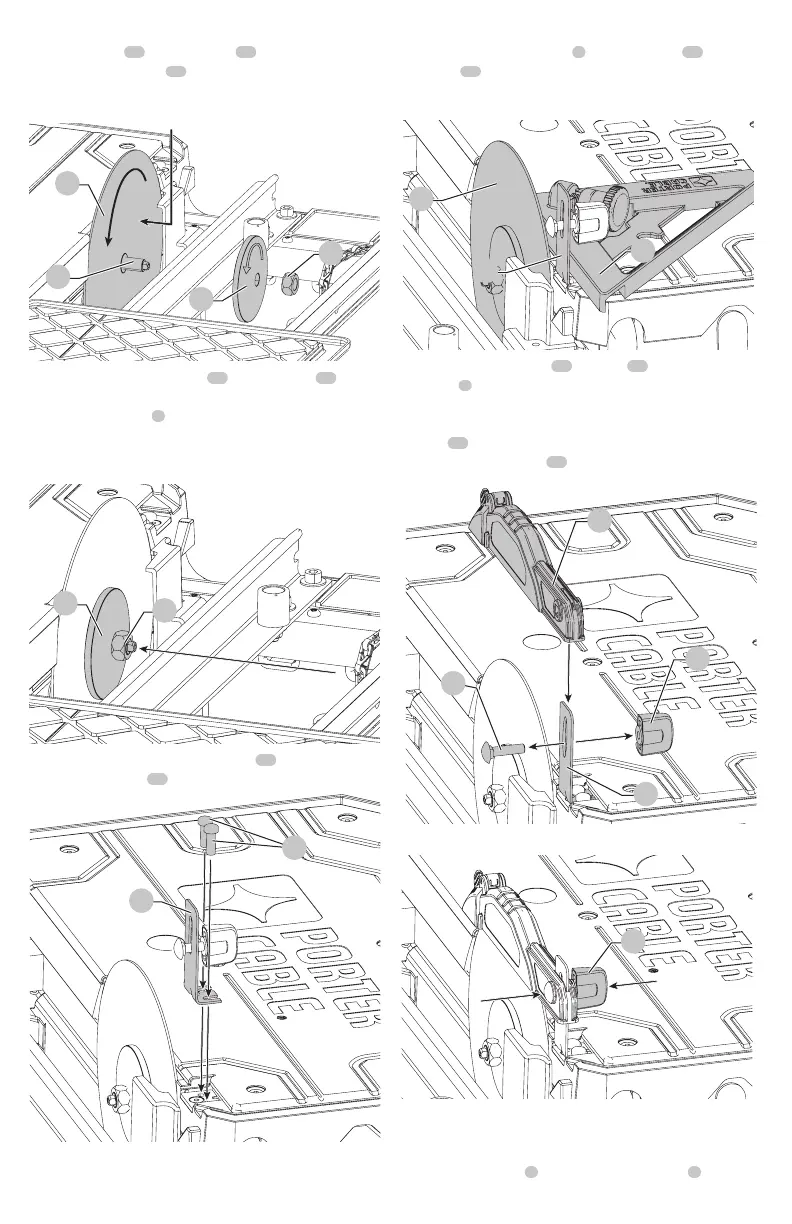

3. Install blade
13
onto the arbor
14
. Ensure the blade
is fully on the arbor
14
and fitted with the rotational
direction matches the direction of thewasher.
Fig. D
13
14
15
16
4. Install outer clamp washer
15
and blade nut
16
. While
holding blade in place, fully tighten blade nut with
supplied wrench
4
.
NOTE: Do not overtighten. Make sure the tile blade is
secure beforeuse.
15
Fig. E
16
5. Loosely install splash hood bracket
17
using the two
supplied screws
18
.
Fig. F
18
17
6. Use supplied edge guide
7
to align bracket
17
and
blade
13
as shown in Figure G. Once bracket is aligned,
fully tighten hood bracketscrews.
Fig. G
13
7
17
7. Remove carriage bolt
19
and nut
20
from splash
hood
5
and install splash hood onto the splash hood
bracket. Insert carriage bolt through both the splash
hood and bracket. Install and loosely tighten the
nut
20
. Adjust the height for your specific application.
Fully tighten the nut
20
.
Fig. H
20
19
5
17
Fig. I
20
To Attach The Edge Guide (Fig. J)
The edge guide can be installed 1 of 2 ways, 45° or 90°.
1. Place edge gude
7
on the cutting cart fence
9
..
