Hardware Configuration
RUBY-D716VG2AR User’s Manual 2-2

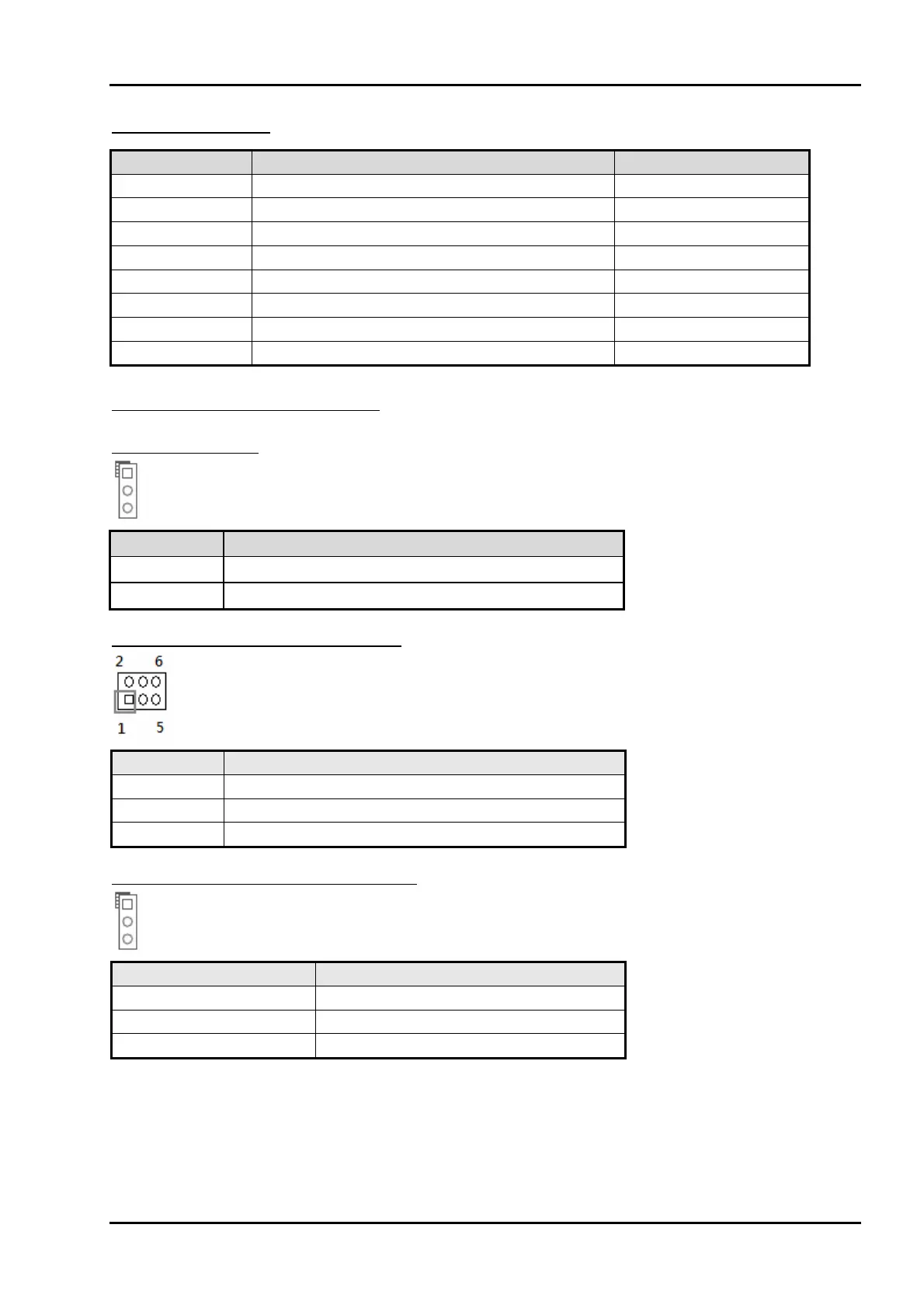

Jump Function List
Jump Function Remark
JP1 Clear CMOS PH3Px1/2.54mm
JP2 COM Port1 RI POWER Select Header3Px2/2mm
JP3 CONFIG / RECOVERY JUMPER PH3Px1/2.54mm
JP4 Watch Dog Time Disable/Enable PH2Px1/2.54mm
JP5 ATX & AT mode PH2Px1/2.54mm
JP6 GPIO Out Level PH3Px1/2.54mm
JP8 PCI Express* Bifurcation r Header2Px2/2.54mm
JP11 COM Port6 mode Select Header11Px2 2mm
Pin Assignments of Connectors
JP1: Clear CMOS
PIN No. Signal Description
1-2, Short Normal Ì
2-3, Short Clear CMOS
JP2: COM Port1 RI POWER Select
PIN No. Signal Description
1-2, Short 5V
3-4, Short RI Ì
5-6, Short 12V
J3: CONFIG / RECOVERY JUMPER
PIN No. Signal Description
1-2, Short NORMAL Ì
2-3, Short CONFIGURE
JUMPER REMOVED RECOVERY
